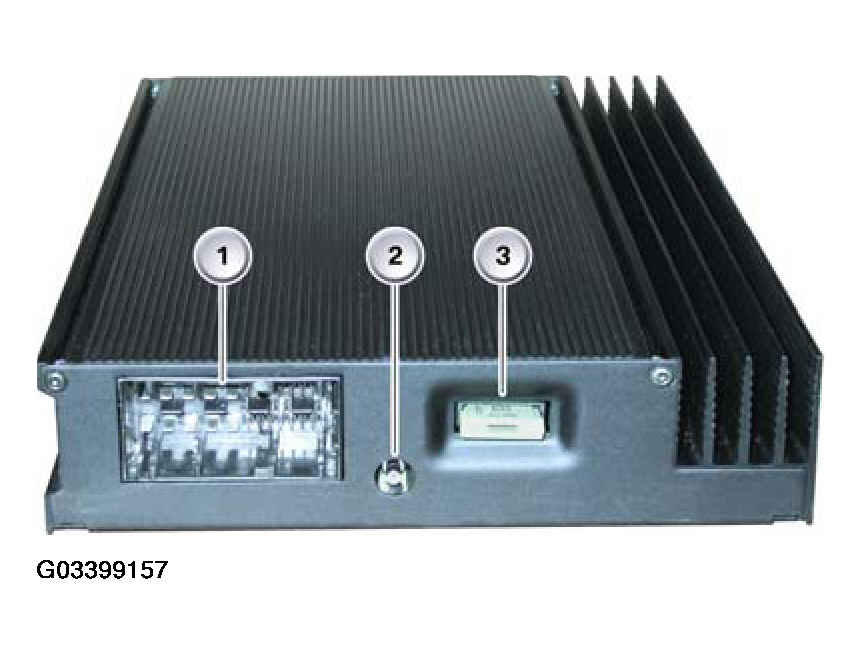

Top HiFi Amplifier
A fuse is added to the familiar Carver Top HiFi amplifier from the E85 but is otherwise installed in the E83 without further modifications.
However, special Carver woofers with increased cone excursion are used in the E83. The space available in the E83 and the resonance volume in the side sill enables the use of the central bass principle.
The central woofers in the Top HiFi audio system are simply adapted to the increased voltage level of the bass end levels (8 Ohm impedance). The amplifier delivers 6 x 20 watts, 2 x 40 watts and 2x100 watts.
