Principle of Operation: Notes

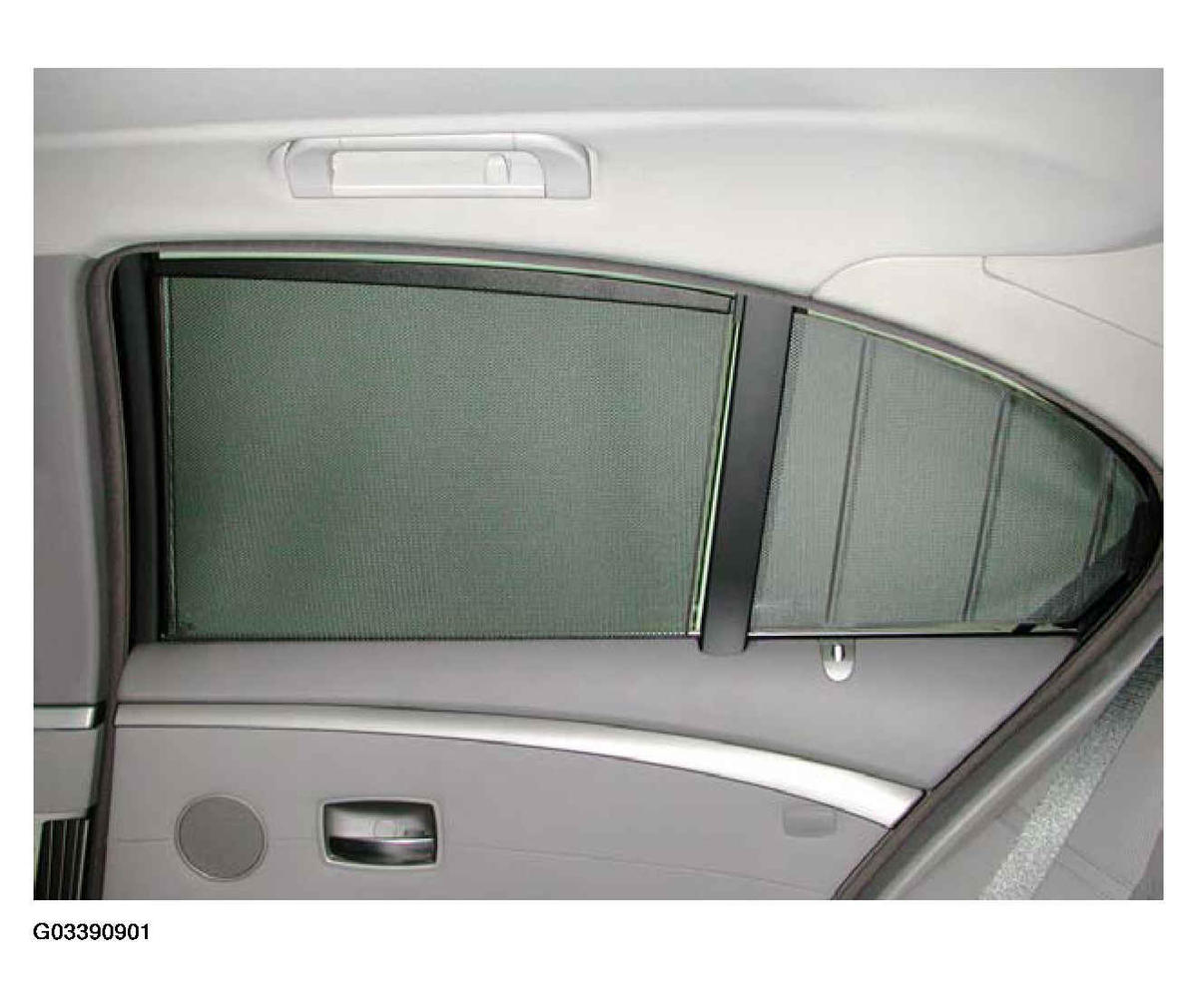

To protect the customer against trapping, the side-window roller blinds can only be raised when the side window is closed. The system regards the side window as "closed" up to a maximum opening of 10 mm.
- It is always possible to lower the side window roller blinds, even when the window is open.
- It is always possible to lower the window glass, even when the side-window roller blind is up.
When the window is open and a command to raise the side-window roller blind is sent, the side-window roller blind starts up briefly and reverses. This indicates that an invalid operation has been attempted. The roller sun blind cannot be raised until the customer closes the window. It is always possible to operate the quarter roller blind, irrespective of the side window position.
Briefly pressing or holding down the control buttons for the side and rear-window roller blinds initiates an automatic movement of the roller sun blinds as far as the top or bottom stop.
The left/right slide switches on the rear switch blocks are used to select whether the roller sun blinds and the side window on the left or right hand side are to be operated.
Holding down the rear window roller blind switch activates a special function, which activates the rear-window roller blind immediately. After 750 ms, all rear-compartment roller sun blinds move in the same direction as the rear-window roller blind.
For example, when the rear-window roller blind is down, both the rear-window roller blind and the rear-compartment roller sun blinds move upwards when the button is held down.
The manual, one-touch and convenience open/close features correspond to the previous models.
The following operations are new to the E65 SHD:
