Vehicle Bus Interface: Notes

The communication with the vehicle electronics is via the K-CAN-S connection.

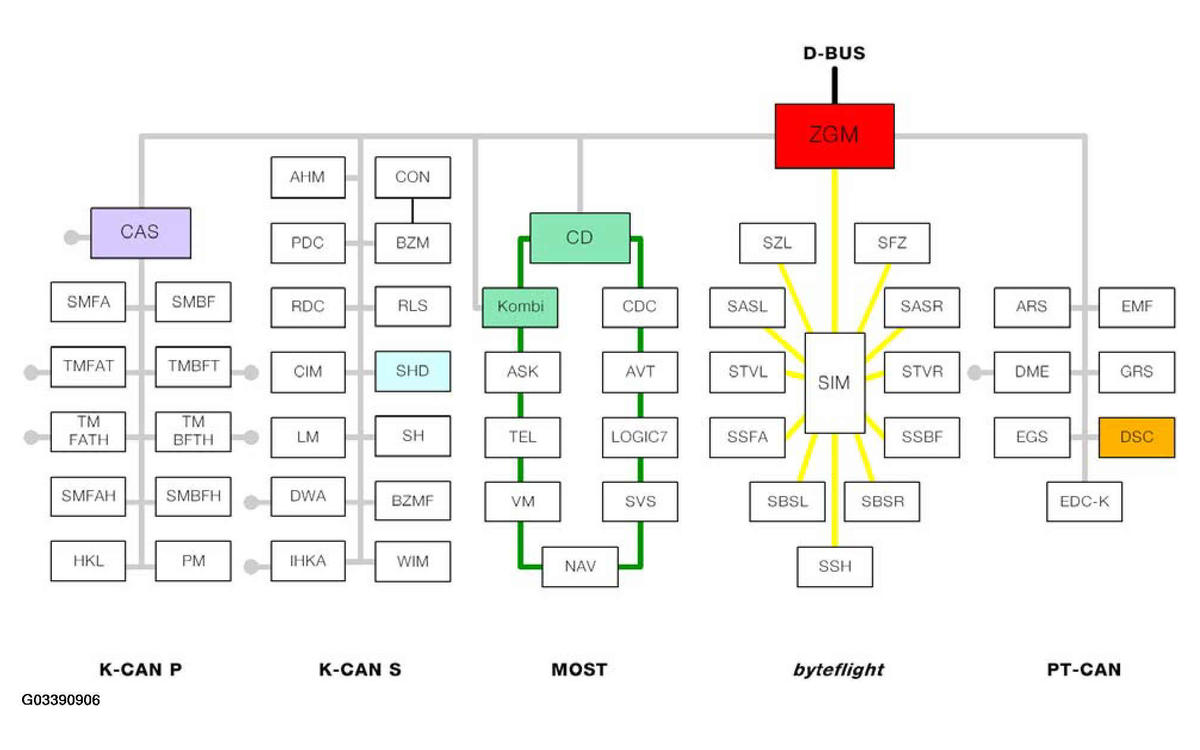

Fig 1: Identifying Vehicle Bus Interface

G03390906

Courtesy of BMW OF NORTH AMERICA, INC.
