Trunk Lock Actuator And Soft Close Drive Assembly

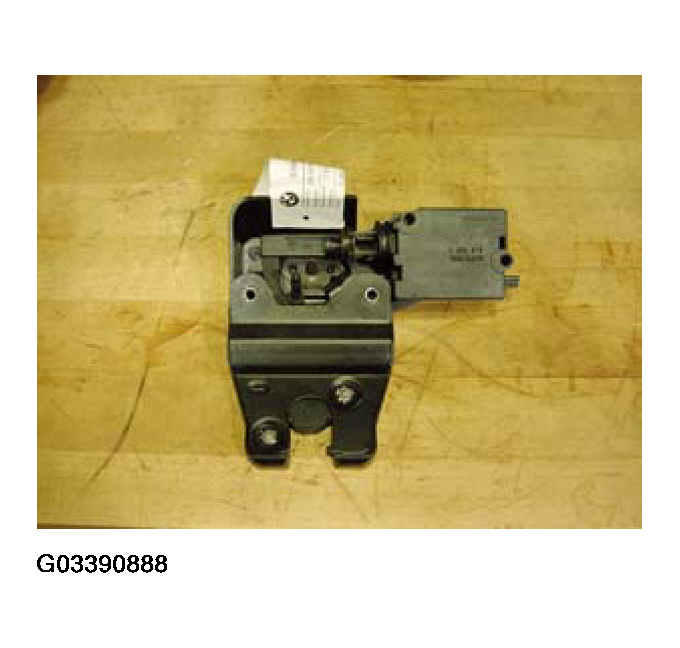

The trunk lock and trunk lock actuator are two separate components. The lock actuator is controlled by the PM and contains a micro-switch to signal the lock status of the trunk. This input is sent via the K-CAN-P to the CAS for the monitoring of the trunk (e.g. DWA, CC)
The signal is also an input to the PM to run the soft close motor and to control the trunk lights.

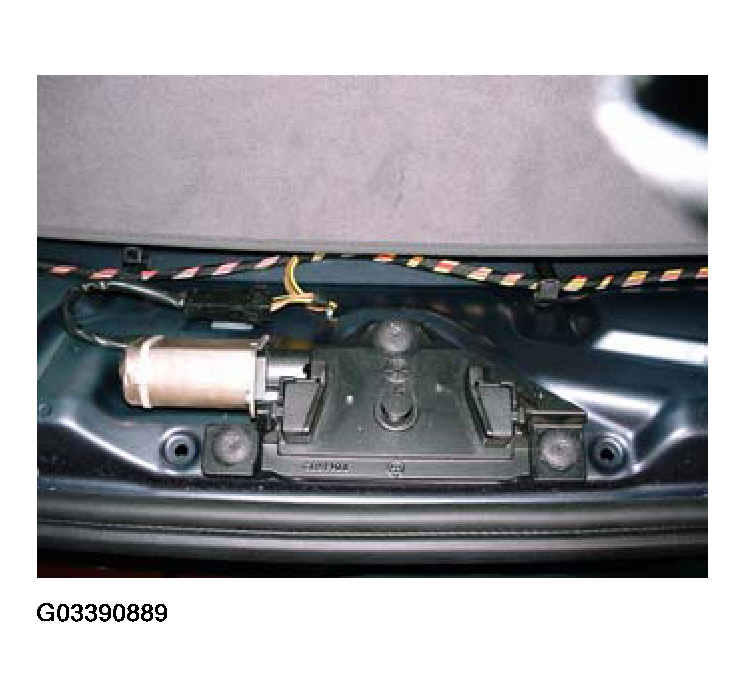

The soft close motor is carried over from the E38. It contains an internal micro-switch to signal the PM that the motor has completed 1800 of rotation.
