Dimensions in mm

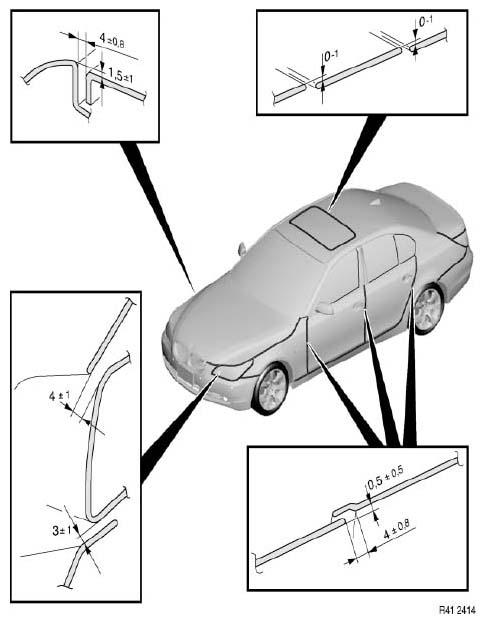

Fig 1: Front View Exterior Body Gap Dimensions And Measurement Points
Courtesy of BMW OF NORTH AMERICA, INC.

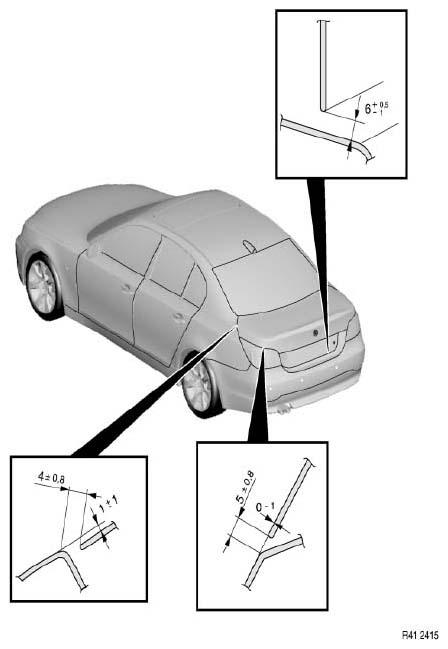

Fig 2: Rear View Exterior Body Gap Dimensions And Measurement Points
