Air Supply Unit (LVA)

The air supply unit is located in the spare tire recess and consists of the following components:

• Protective cover with internal acoustic insulation
• Lid
• Rubber-mounted component carrier
• Compressor Unit
• Compressor Relay (Replaceable)
• Solenoid Valve Block

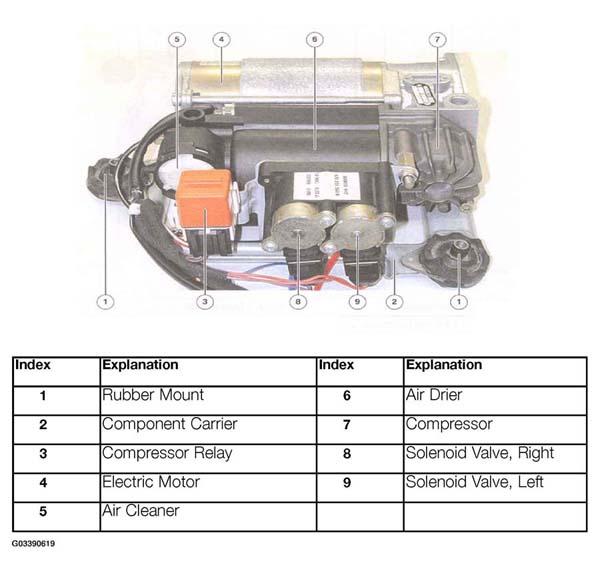

  Fig 1: Identifying Air Supply Unit

  Courtesy of BMW OF NORTH AMERICA, INC.

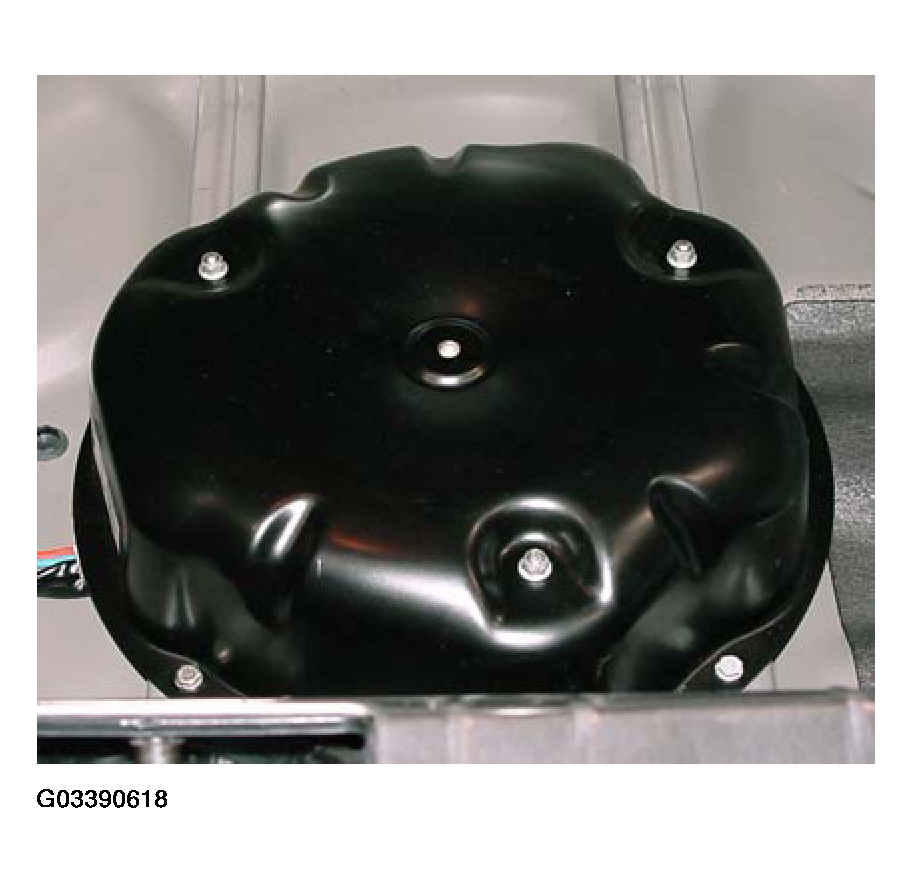

  Fig 2: Identifying Air Supply Unit, Single Axle Air Suspension

  Courtesy of BMW OF NORTH AMERICA, INC.
