12 14 513 Replacing pulse generator on right exhaust camshaft (N62)

(cylinder bank 1 to 4)

Switch off ignition.

Remove acoustic cover.

Remove right ignition coil cover.

Unlock and detach plug connection (1).

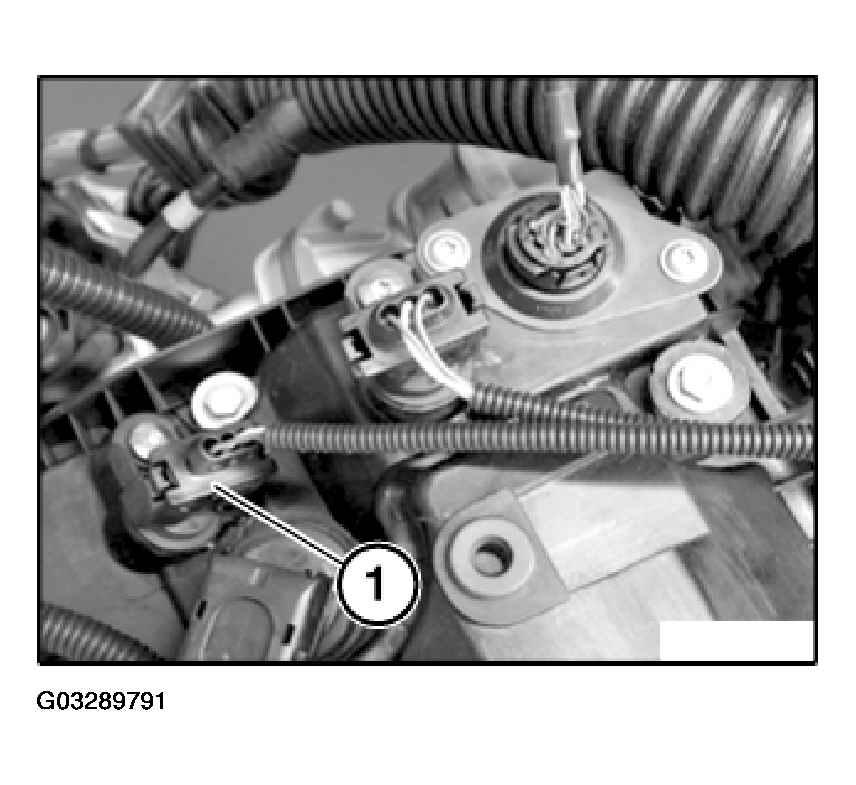

Fig 1: Detaching Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw.

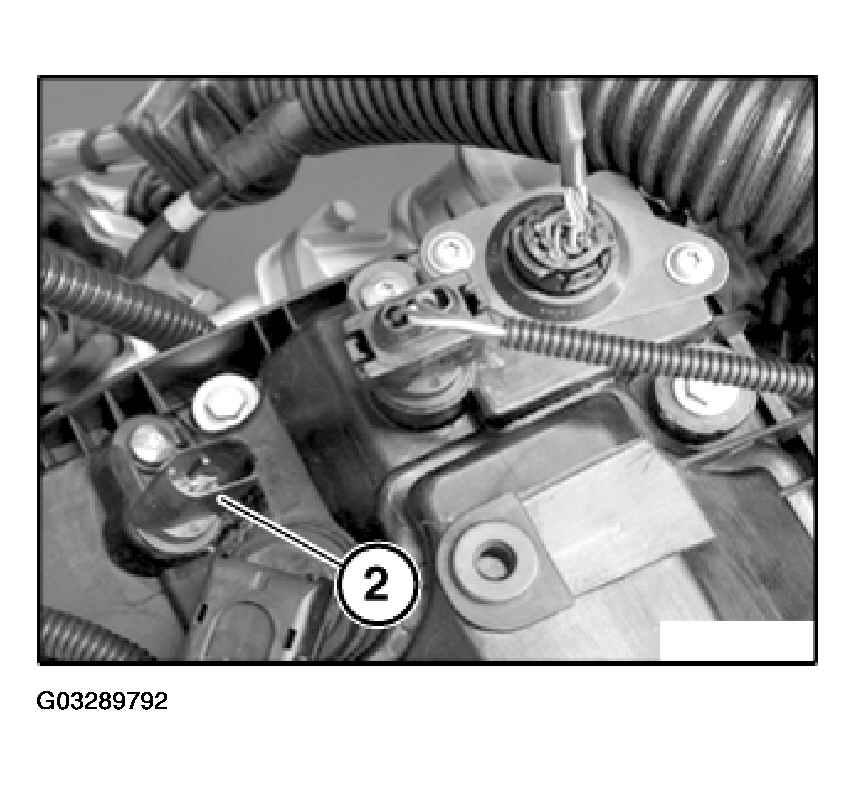

Fig 2: Removing Pulse Generator

Courtesy of BMW OF NORTH AMERICA, INC.

Remove pulse generator (2).

Installation:

Replace sealing ring and coat with anti-friction rubber coating.

NOTE: Interrogate fault memory of DME control unit.
Check stored fault messages.
Rectify faults.
Now clear the fault memory.
