12 61 280 Removing and installing/replacing oil pressure switch (N62)
Necessary preliminary tasks:
- Switch off ignition
WARNING:
Scalding hazard! Only perform this task on an engine that has cooled down.
Installation location:
Cylinder bank 1 to 4 on cylinder head, front right.
Engine oil may emerge when oil pressure switch is replaced; have a cleaning cloth ready.

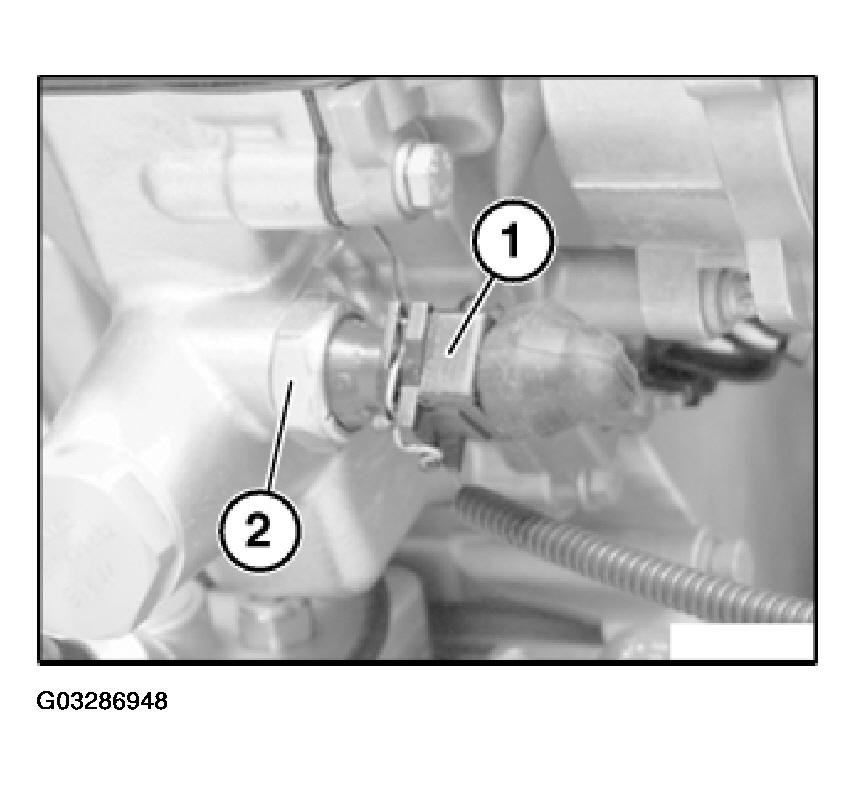

Unlock and detach plug connection (1).
Unscrew oil pressure switch (2).
Tightening torque, refer to 12 61 1AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .
Installation:
Check engine oil level, top up engine oil if necessary.
