12 51 150 Removing and installing/replacing wiring harness section for fuel injectors on left or right (N62)

Necessary preliminary tasks:

Follow instructions for disconnecting and connecting battery, refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
Disconnect battery negative lead from battery and lay to one side
Remove acoustic cover
Remove ignition coil cover

NOTE: The procedure is identical for both sides.

Illustrations show and descriptions refer to the left side.

Unfasten screws.

Unlock plug (1) and remove.

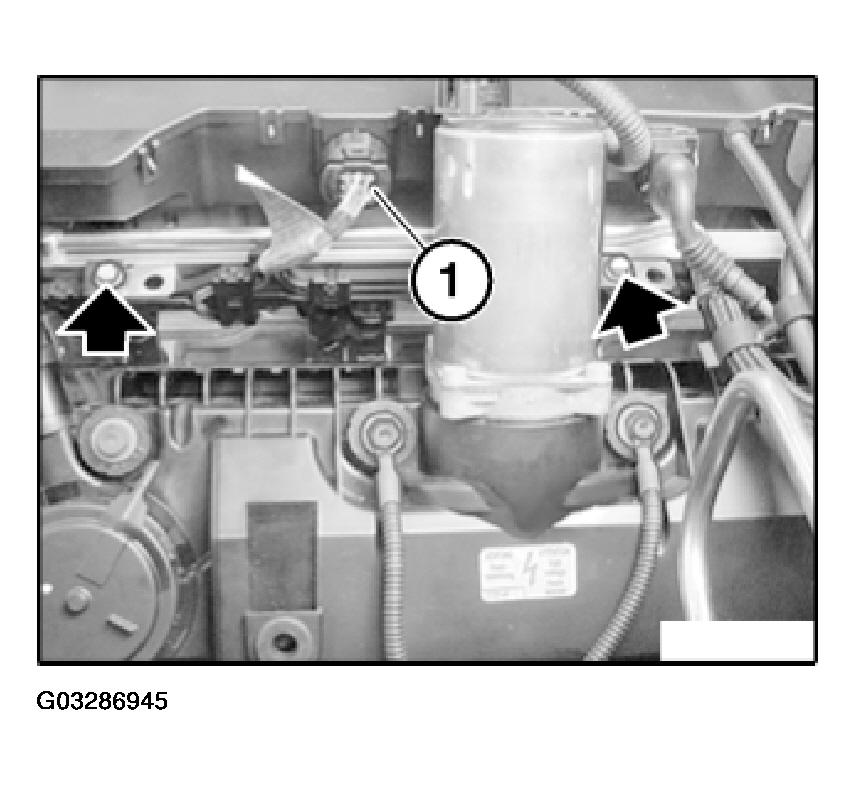

Fig 1: Unlocking Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Remove positioning motor for eccentric shaft.

Unlock plugs on fuel injectors and disconnect.

Remove wiring harness.

Check function of DME.
