System Overview (E60, E61, E63, E64 Before 09/2005)

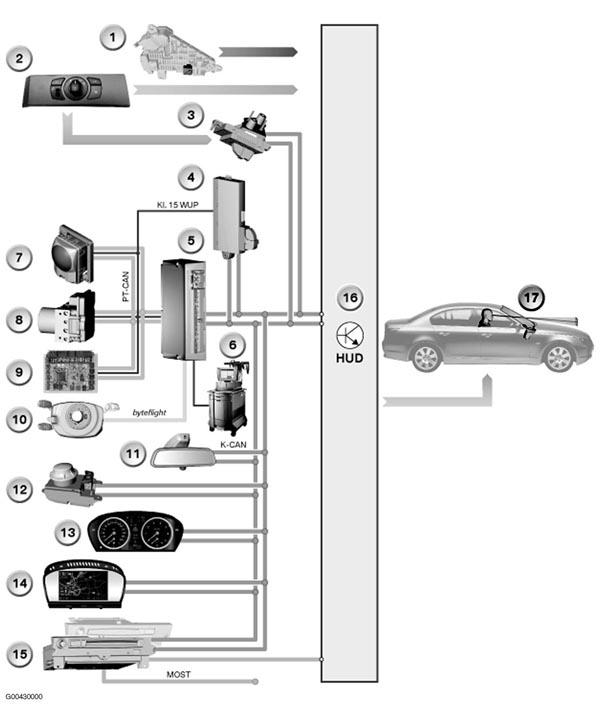

Fig 1: HUD Inputs/Outputs (Models Before 09/2005)

Courtesy of BMW OF NORTH AMERICA, INC.

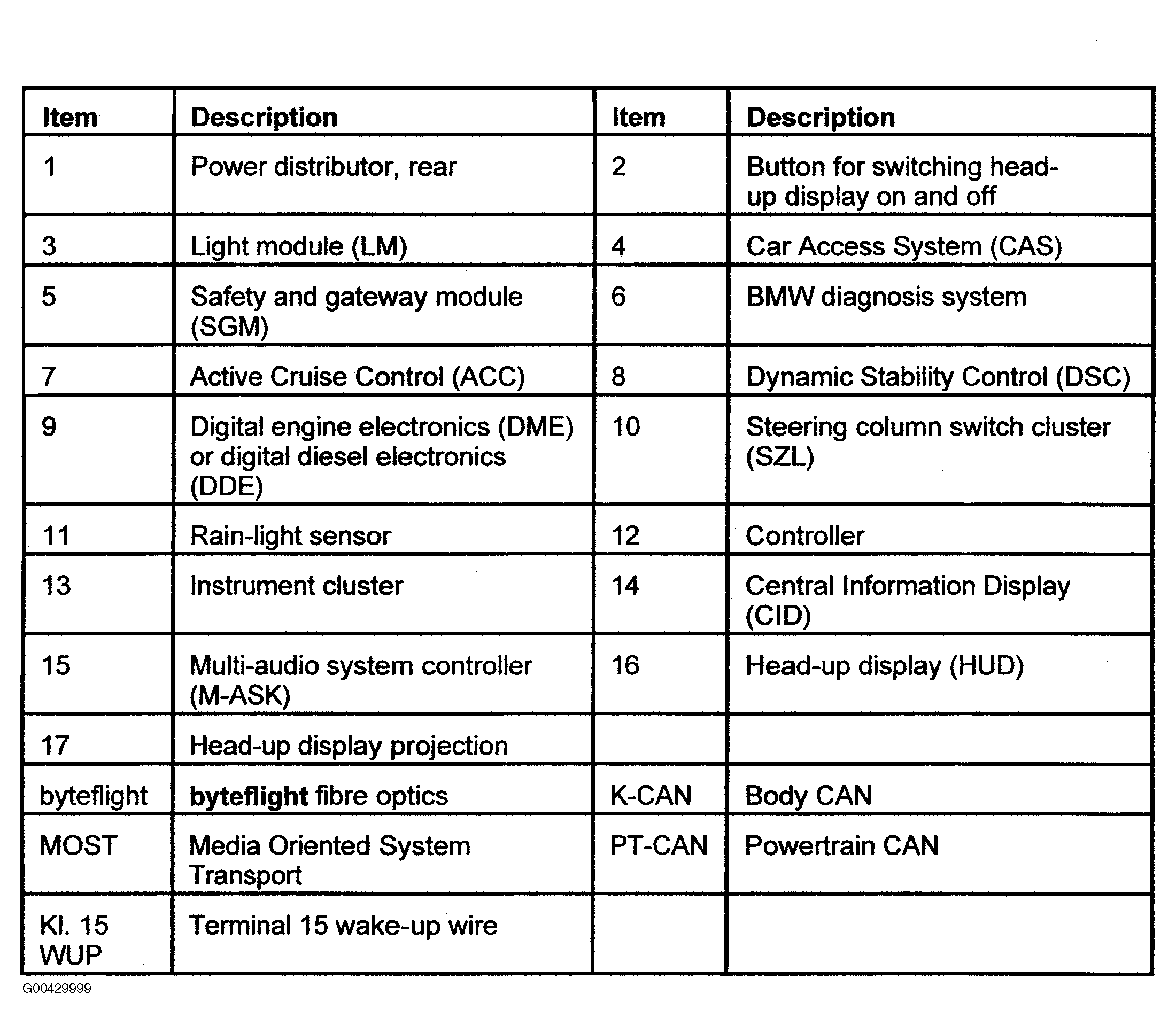

Fig 2: Legend For HUD System Inputs/Outputs (Models Before 09/2005)

Courtesy of BMW OF NORTH AMERICA, INC.

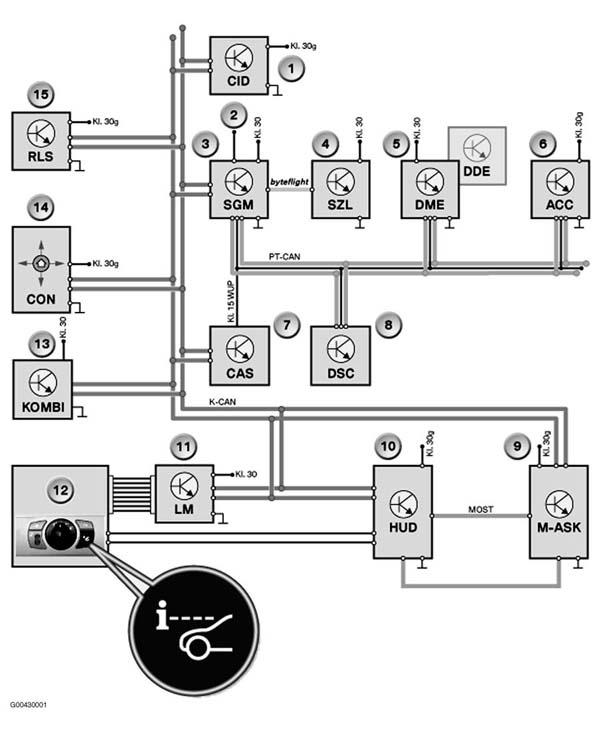

Fig 3: HUD System Circuit Diagram (Models Before 09/2005)

Courtesy of BMW OF NORTH AMERICA, INC.

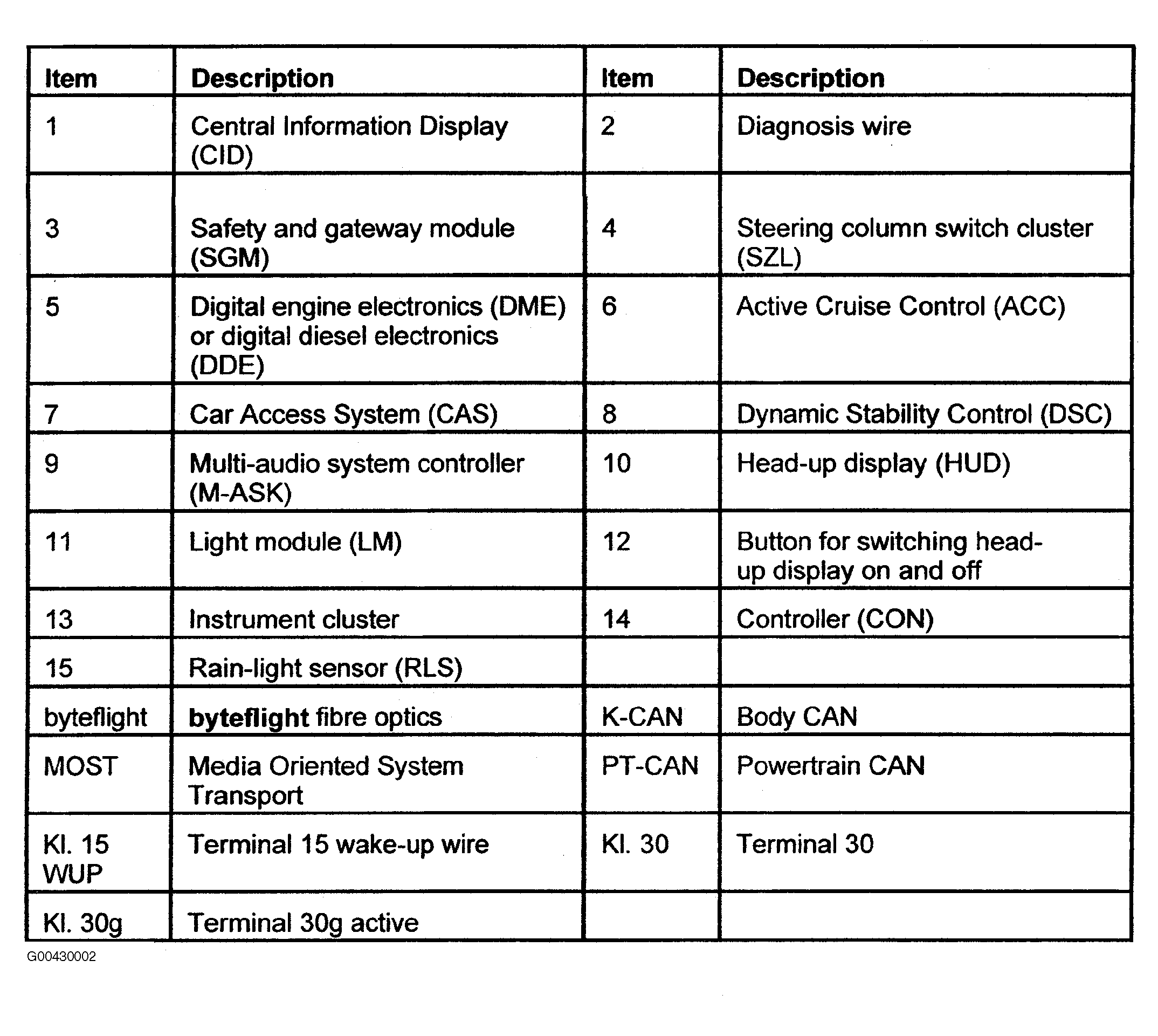

Fig 4: Legend for HUD System Circuit Diagram (Models Before 09/2005)

Courtesy of BMW OF NORTH AMERICA, INC.
