Setting Head-Up Display (Adjustment)

There is a 2-piece adjustment tool (62 11 20) for setting the head-up display.

62 11 20 consists of:

Projection gauge (62 11 21)
Adjustment spanner (62 11 22)

NOTE: The central information display must be removed to adjust the head-up display.

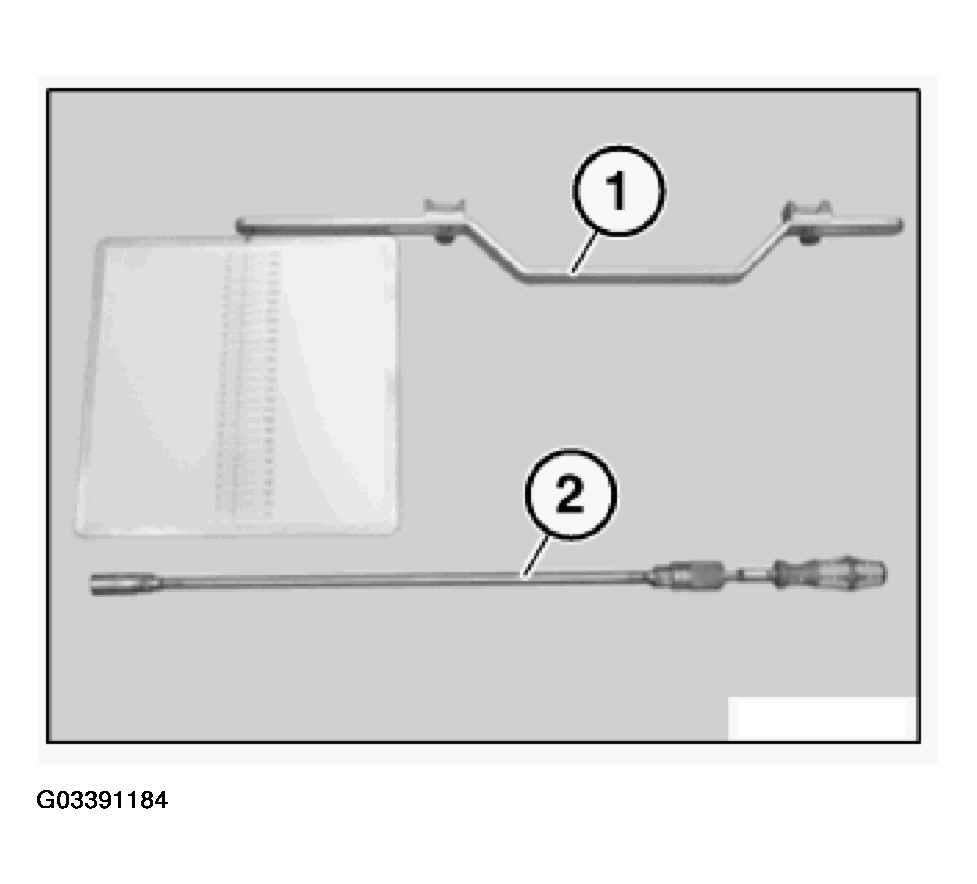

Fig 1: Identifying Projection Gauge (62 11 21) And Adjustment Spanner (62 11 22)

Courtesy of BMW OF NORTH AMERICA, INC.

To access the head-up display adjusting screw with the adjustment tool, the CID must be removed.

Access to the flexible shaft is also only possible once the CID has been removed.

The projection gauge is engaged on the retainers of the sun visors.

With the DISplus or GT-1, the test pattern for setting is called up and projected by the projection display through the windshield and onto the scale of the projection gauge.

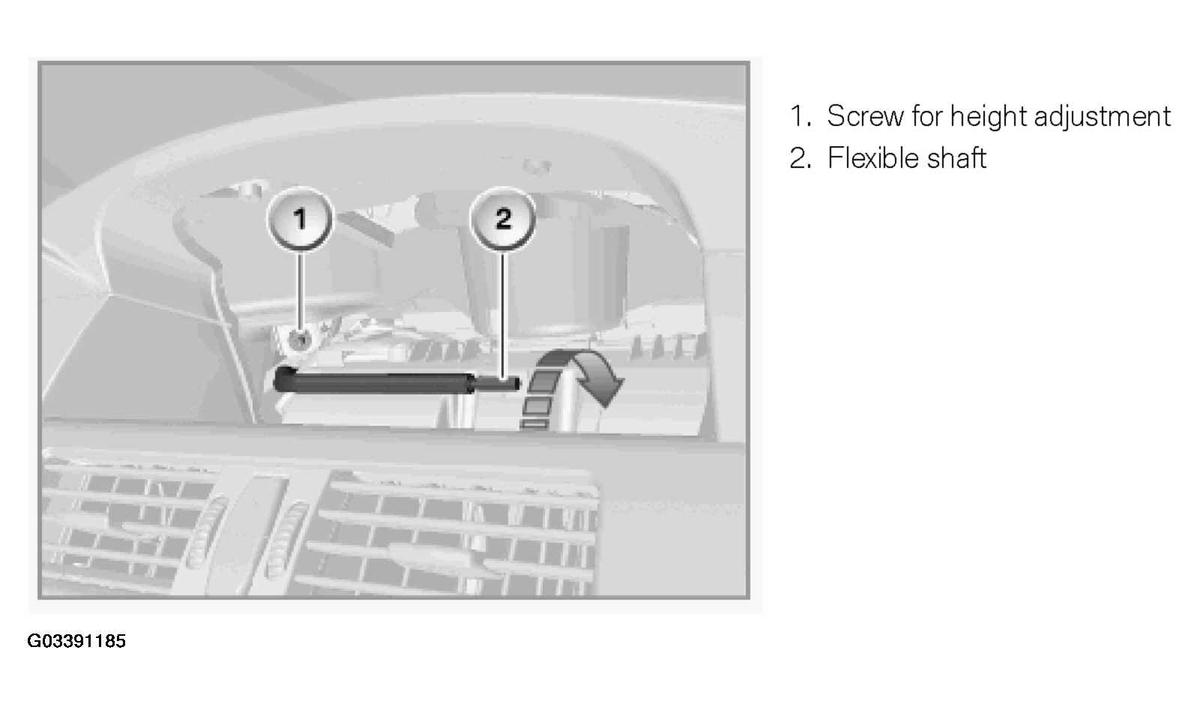

Fig 2: Identifying Flexible Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

The head-up display can only be adjusted vertically using the adjustment spanner on the adjusting screw.

If the projected image is not level, this can be corrected by manually turning the projection display with the flexible shaft (as of 12/2003).

Important. Rotate the flexible shaft in a clockwise direction only!

Rotate the flexible shaft in a clockwise direction only, as otherwise the display adjustment may break.
