61 20 900 Disconnecting and connecting battery negative lead
WARNING:
Observe safety instructions for handling vehicle battery. Refer to 61 00 ... SAFETY INSTRUCTIONS FOR HANDLING VEHICLE BATTERY . Follow instructions for disconnecting and connecting battery. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
Necessary Preliminary Tasks:
- Remove battery cover or open right luggage compartment trim panel. Refer to 51 47 220 REMOVING AND INSTALLING/REPLACING TRUNK TRIM PANEL ON RIGHT SIDE PANEL

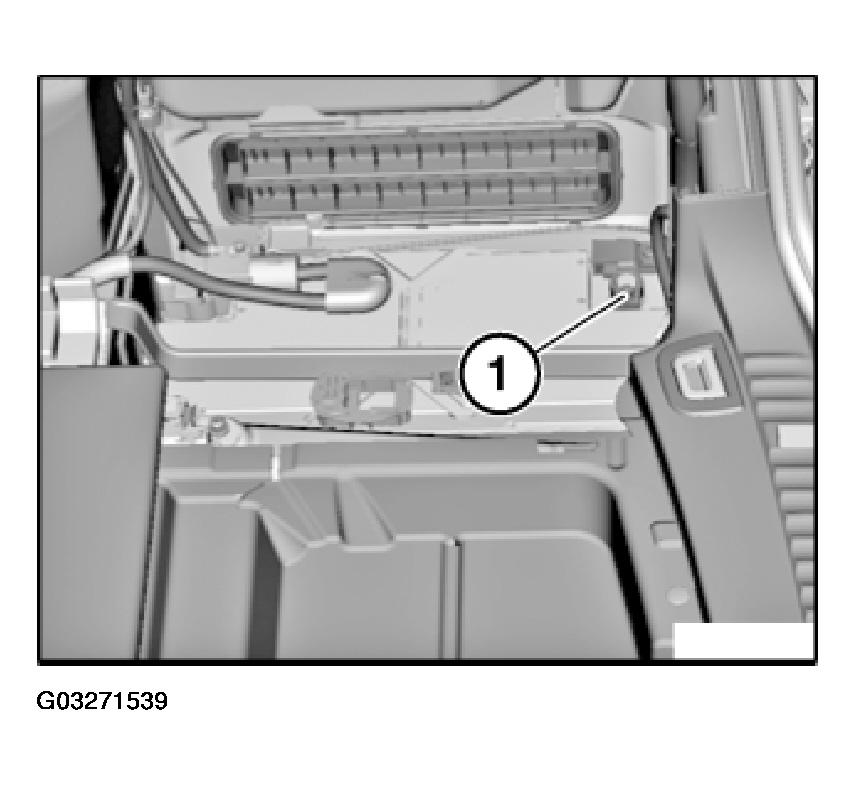

Disconnect battery negative leads (1).
IMPORTANT:
Cover battery negative terminal post and secure negative lead (1) at side.
Tightening torque, refer to 61 21 1AZ in GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUE - E60 .
