13 54 250 Replacing air intake hose (between airmass flow sensor and throttle valve assembly) (N62)
Necessary Preliminary Tasks:
- Switch off ignition.
- Remove acoustic cover.

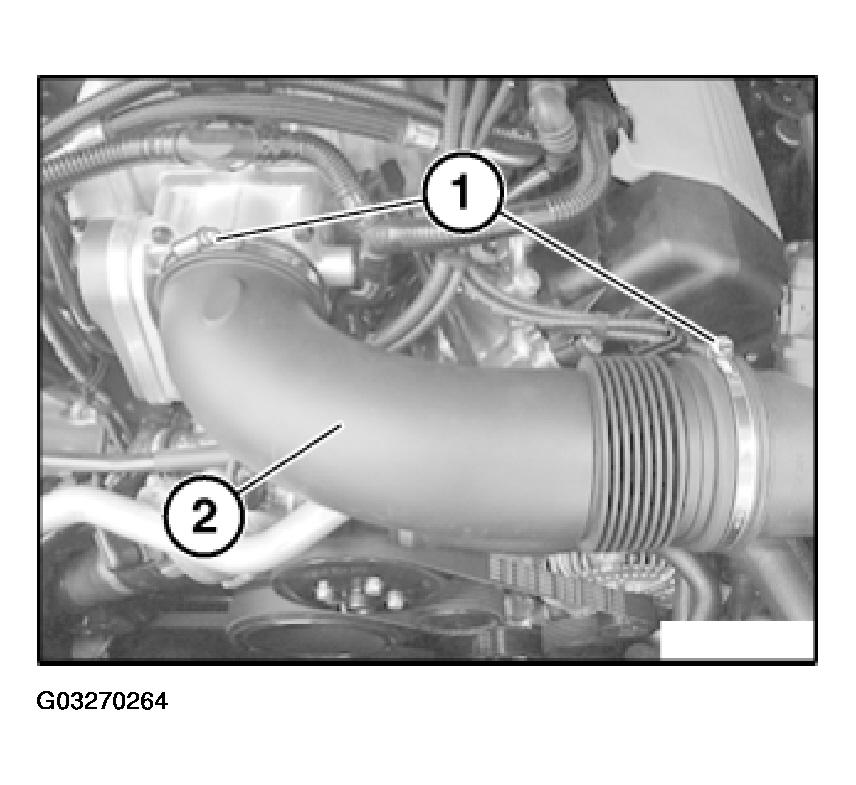

Loosen hose clamps (1).
Detach air-mass flow sensor (2) from throttle valve assembly.
Detach air intake hose (2) from air-mass flow sensor.
Installation:
Check sealing rings for damage, replace if necessary.
