11 33 517 Removing and installing/replacing rocker arms on right inlet side (N62 from 9/03 and N62TU)

NOTE:

For Special Tool identification, see ENGINE- SPECIAL TOOLS - 5-SERIES (E60) .

Special Tools Required:

11 9 470
11 9 473

(Cylinder Bank 1 To 4)

Necessary Preliminary Tasks:

Removal of rocker arms is described separately from installation.
Remove servomotor for right eccentric shaft. Refer to 11 37 024 REMOVING AND INSTALLING/REPLACING SERVOMOTOR FOR RIGHT ECCENTRIC SHAFT (N62/N62TU) .
Remove ignition coils on cylinder bank 1 to 4.
Remove right cylinder head cover. Refer to 11 12 006 REMOVING AND INSTALLING/SEALING RIGHT CYLINDER HEAD COVER (N62/N62TU) .
Remove spark plugs on cylinder bank 1 to 4.
Install inlet and exhaust adjustment unit on right side. Refer to 11 36 048 REMOVING AND INSTALLING/REPLACING INLET AND EXHAUST ADJUSTMENT UNITS ON RIGHT SIDE (N62/N62TU) .

IMPORTANT: The inlet camshaft must first be rotated so that when the bearing bracket is removed the intermediate levers do not slip out and damage the camshaft.

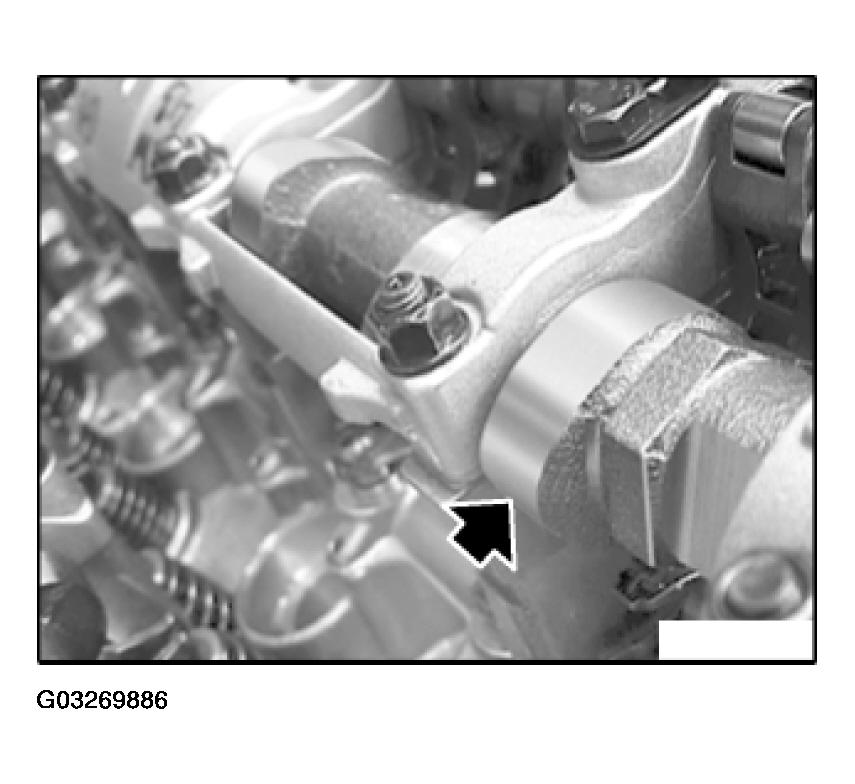

Rotate inlet camshaft in direction of rotation until cam on 1st cylinder is positioned horizontally as shown in illustration.

Fig 1: Aligning Cam On 1st Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Camshaft bearing caps of cylinders 1 to 4 and 5 to 8 must not be mixed up.

NOTE: Bearing caps of inlet camshaft are marked on cylinder bank 1 to 4 with L E1 to L E5 from inlet side.

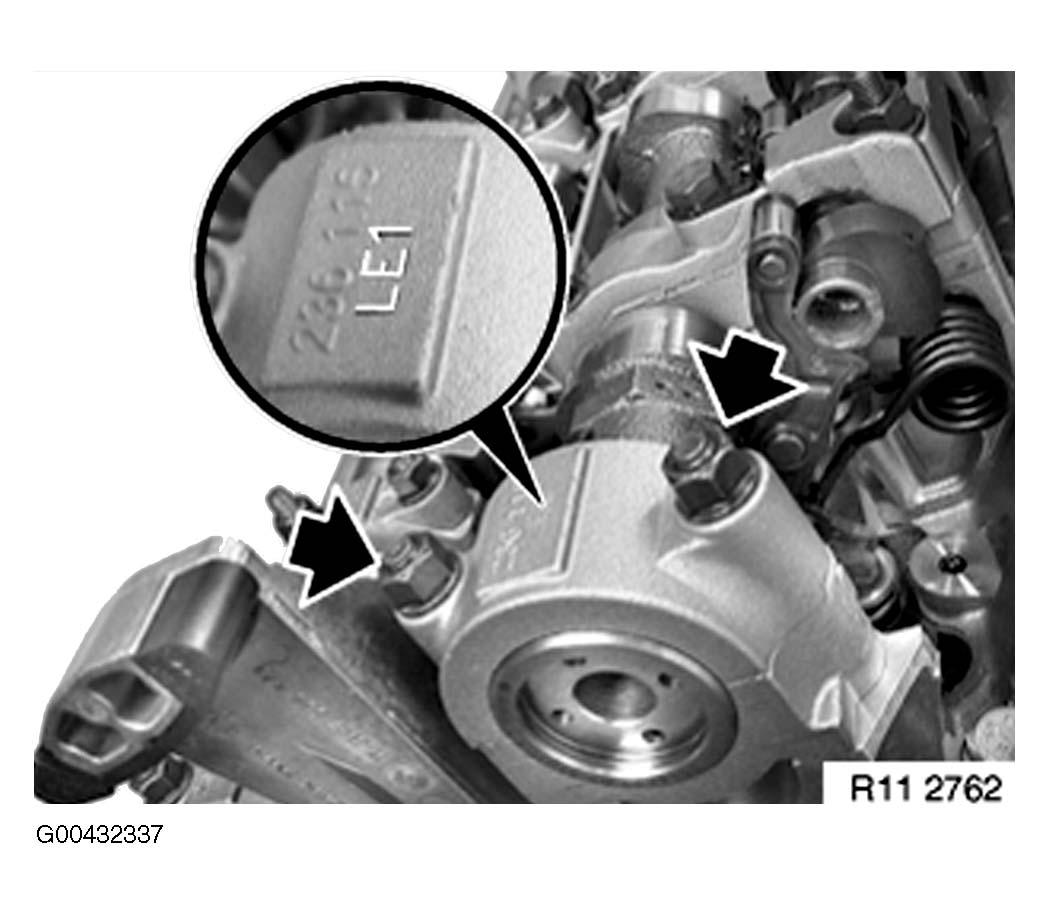

Release nuts and remove bearing cap L E1.

Fig 2: View Of Bearing Cap L E1

Courtesy of BMW OF NORTH AMERICA, INC.

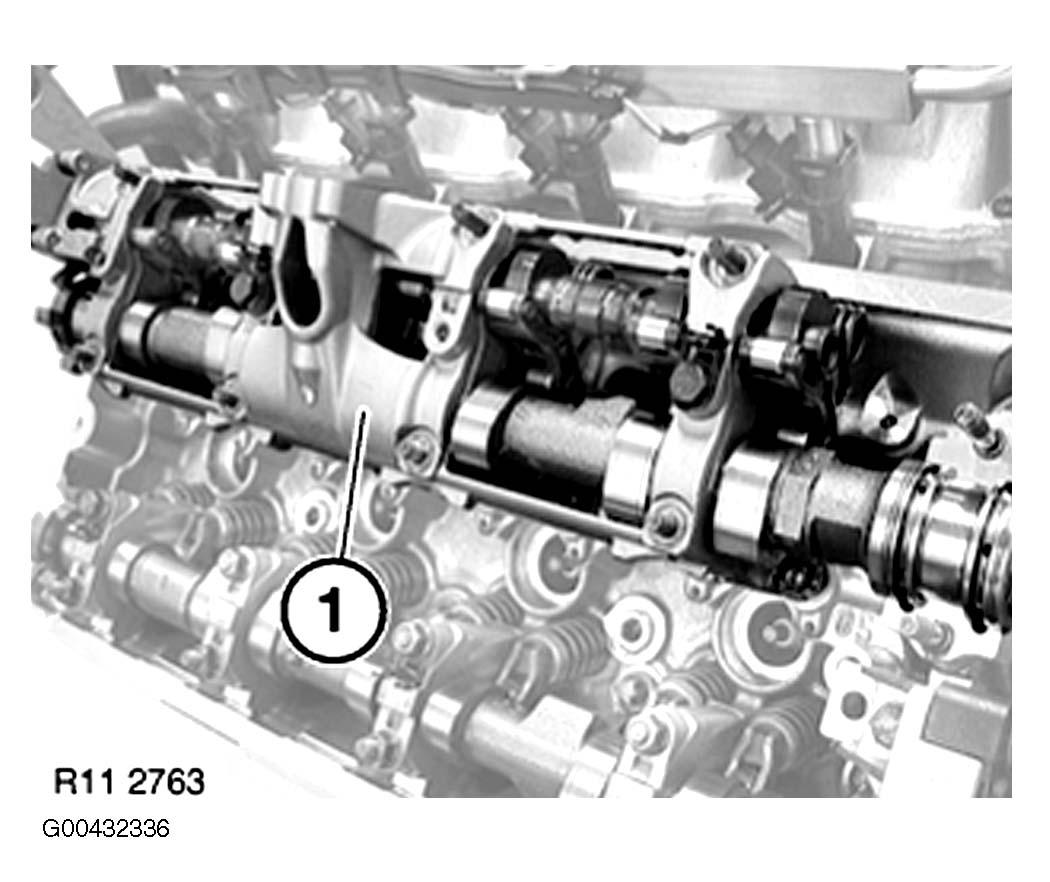

Release 8 nuts of bearing bracket (1) from outside to inside.

Fig 3: Locating Nuts Of Bearing Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Clamp special tool 11 9 470 as illustrated in a vise.

Fig 4: Clamping Special Tool 11 9 470 In A Vise

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not tilt bearing bracket (1).

Carefully lift out bearing bracket (1).

Fig 5: View Of Bearing Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

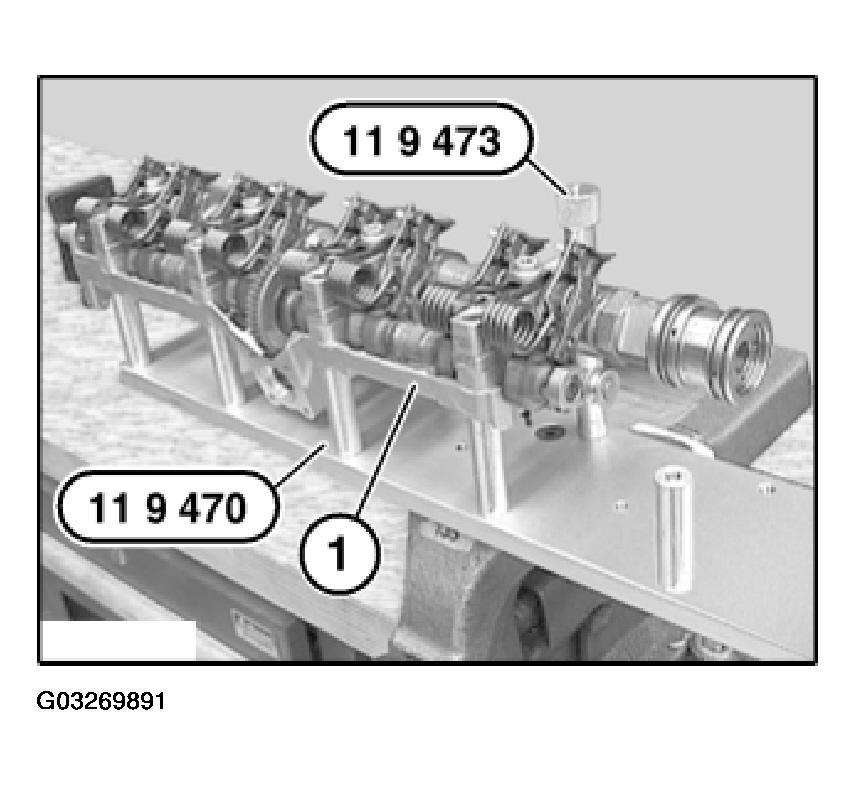

Place bearing bracket (1) with inlet camshaft and eccentric shaft as illustrated on special tool 11 9 470.

Secure bearing bracket (1) with a nut (special tool 11 9 473).

Fig 6: Securing Bearing Bracket With Nut (Special Tool 11 9 473)

Courtesy of BMW OF NORTH AMERICA, INC.

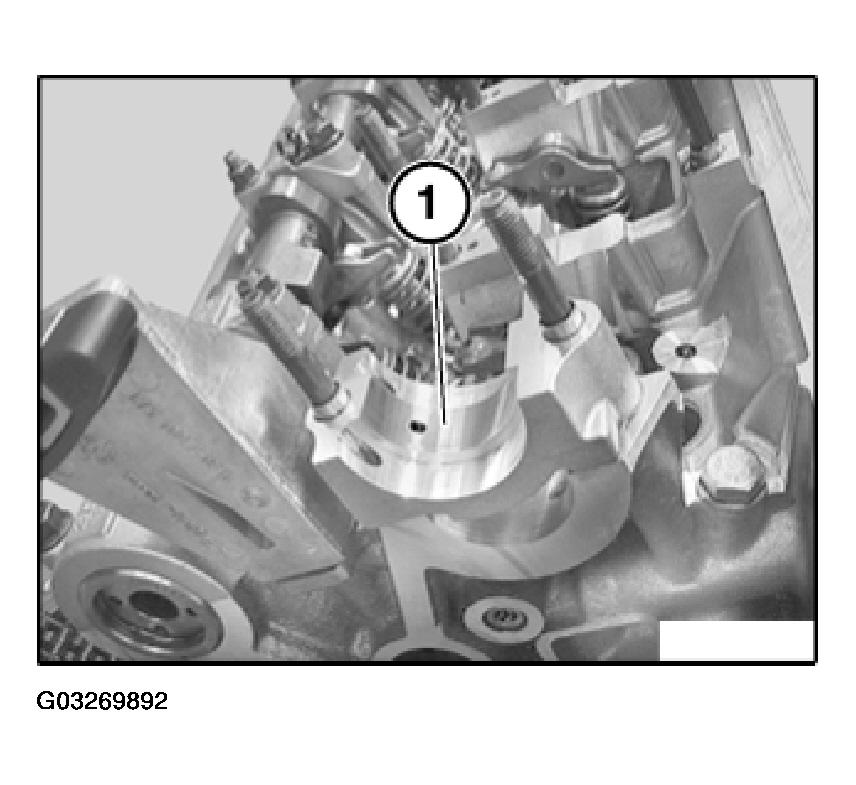

IMPORTANT: The lower section of the bearing bracket (1) is machined with the cylinder head and must not be mixed up.

NOTE: Lower section of bearing bracket (1) remains on cylinder head.

Fig 7: Identifying Lower Section Of Bearing Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

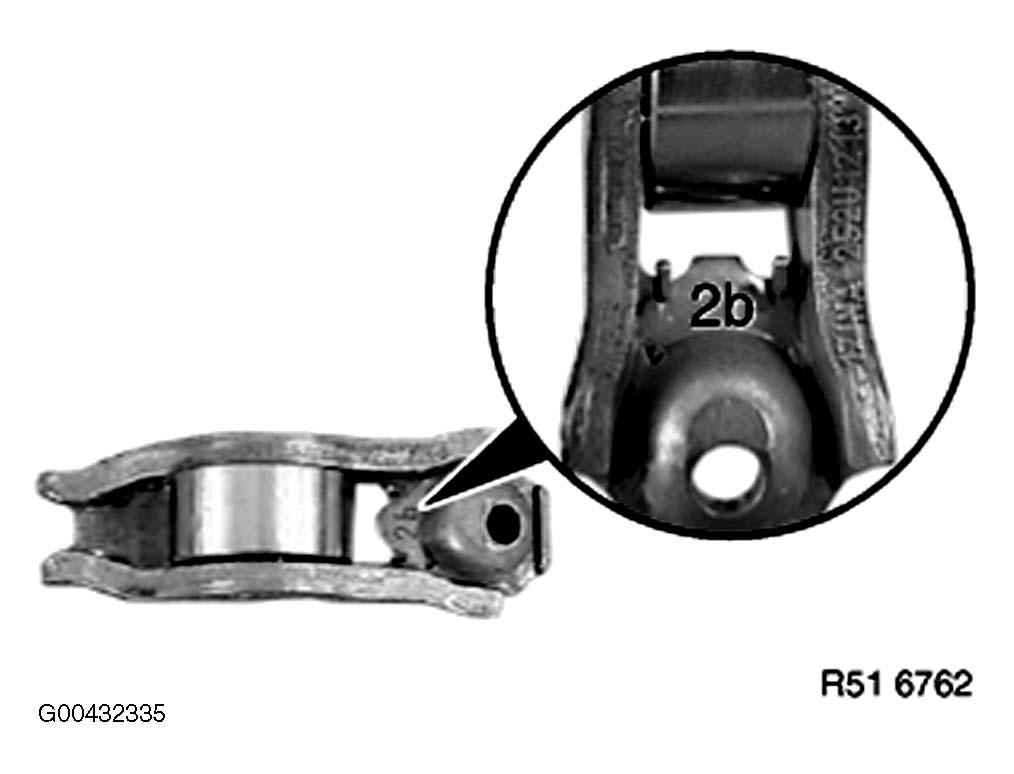

IMPORTANT: Rockers arms (1) are divided into individual tolerance classes. The tolerance classes are designated as illustrated with the numbers from 1 to 4. Used rocker arms (1) may only be reused in the same position.

When replacing rocker arms (1) on inlet side: install rocker arms of the same tolerance class in the same position.

Remove rocker arms (1) on inlet side and set aside in neat order.

Fig 8: Identifying Tolerance Classes On Rocker Arms

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

When replacing rocker arms (1) on inlet side:

Rocker arms have new tolerance classes and must be assigned to the old tolerance classes and fitted in the same position.

Old 1 = new 2A.
Old 2 = new 2A.
Old 3 = new 2B.
Old 4 = new 2B.

Installation:

Installation of rocker arms is described separately from removal.

Clean all bearings and cams of inlet camshaft and lubricate with engine oil.

Fig 9: Identifying Tolerance Classes On Rocker Arms

Courtesy of BMW OF NORTH AMERICA, INC.

Ends of compression rings (1) point upwards.

Make sure compression rings (1) are engaged at ends.

Fig 10: Locating Compression Ring Ends

Courtesy of BMW OF NORTH AMERICA, INC.

Install rocker arms (1) on inlet side.

IMPORTANT: Rocker arms (1) slip slightly when bearing bracket is fitted. Make sure rocker arms (1) are secured as illustrated on hydraulic valve clearance compensating elements and on valves.

Align rocker arms (1) straight.

Fig 11: Aligning Rocker Arms

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 9 473.

Remove bearing bracket (1) from special tool 11 9 470.

Fig 12: Removing Bearing Bracket From Special Tool 11 9 470

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not tilt bearing bracket (1).

Lower bearing bracket (1) from above and carefully bring into contact with cylinder head.

Insert nuts and tighten by hand without play.

IMPORTANT: Make sure none of the intermediate levers or rocker arms have slipped out.

Tighten down nuts from inside to outside.

Tightening torque, refer to 11 31 1AZ in ENGINE - TIGHTENING TORQUES - 545I (4.4L) E60 .

Fig 13: Identifying Nuts Of Bearing Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not mix up the camshaft bearing covers of cylinders 1 to 4 and 5 to 8.

Fit bearing cap L E1 in such a way that marking is legible from inlet side.

Install nuts and tighten down.

Tightening torque, refer to 11 31 1AZ in ENGINE - TIGHTENING TORQUES - 545I (4.4L) E60 .

Fig 14: View Of Bearing Cap L E1

Courtesy of BMW OF NORTH AMERICA, INC.

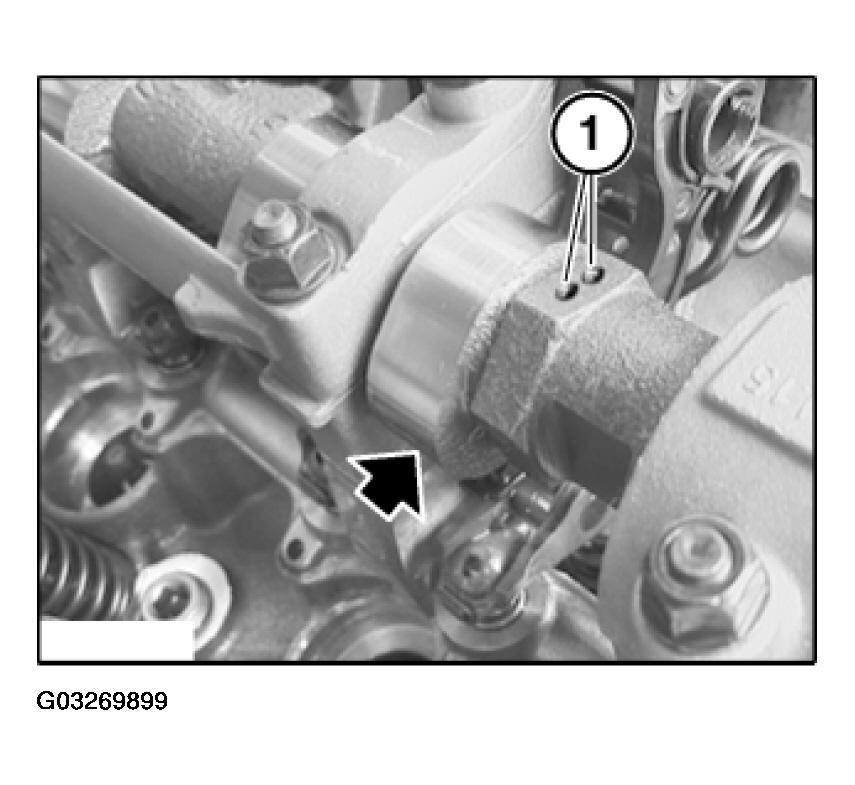

Rotate inlet camshaft at hexagon head against direction of rotation until cam on 1st cylinder points downwards at an angle as shown in illustration.

NOTE: The marking (1) on the hexagon drive of the inlet camshaft faces upwards.

Install inlet and exhaust adjustment unit on right side. Refer to 11 36 048 REMOVING AND INSTALLING/REPLACING INLET AND EXHAUST ADJUSTMENT UNITS ON RIGHT SIDE (N62/N62TU) .

Install spark plugs on cylinder bank 1 to 4.

Install right cylinder head cover. Refer to 11 12 006 REMOVING AND INSTALLING/SEALING RIGHT CYLINDER HEAD COVER (N62/N62TU) .

Install ignition coils on cylinder bank 1 to 4.

Install servomotor for right eccentric shaft. Refer to 11 37 024 REMOVING AND INSTALLING/REPLACING SERVOMOTOR FOR RIGHT ECCENTRIC SHAFT (N62/N62TU) .

Assemble engine.

Fig 15: Identifying Marking On Inlet Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.
