11 14 151 Replacing crankshaft radial shaft seal (N62 / N62TU)

NOTE:

For Special Tool identification, see ENGINE - SPECIAL TOOLS - 5-SERIES (E60) .

Special Tools Required:

11 2 390

(Transmission Side)

Necessary Preliminary Tasks:

Remove transmission. Refer to REMOVAL & INSTALLATION .
Drain off engine oil. Refer to 00 00 610 ENGINE OIL SERvise (N62/N62TU) .
Remove flywheel. Refer to 11 22 000 REMOVING AND INSTALLING/REPLACING FLYWHEEL (N62/N62TU) .

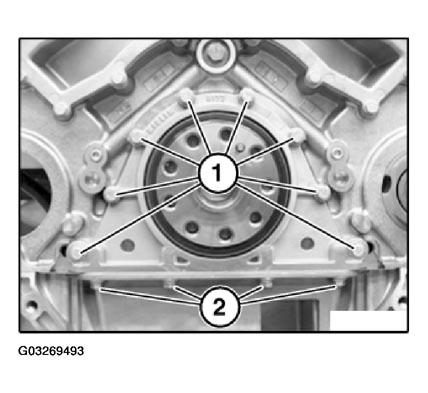

Release screws (2).

Release screws (1).

Carefully remove end cover.

Fig 1: Locating End Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

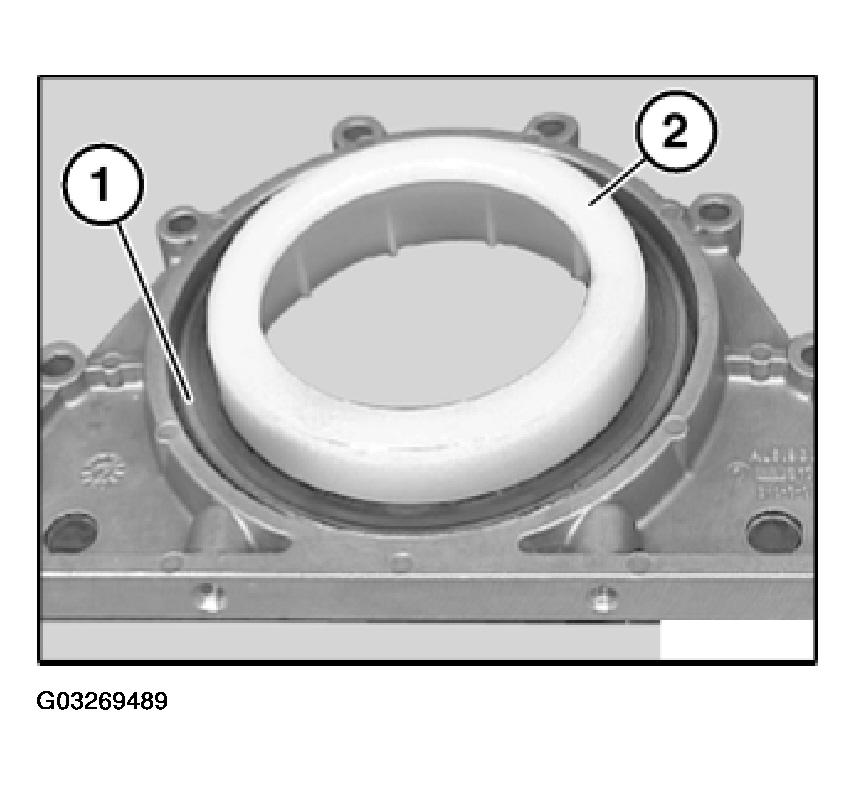

IMPORTANT: The sealing lip of the radial shaft seal is highly sensitive and must not be kinked. Do not touch the sealing lip with your fingers.

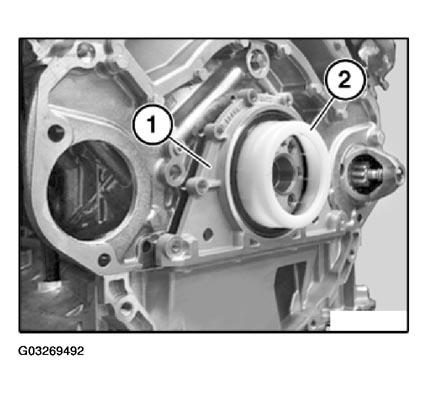

NOTE: Support sleeve (2) is included in scope of delivery. If the radial shaft seal (1) is stored for longer than six months without the support sleeve (2), its operational reliability can no longer be guaranteed and it must not be reused. The support sleeve (2) remains in the radial shaft seal and is used as a slip sleeve in the installation described later.

Fig 2: Identifying Support Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

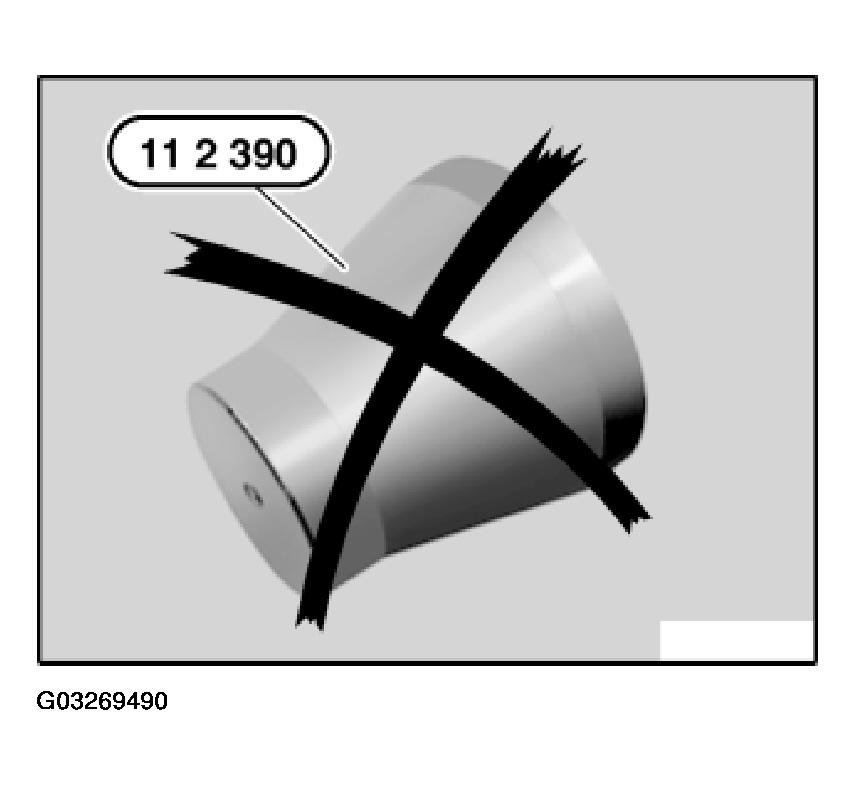

IMPORTANT: Special tool 11 2 390 must not be used.

When the radial shaft seal is installed, only the support sleeve included in the scope of delivery may be used as a slip sleeve.

Fig 3: View Of Special Tool 11 2 390

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The radial shaft seal can only be replaced completely with the end cover. The gasket is an integral part of the end cover and cannot be replaced individually.

Installation:

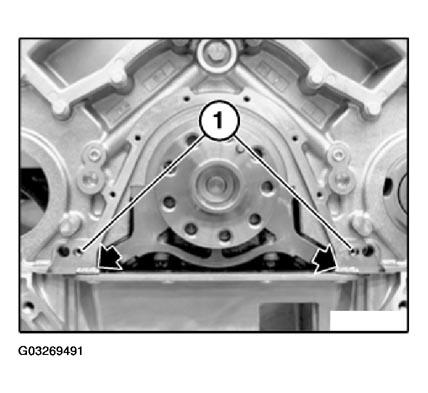

Check dowel sleeves (1) for damage and correct installation position.

Keep sealing faces clean and free of oil.

Coat contact points on joint along oil sump with Drei Bond 1209.

Fig 4: Locating Dowel Sleeves
