64 11 847 Replacing servodrive of dynamic air flap (automatic A/C, from 03/2000)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim.

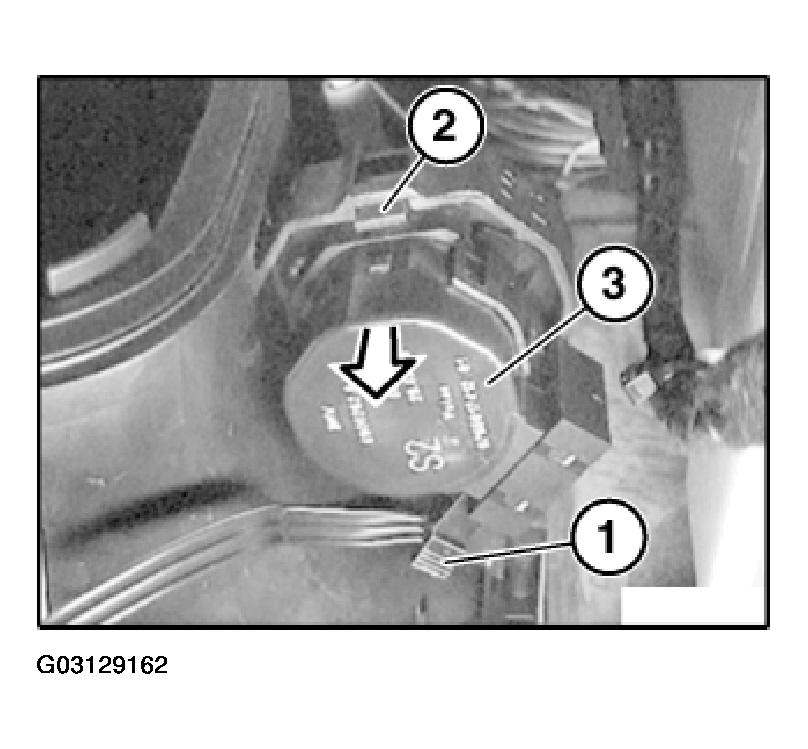

Disconnect plug connection (1).

Unclip lock (2) and pull out servodrive (3) in direction of arrow.

Fig 1: Removing Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, align shaft of dynamic air flap to position of servodrive.

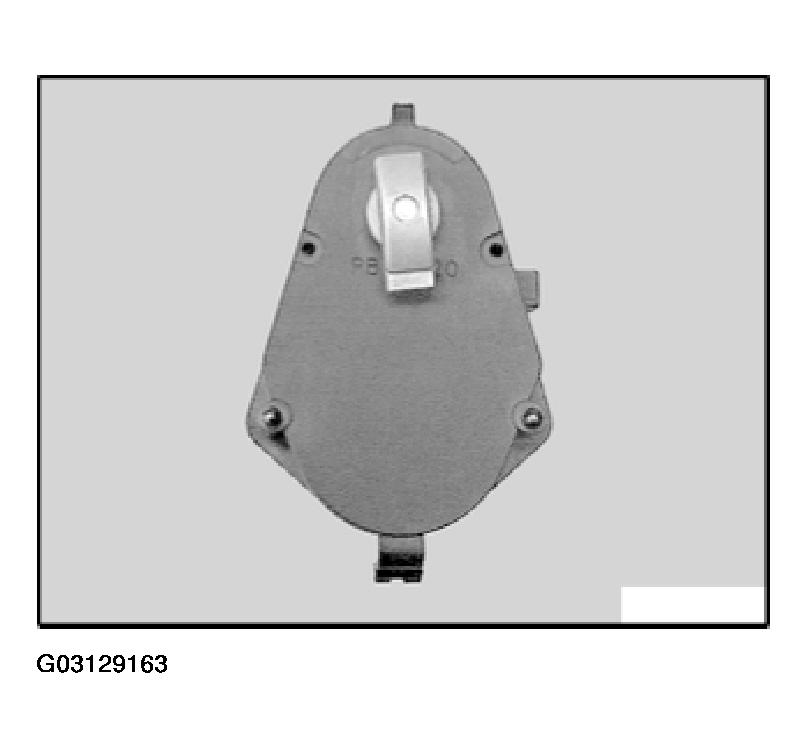

Fig 2: Identifying Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.
