11 43 000 Removing and installing/sealing guide tube for oil dipstick (M54)

Necessary preliminary tasks:

• Drain off engine oil.
• Remove intake hose. See 13 71 000 REMOVING AND INSTALLING INTAKE FILTER HOUSING .

Release screw on guide tube holder.

Remove return hose on oil dipstick guide tube.

Remove guide tube upwards.

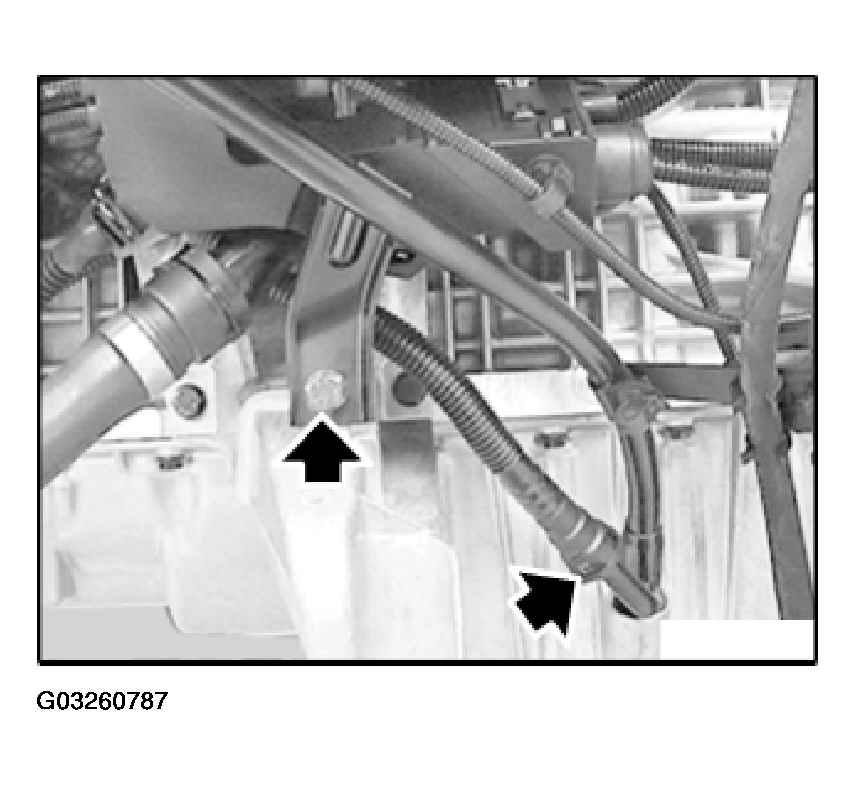

Fig 1: Removing Guide Tube Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

• Remove sealing ring from oil sump.
• Coat new sealing ring with anti-friction agent and slide onto guide tube.
• Insert guide tube into oil sump.

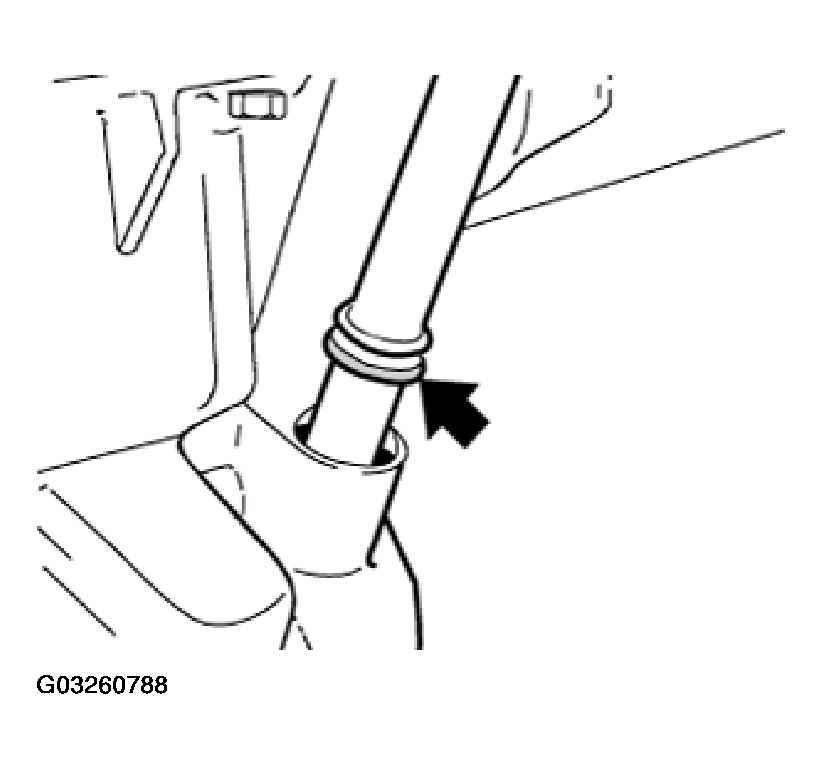

  Fig 2: Inserting Guide Tube Into Oil Sump

  Courtesy of BMW OF NORTH AMERICA, INC.
