Removal & Installation

(clutch removed)

IMPORTANT: In version with needle bearing (1) in dual-mass flywheel (2), no grooved ball bearing may be fitted in the crankshaft.

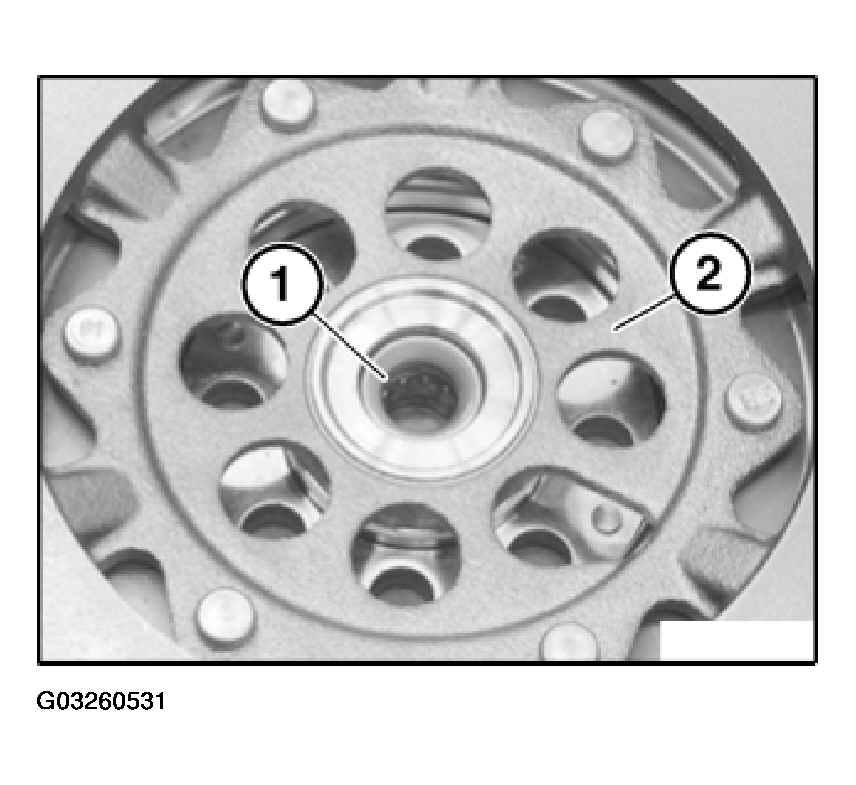

Fig 1: Locating Needle Bearing In Dual-Mass Flywheel

Courtesy of BMW OF NORTH AMERICA, INC.

Version with grooved ball bearing:

Remove guide bearing with special tool 11 2 340.

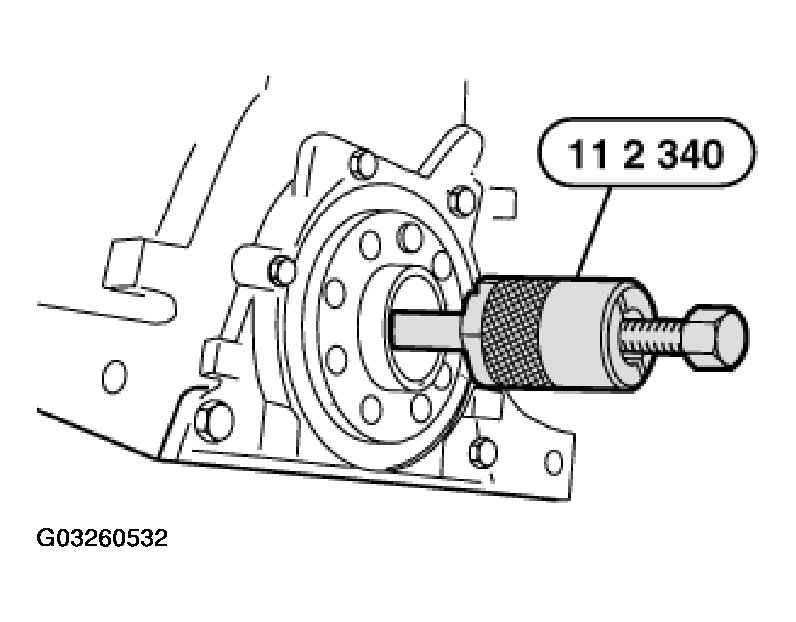

Fig 2: Removing Guide Bearing With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Install new thrust bearing and drive firmly home with special tool 11 2 350 in conjunction with special tool 00 5 500.

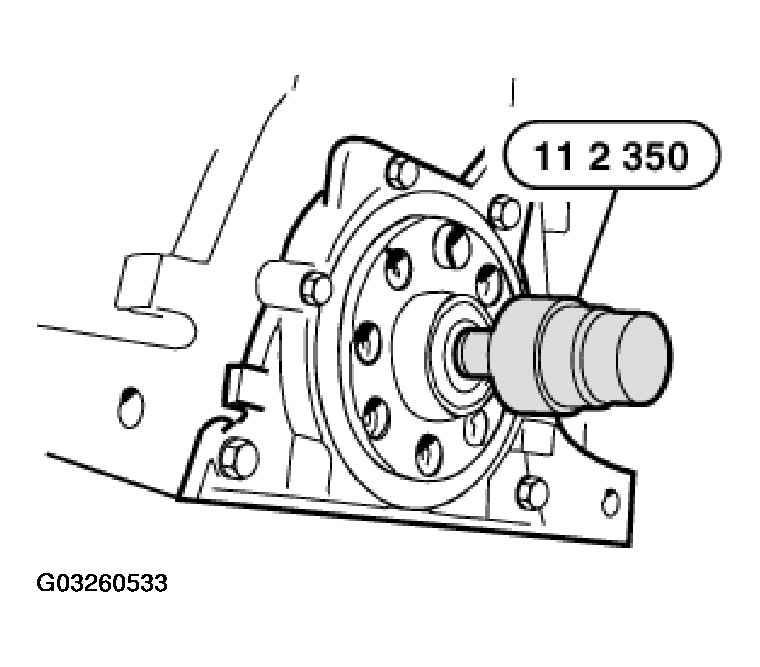

Fig 3: Installing Thrust Bearing

Courtesy of BMW OF NORTH AMERICA, INC.
