11 12 000 Removing and installing, sealing cylinder head cover (M52TU / M54 / M56)

Remove engine cover. Remove and Install Engine Cover

Remove ignition coils. See IGNITION COIL

Remove wiring harness of ignition coils from cylinder head cover and place to one side.

NOTE: Illustration on M54 engine.

Press lock.

Pull off the hose for the engine breather.

Fig 1: Pulling Off The Hose For Engine Breather

Courtesy of BMW OF NORTH AMERICA, INC.

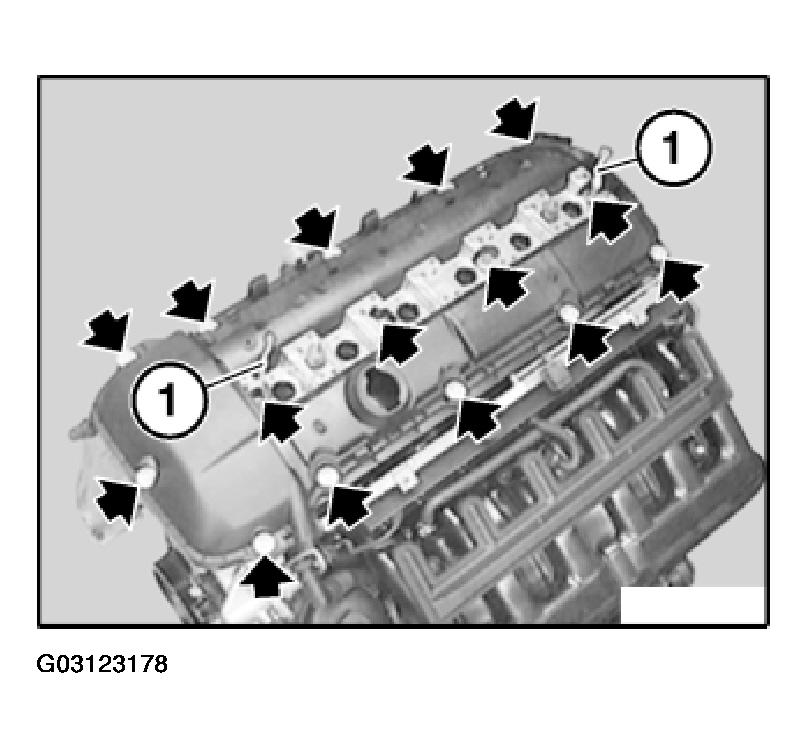

Remove grounding straps (1).

Remove cylinder head cover.

Fig 2: Identifying Cylinder Head Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove sealing debris from sealing faces of cylinder head and cylinder head cover.

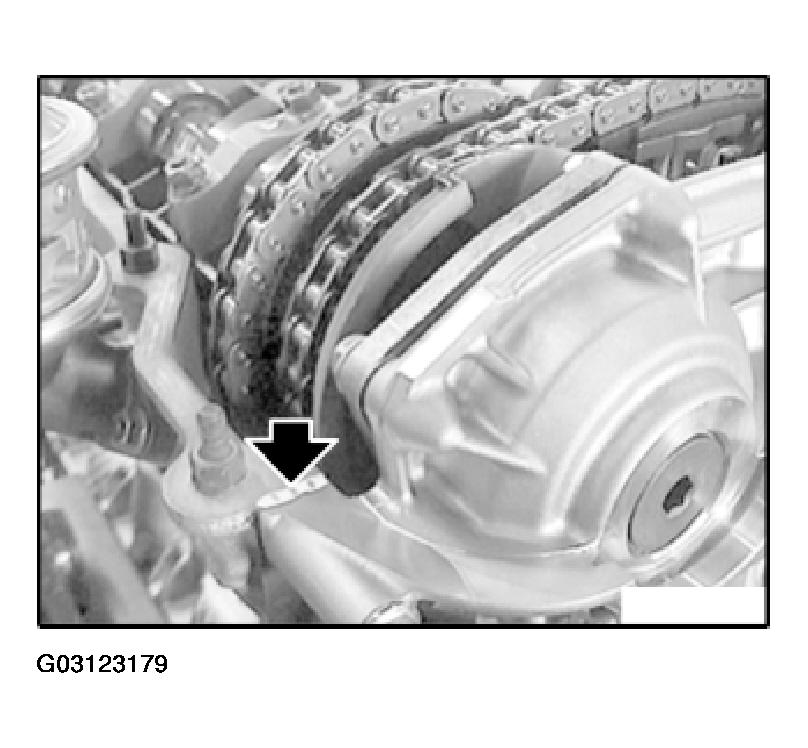

Apply a sealing bead of Drei Bond 1209 (refer to BMW Parts Service) on left and right sides at transition between cylinder head and VANOS adjustment unit.

Fig 3: Removing Sealing Debris From Sealing Faces

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

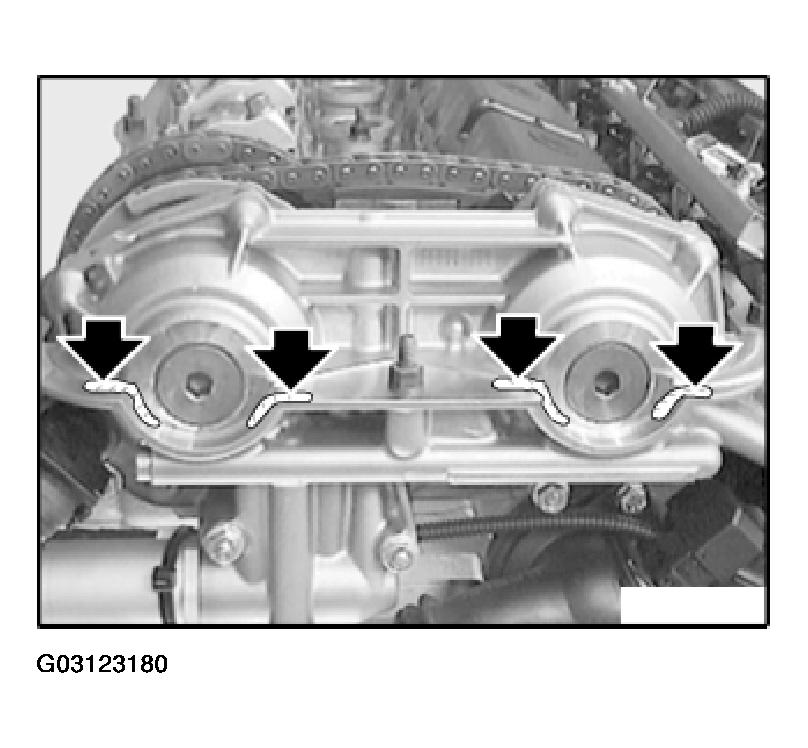

Apply a thin and even sealing bead of Drei Bond 1209 (refer to BMW Parts Service) at transition to half-moon sections at VANOS adjustment unit.

Fig 4: Applying A Thin & Sealing Bead

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustration with engine removed.

Installation:

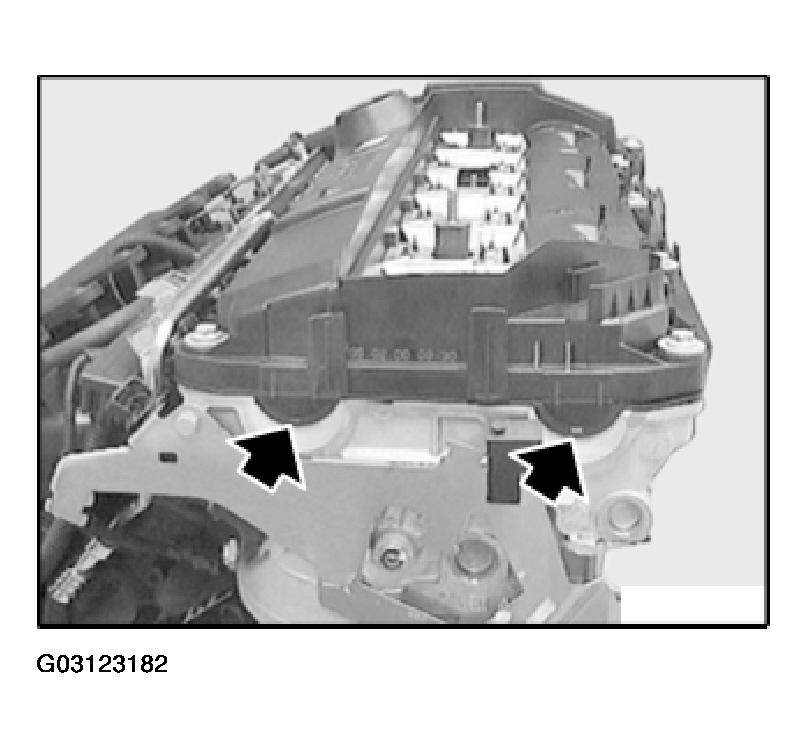

Apply a thin and even sealing bead of Drei Bond 1209 (refer to BMW Parts Service) at transition to half-moon sections at rear of cylinder head.

Check seals and replace if necessary.

Fig 5: Checking Seals

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustration with engine removed.

Installation:

Make sure gasket is correctly seated on rear and front ends of cylinder head.

Install cover bolts and align cylinder head cover.

Hand-tighten all cover bolts without preload. Tighten cap nuts crosswise from inside to outside.

Fig 6: Making Sure Gasket Is Correctly Seated On Rear & Front Ends Of Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.
