61 61 100 Removing and installing/replacing both windshield wiper arms

Special tools required:

Remove cover (1).

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

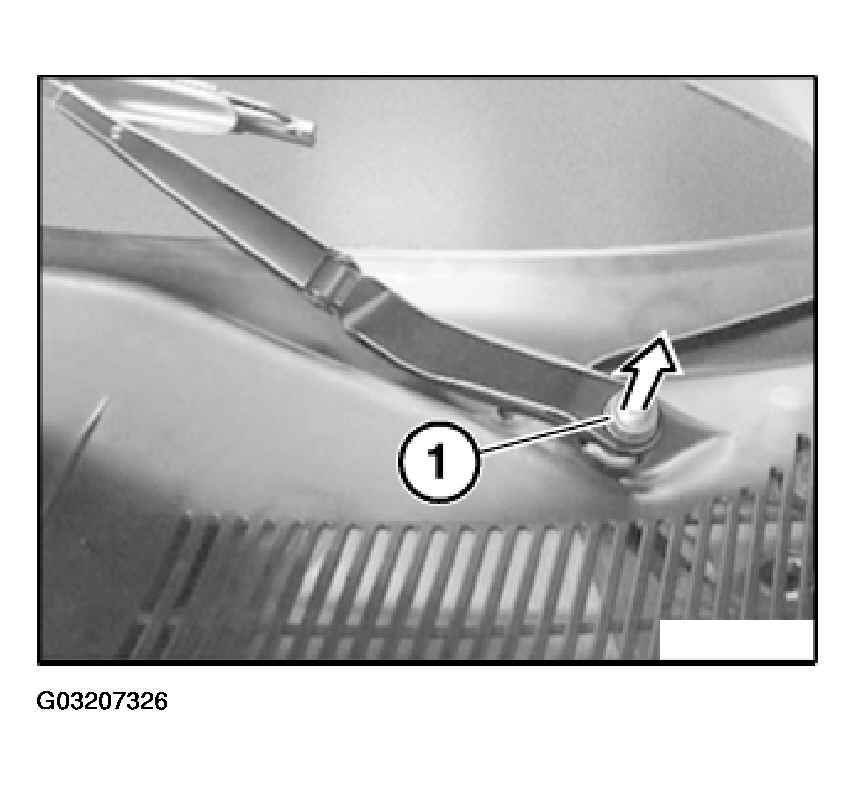

Unscrew nut (1).

Fig 2: Removing Nut

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not bend wiper arm during removal (risk of breakage).

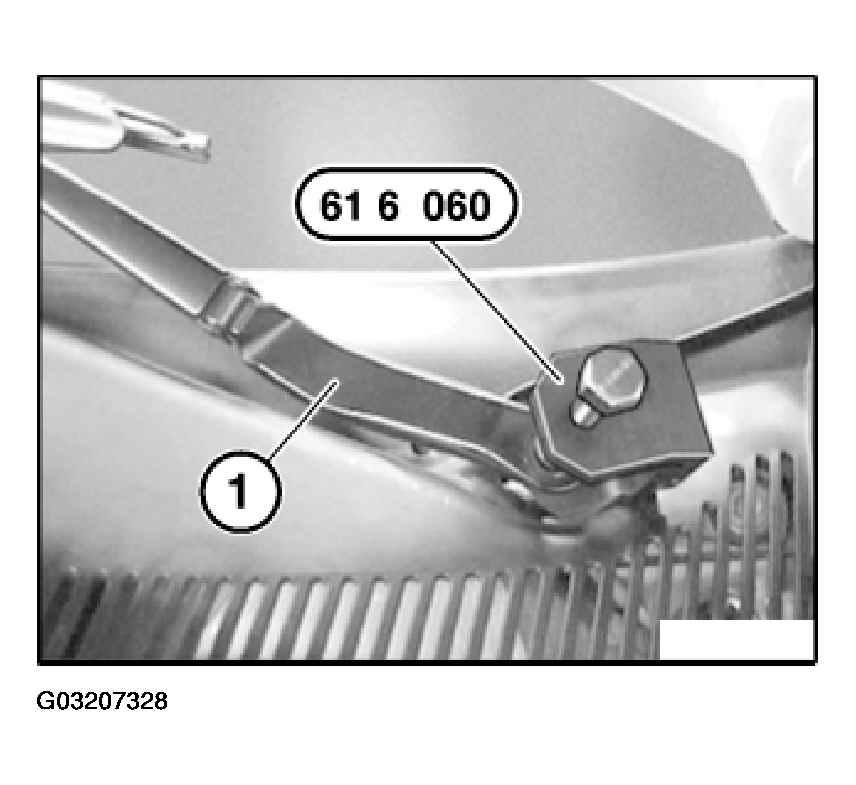

Pull off wiper arm (1) with special tool 61 6 060.

Replacement:

Remove wiper blades.

Fig 3: Removing Wiper Blades

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust position of wiper arm in rest position (measured between wiper lip and top edge of cowl cover).

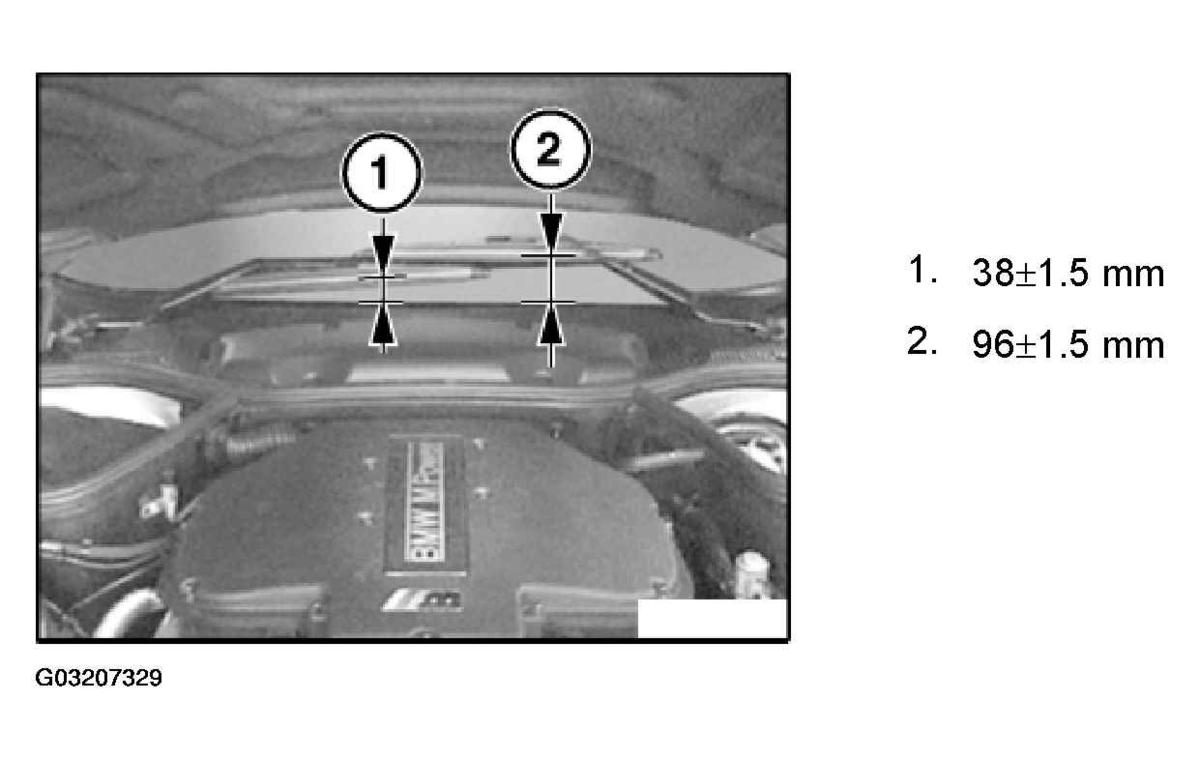

Fig 4: Identifying Adjusting Position Of Wiper Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut of wiper arm to appropriate torque, 61 61 9AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

After waiting 15 minutes, tighten nut again to appropriate torque, 61 61 9AZ.

Check position of wiper arm again, repeat adjustment procedure if necessary.

Installation:

Check/adjust contact angle of wiper arms to windshield.
