11 61 056 Replacing sealing flange for left or right intake air manifold (S62)

Remove and install intake air manifold. Refer to 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (S62) .

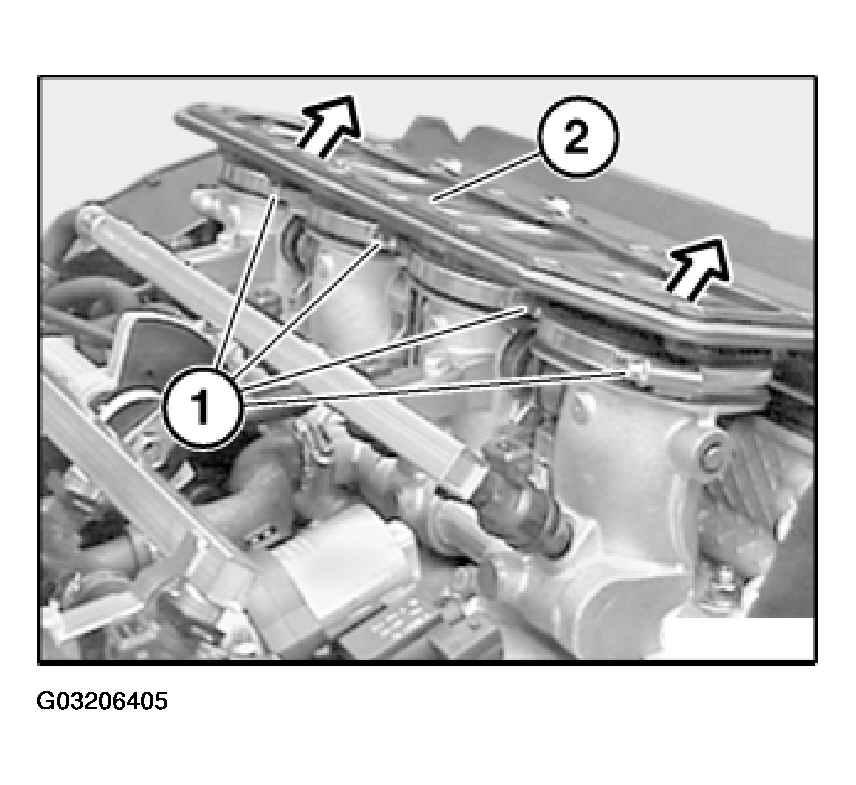

Release hose clamps (1).

Remove sealing flange (2).

Fig 1: Removing Sealing Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

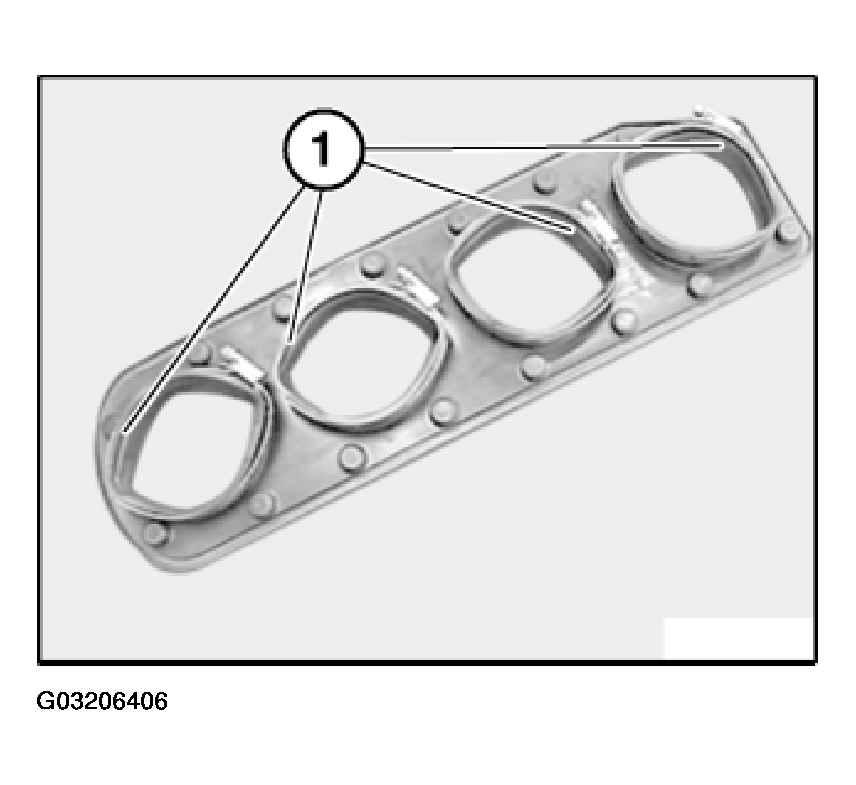

Coat sealing surfaces (1) with anti-friction rubber coating (e.g. petroleum jelly).

Fig 2: Coating Sealing Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

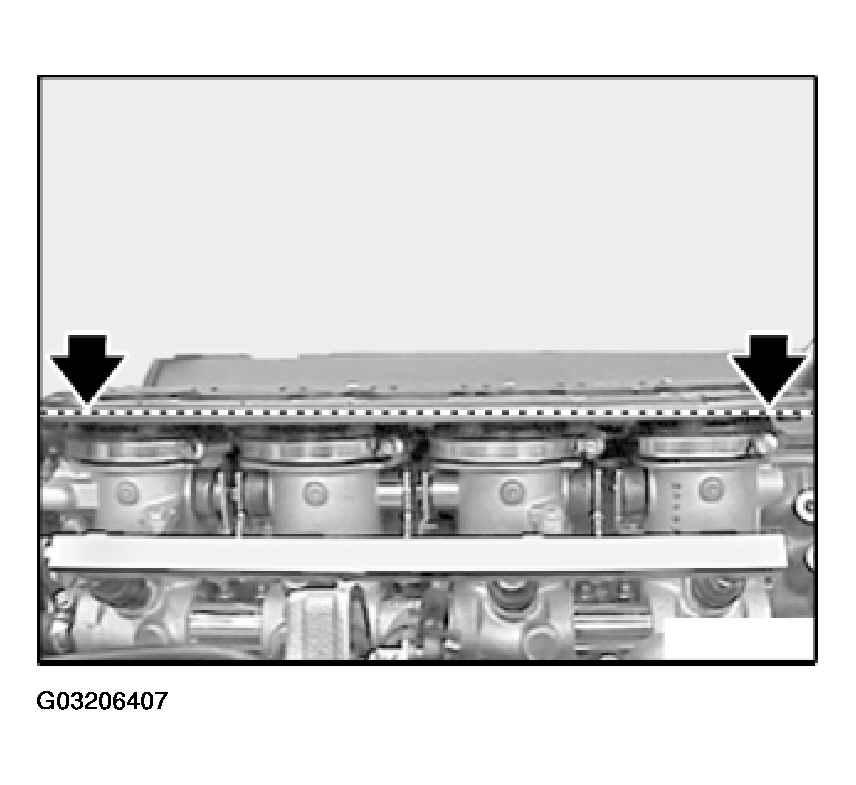

When installing, make sure sealing flange is correctly seated.

Uneven sealing flange surface indicates incorrect installation.

Fig 3: Installing Sealing Flange

Courtesy of BMW OF NORTH AMERICA, INC.
