51 16 240 Removing and installing rear storage compartment

Move driver's or passenger seat to max. forward position.

Storage compartment, rear left and right:

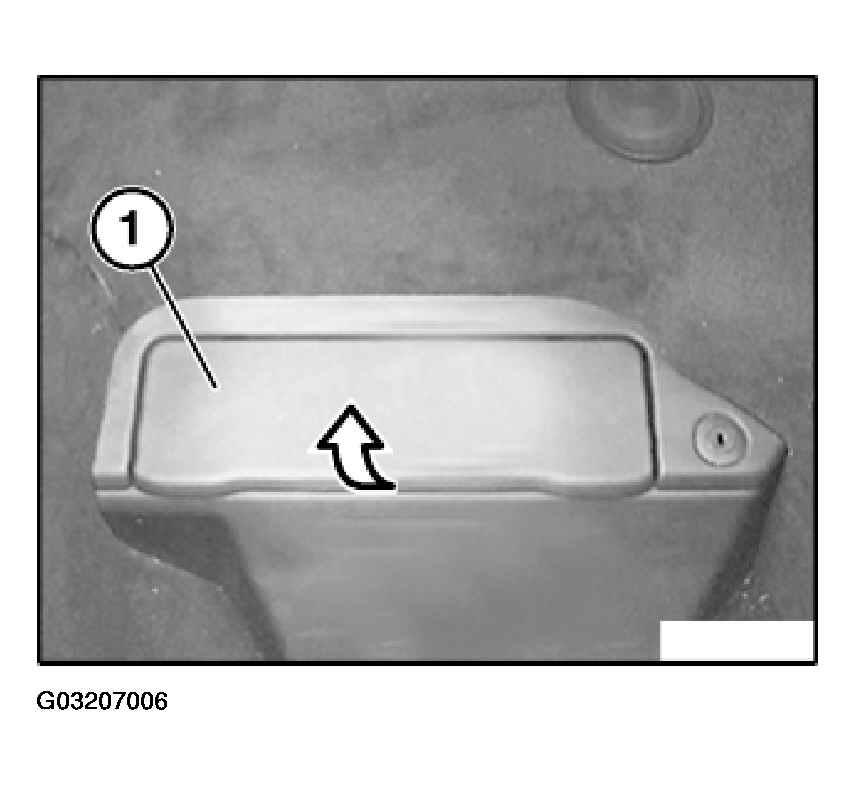

Open lid of storage compartment (1) in direction of arrow.

Fig 1: Opening Lid Of Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Storage compartment, rear left:

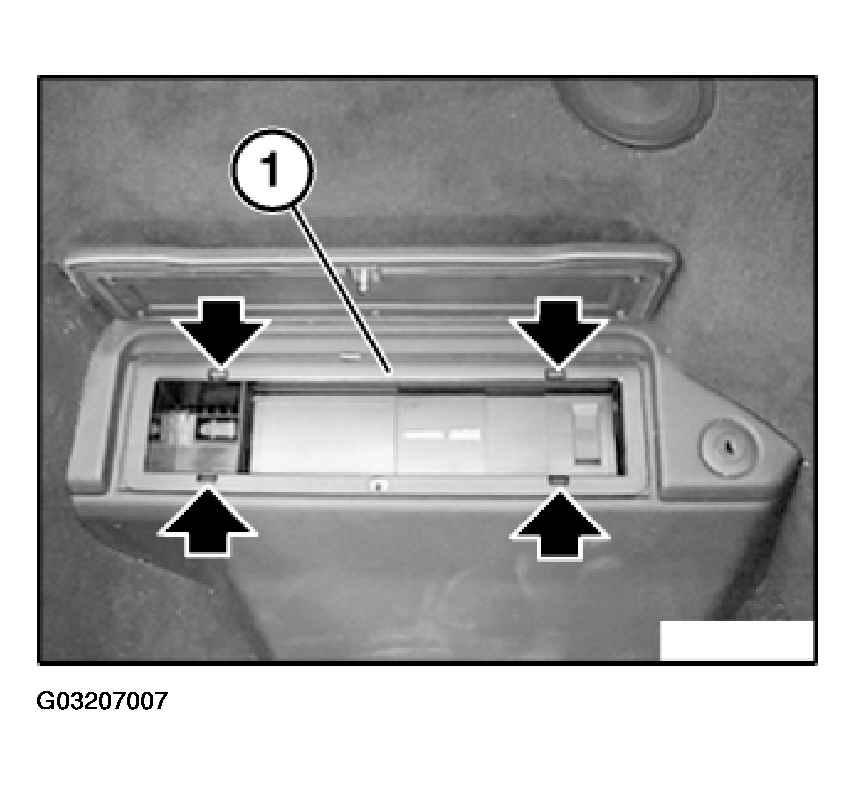

Unlock frame (1) and remove.

Disconnect plug connection.

Fig 2: Unlocking Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Storage compartment, rear right:

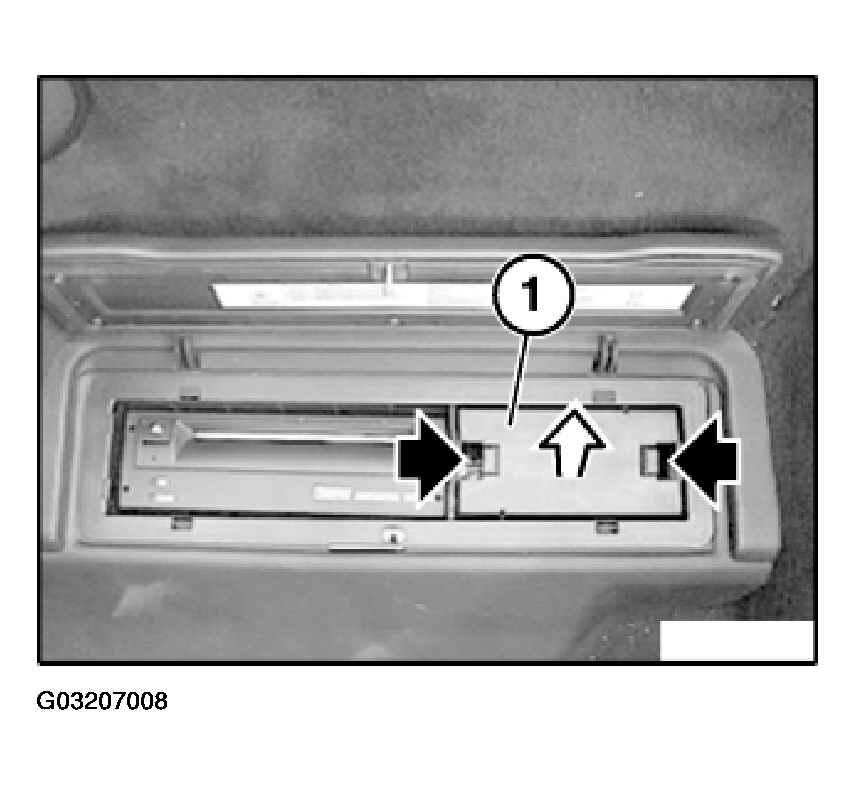

Lift off cover (1) in direction of arrow.

Fig 3: Lifting Off Cover

Courtesy of BMW OF NORTH AMERICA, INC.

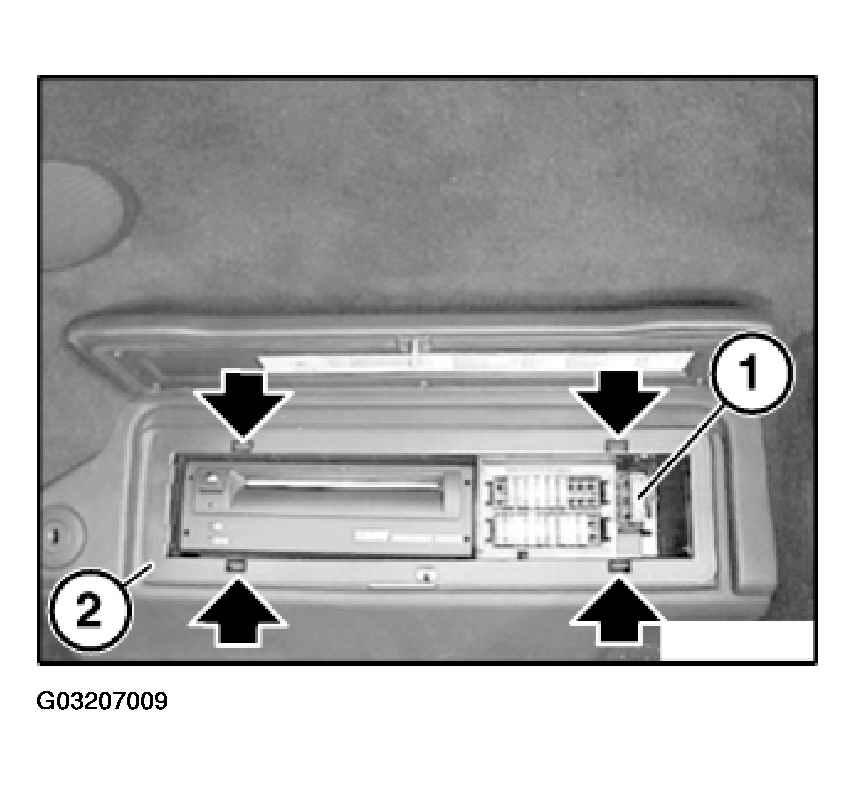

Unclip retaining bracket (1) and remove.

Fig 4: Removing Retaining Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

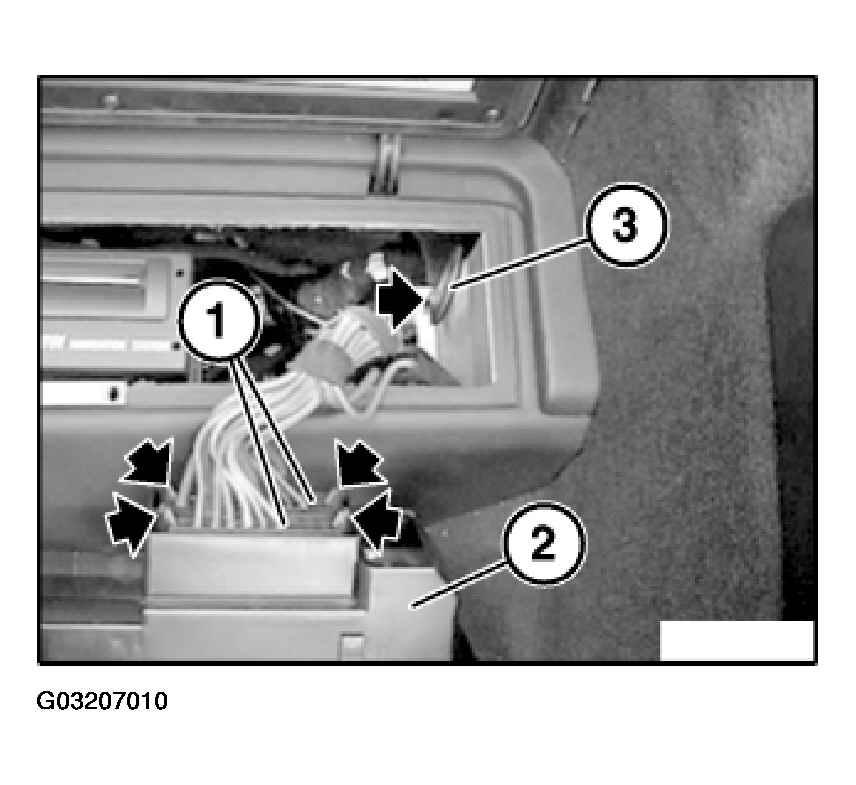

Unlock frame (2) and raise.

Unclip retaining bracket (1) and remove.

Fig 5: Removing Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Remove frame (2).

Feed out emergency unlocking mechanism for luggage compartment lid (3).

Storage compartment, rear left and right:

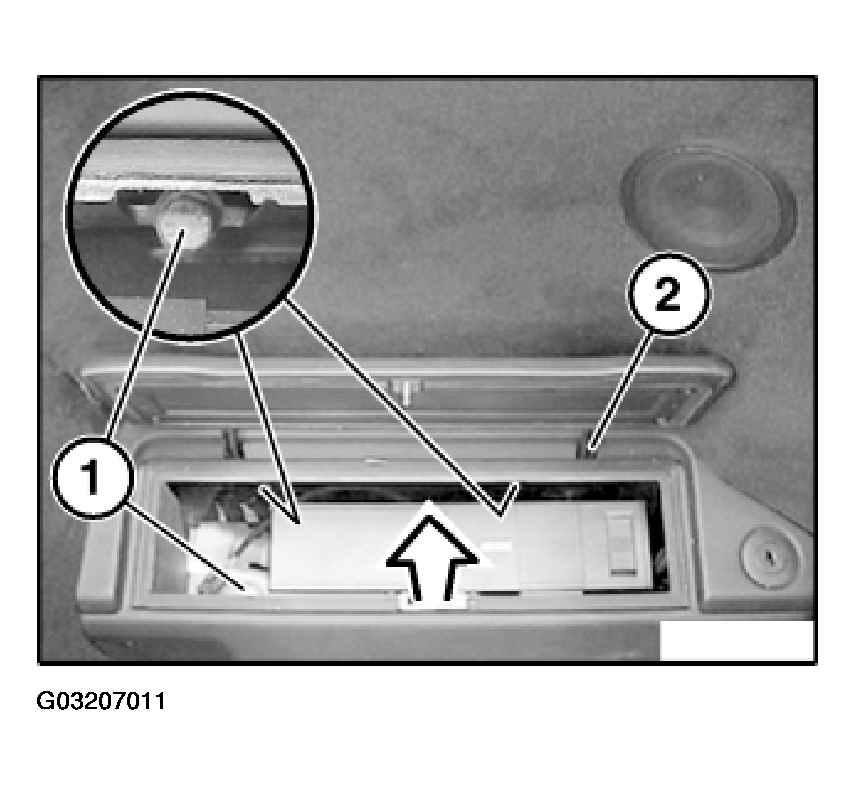

Loosen screws (1).

Lift out storage compartment (2) in direction of arrow.

Fig 6: Lifting Out Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

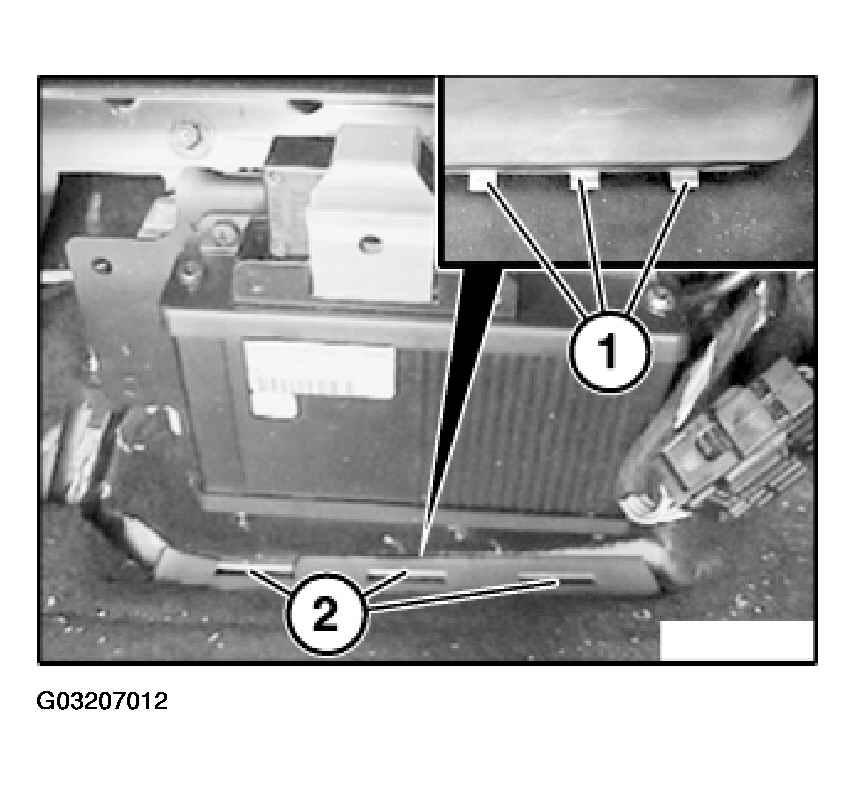

Installation:

Feed journal (1) into openings (2).

Fig 7: Feeding Journal Into Openings

Courtesy of BMW OF NORTH AMERICA, INC.
