51 45 185 Removing and installing/replacing trim for pedal assembly

Remove trim panel for speaker on left. Refer to 51 45 ... Removing and installing trim panel for speaker on left .

Detach side padding in footwell from center console (dual-lock tape).

Release screws (1).

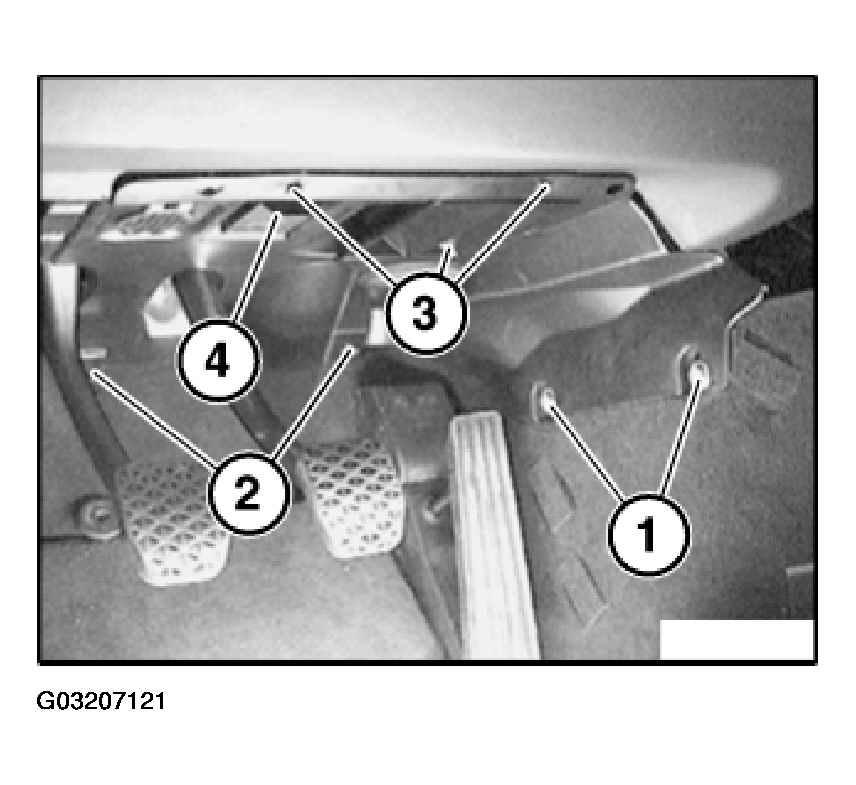

Fig 1: Removing Trim For Pedal Assembly

Courtesy of BMW OF NORTH AMERICA, INC.

Turn rotary clips (2) through 90° and remove.

Release screws (3) and lower panel.

Open OBD 2 socket (4) and press housing out of holder.

Unfasten plug connection.
