51 33 000 Removing and installing power window regulator in left or right front door

Adjust window lift fully towards bottom.

CAUTION: Disconnect plug connection (1) from power window motor (risk of trapping).

Unhook cables (2) from clips (3) and (4).

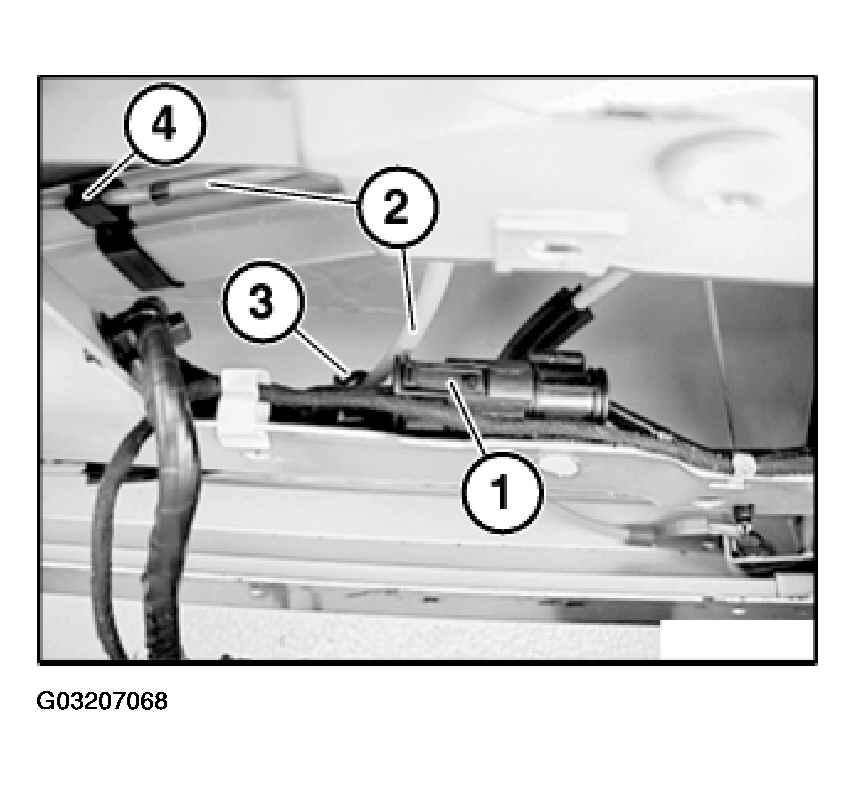

Fig 1: Disconnecting Plug Connection From Power Window Motor

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out cap at bottom and release screw (1).

Release screw (3) over bore (4).

Remove rear power window rail (2).

Installation:

Tightening torque 51 33 2AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

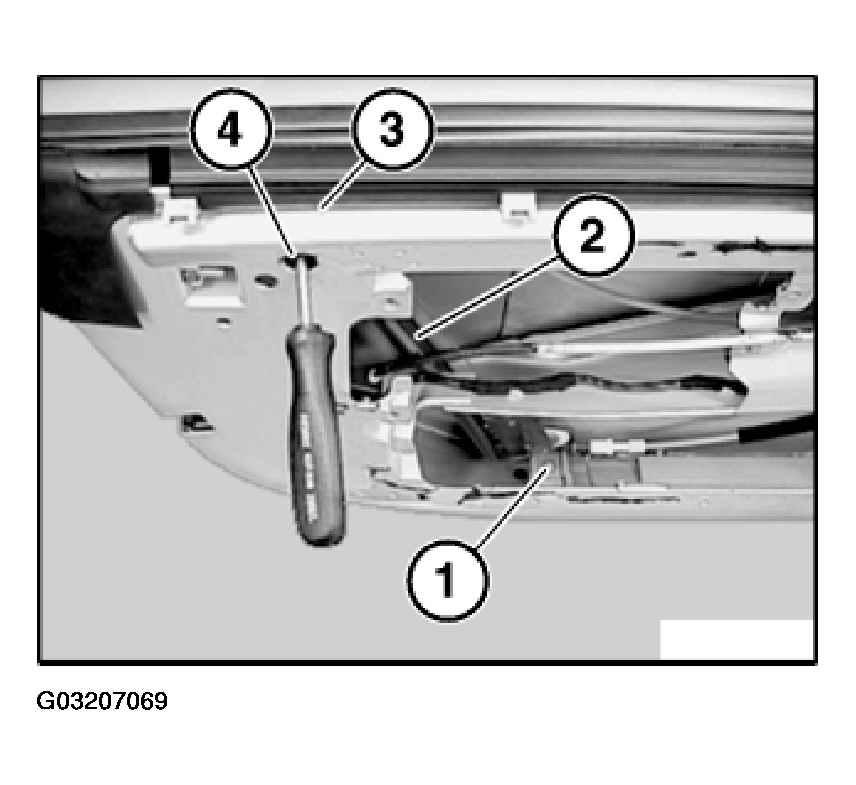

Fig 2: Removing Rear Power Window Rail

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The work for "Removing/replacing door lock" ends here.

Unscrew bolt (1).

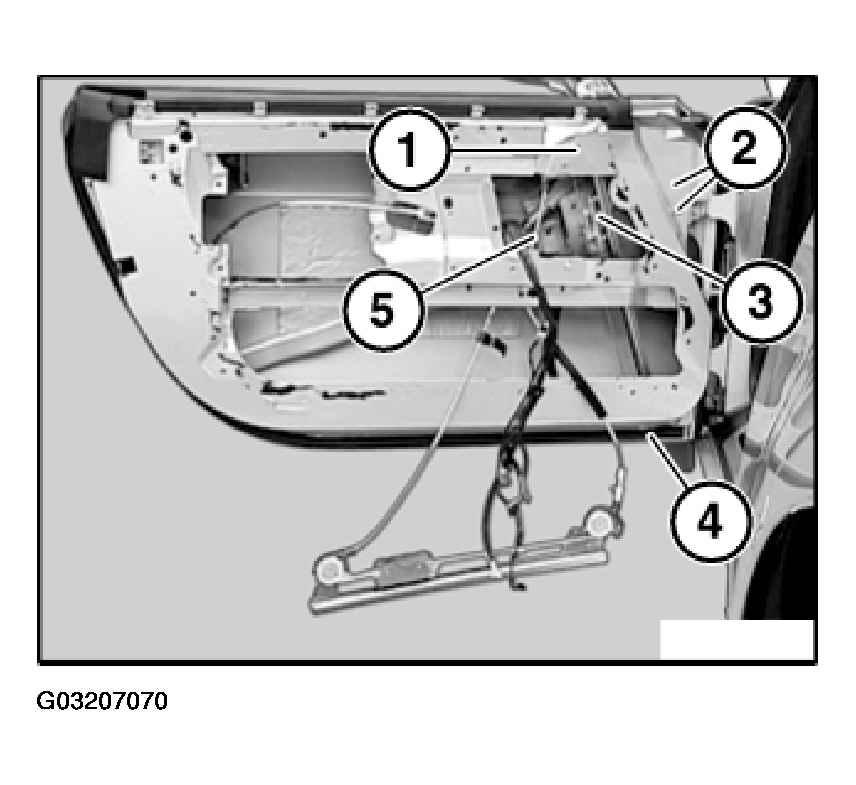

Fig 3: Removing Window Lift

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out cap at bottom and release screw (4).

Release screws (2).

Release screw (5).

Pull back window lift (3) a little and disconnect plug connection.

Remove window lift (3) complete with drive.

Installation:

Tightening torque 51 33 2AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .
