51 41 019 Removing and installing/replacing door handle on door trim panel, front left or right

Remove cover on door handle. Refer to 51 41 017 Removing and installing/replacing cover on door handle, front left or right .

Release screws (1).

Pull off door handle (2) from door trim panel towards bottom.

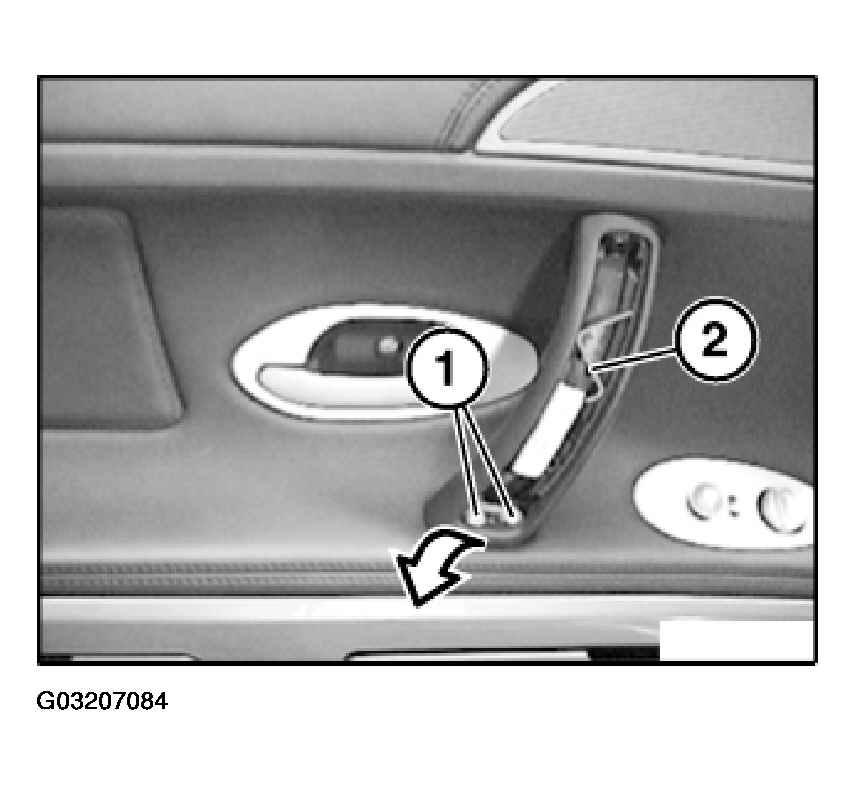

Fig 1: Pulling Off Door Handle
G03207084Courtesy of BMW OF NORTH AMERICA, INC.
