51 47 ... Removing and installing/replacing trim on panel for rollover protection on left or right

Special tools required:

Carefully lever out BMW emblem with special tool 00 9 318.

Release screw (1) and remove trim.

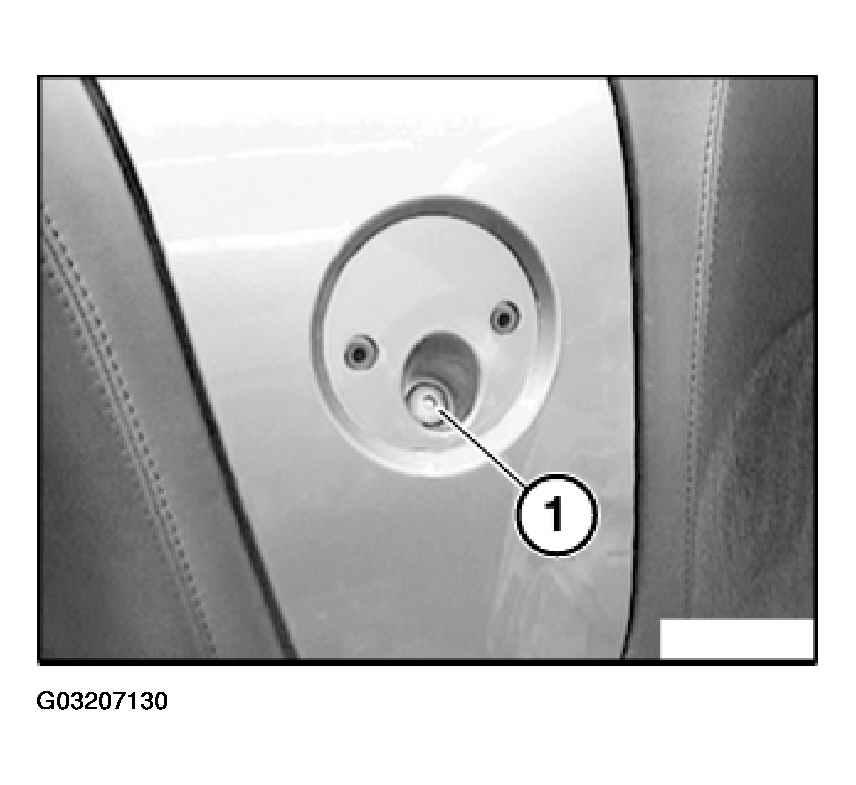

Fig 1: Removing Trim
G03207130Courtesy of BMW OF NORTH AMERICA, INC.
