63 10 034 Adjusting high-beam headlight
Observe test preconditions for adjusting headlights. Refer to 63 10 ... Test requirements for headlight vertical aim adjustment .
NOTE:

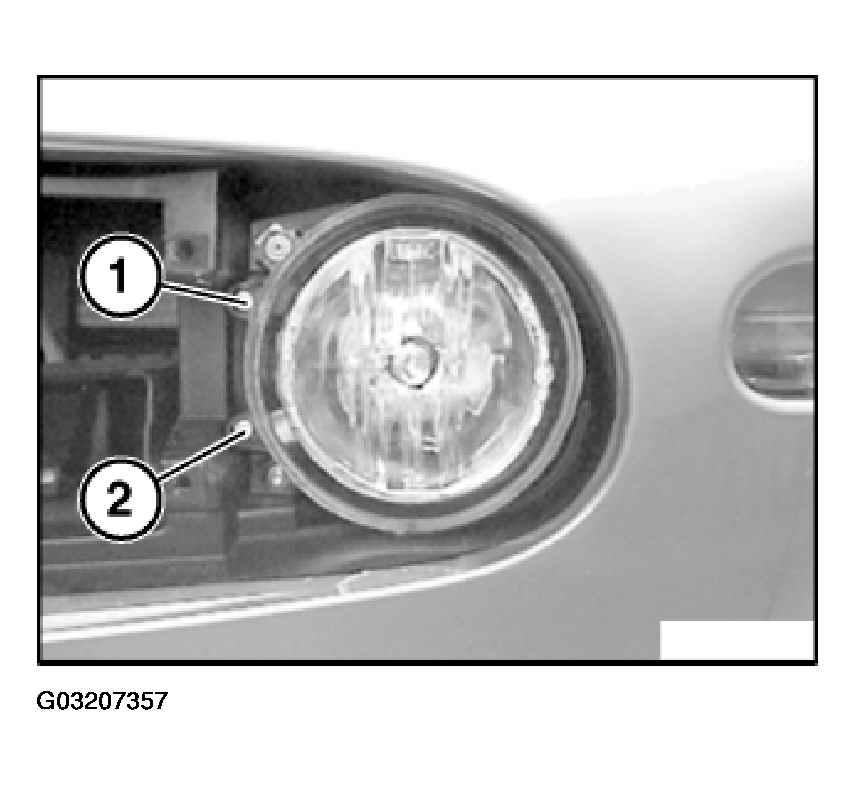

For purposes of clarity, illustration does not show "left or right front trim ring".
Adjust headlights at adjusting screws (1) and (2).
A definite allocation of adjusting screws is not possible.
- Adjusting screw for vertical aiming
- Adjusting screw for lateral aiming
