51 16 ... Replacing left or right outside mirror housing

Special tools required:

Removing protective cap:

Release screws (1).

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

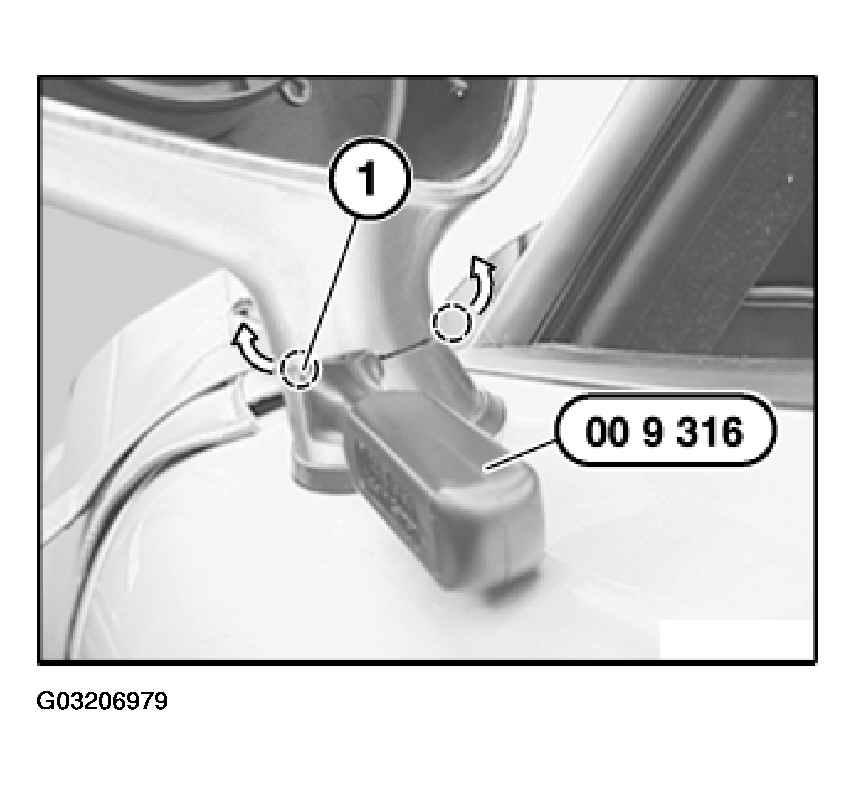

Using special tool 00 9 316 (sealing lip wedge), lever out catches of protective cap (1).

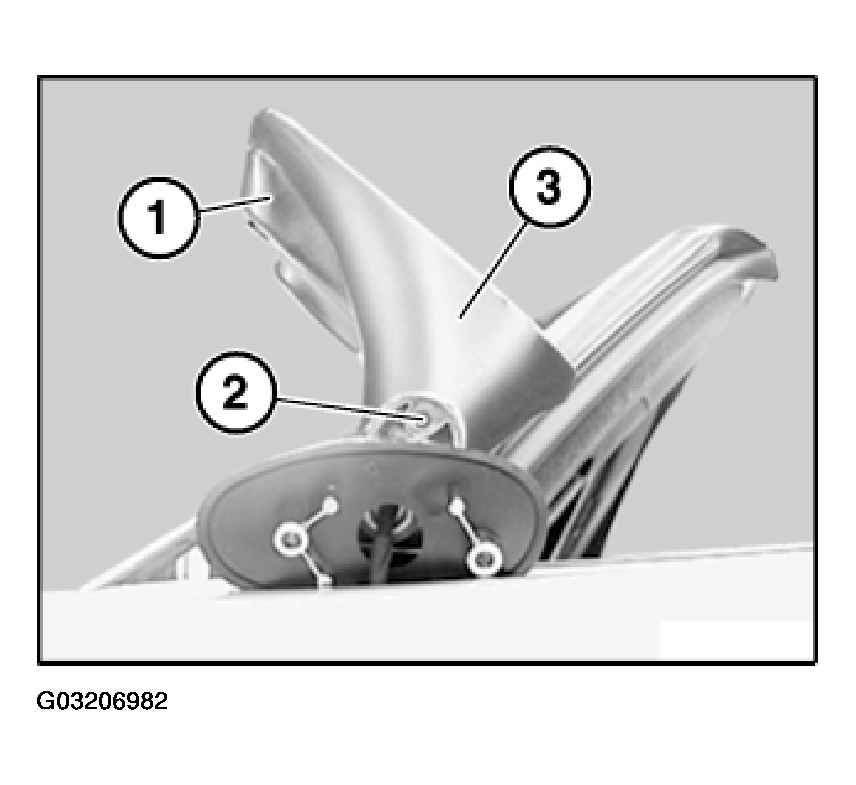

Remove protective cap (1).

Fig 2: Removing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of protective cap (3) must not be damaged:

Fig 3: Identifying Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Removing retaining ring:

Protective cap removed.

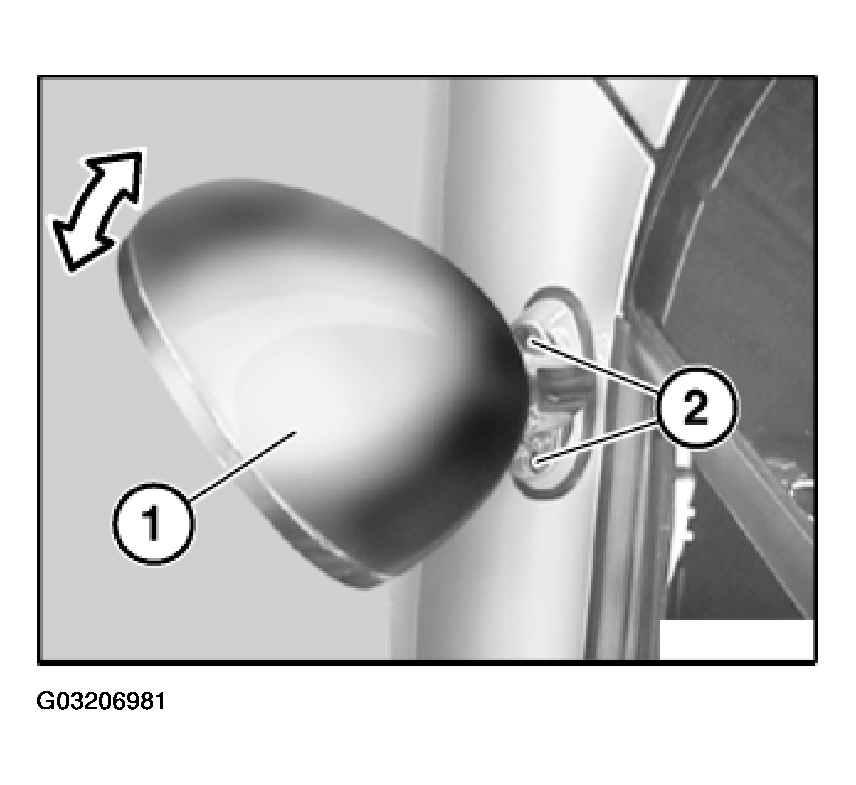

Turn mirror (1) through approx. 90° towards front until screws (2) are accessible.

Fig 4: Removing Mirror

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Hold mirror (1) after releasing screws (2).

Release screws (2) and remove.

Installation:

Tightening torque, 51 16 1AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Carry out function check.

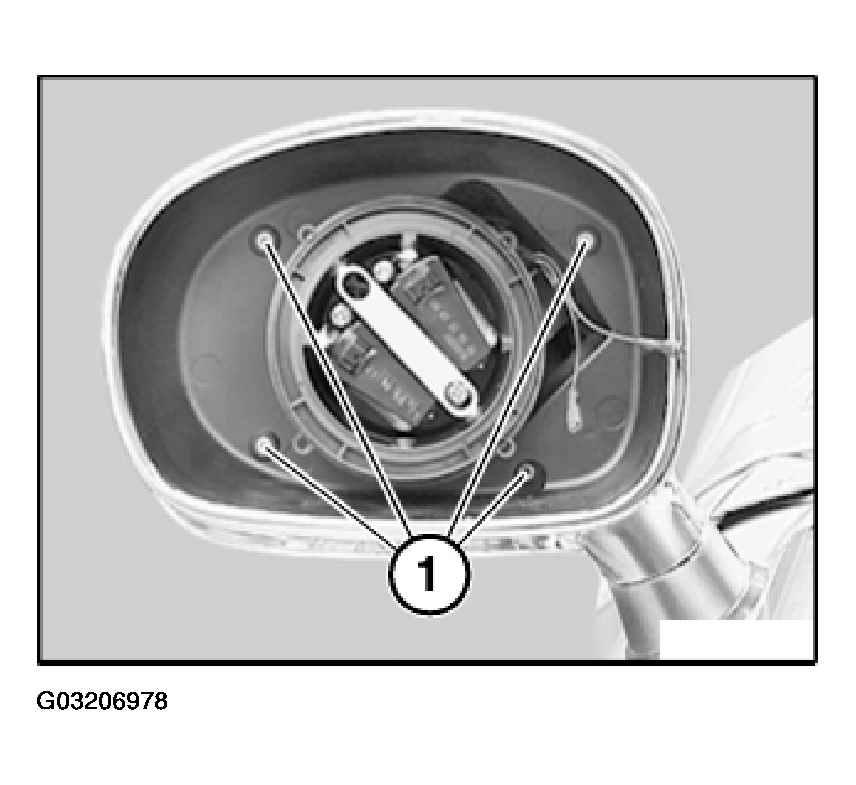

Turn mirror (1) upwards and release screw (2).

Fig 5: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

To remove retaining ring (3), screw down mirror (1) again to front door.

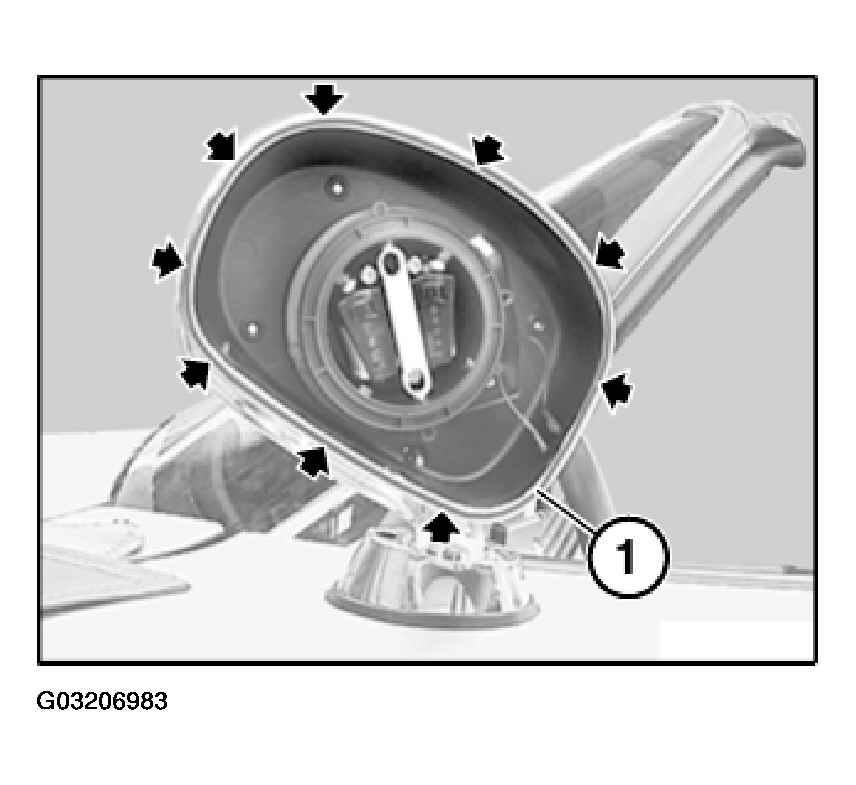

Lever out all catches and remove retaining ring (1) towards rear.

Fig 6: Removing Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of retaining ring (4) must not be damaged:

Fig 7: Identifying Retaining Ring Components

Courtesy of BMW OF NORTH AMERICA, INC.
