51 47 220 Removing and installing/replacing trunk trim panel on right side panel

Remove panel for trunk separating wall.

Lever out trunk light (1) and detach plug connection.

Pull out emergency release mechanism for tank cap a little.

Unclip cable (2) from clip (3).

Remove trunk trim panel (4).

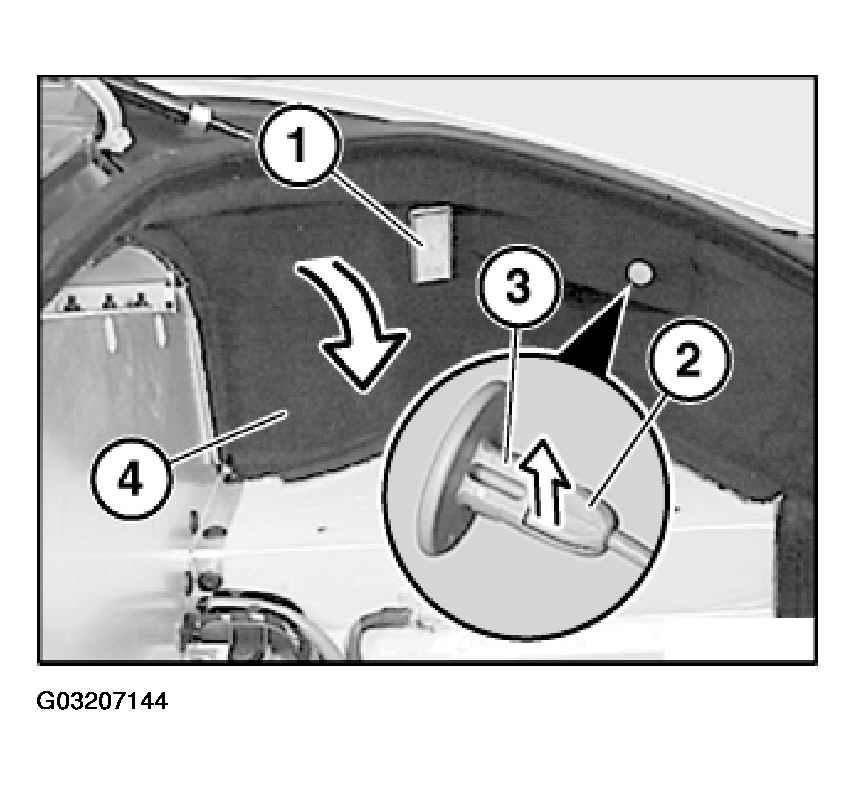

Fig 1: Removing Trunk Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
