51 47 ... Removing and installing/replacing panel for convertible top compartment at top

Remove panel for rollover protection on left and right. Refer to 51 47 ... Removing and installing/replacing panel for rollover protection on left or right .

Remove complete convertible top. Refer to 54 34 101 Removing and installing complete convertible top .

Remove ventilation louver (1) in convertible top compartment on left/right.

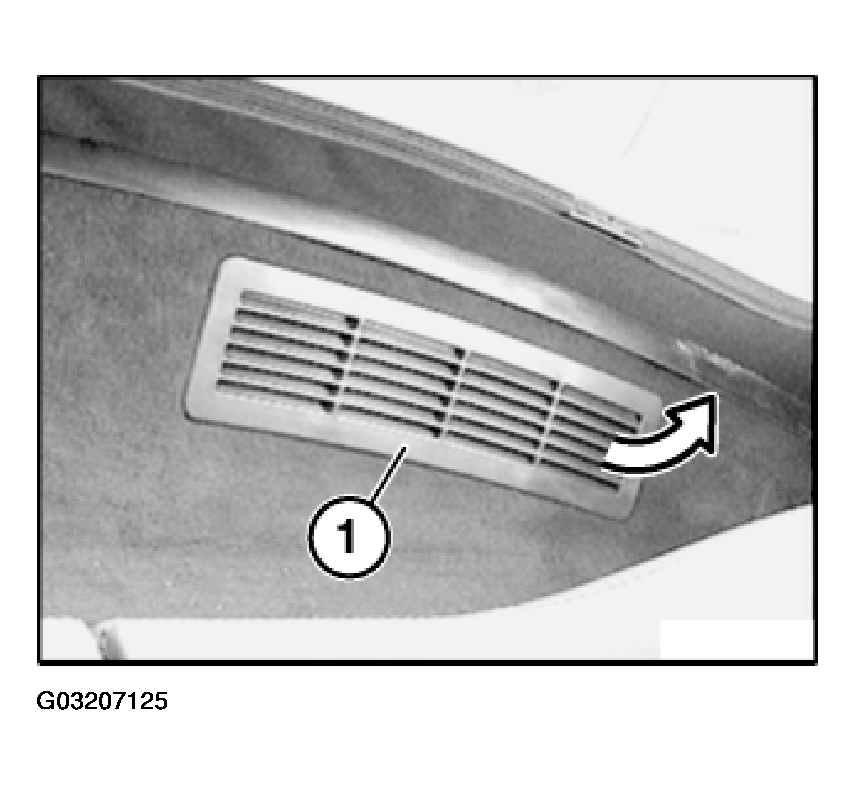

Fig 1: Removing Ventilation Louver

Courtesy of BMW OF NORTH AMERICA, INC.

Remove panel (1) for convertible top compartment completely from clamping frame (2).

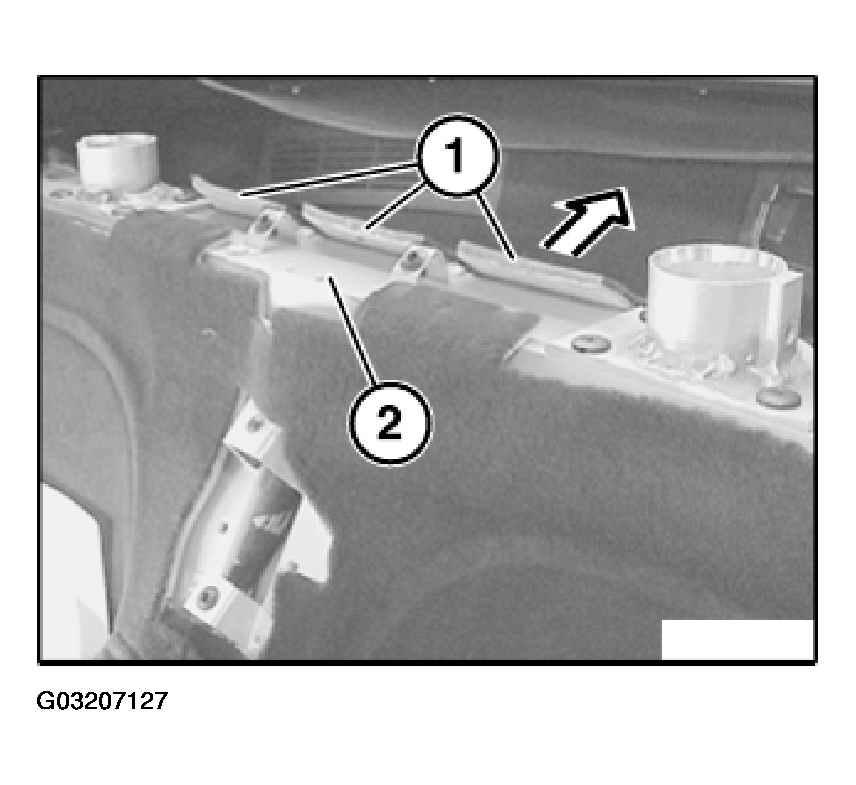

Fig 2: Removing Panel For Convertible Top Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

Detach panel (1) for convertible top compartment from partition wall (2) and remove.

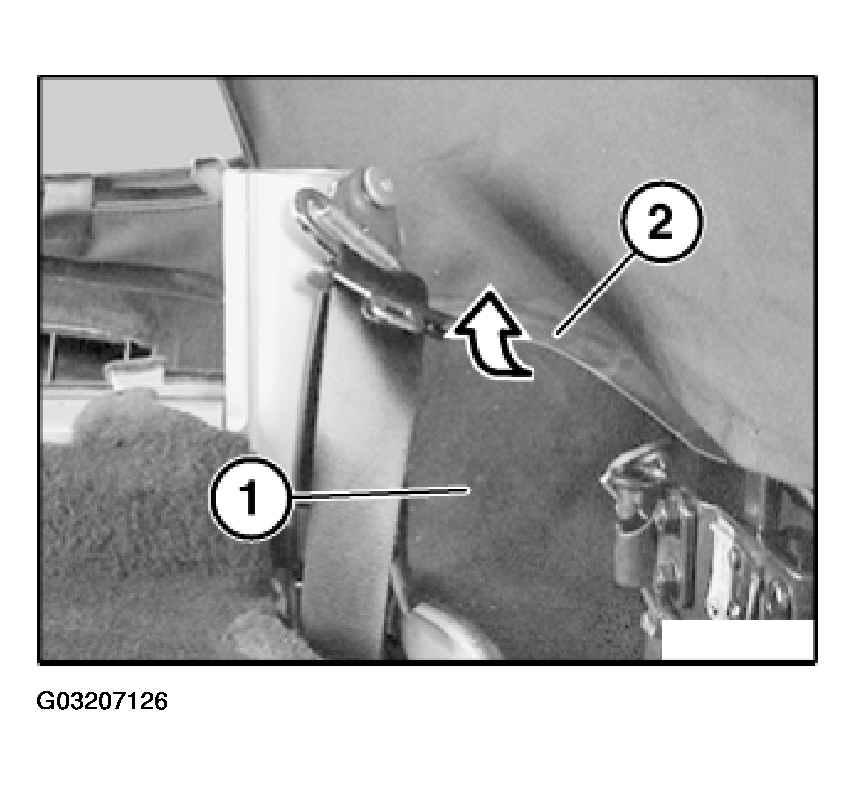

Fig 3: Detaching Panel For Convertible Top Compartment

Courtesy of BMW OF NORTH AMERICA, INC.
