Removal & Installation

WARNING: This page is about a different car, the 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove footwell light (1) and disconnect plug connection. Release all 8 screws and remove speaker cover (2). See Fig 1 .
  2. Detach side padding in footwell from center console (dual lock tape).
  3. Release screws (1). Unlock rotary clips (2) by turning through 90°. Release screws (3) and lower panel. Open OBD 2 socket (4) and press housing out of holder. Unfasten plug connection. See Fig 2 .
  4. To install, reverse removal procedure. When installing speaker cover, install longer screws at bottom.

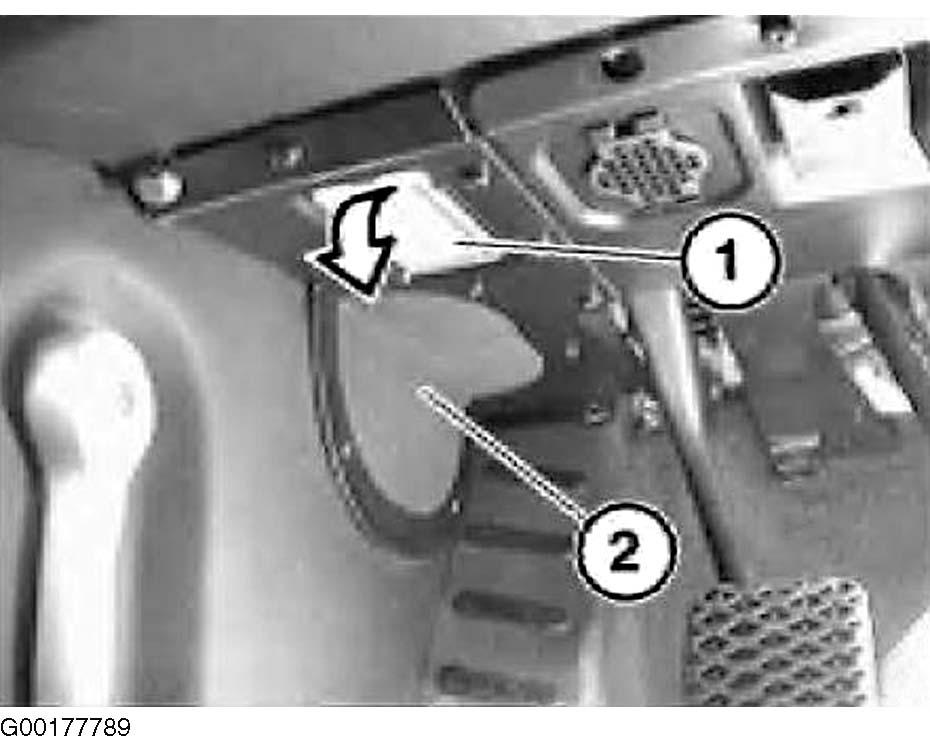

Fig 1: Removing Speaker Cover On Left
G00177789Courtesy of BMW OF NORTH AMERICA, INC.

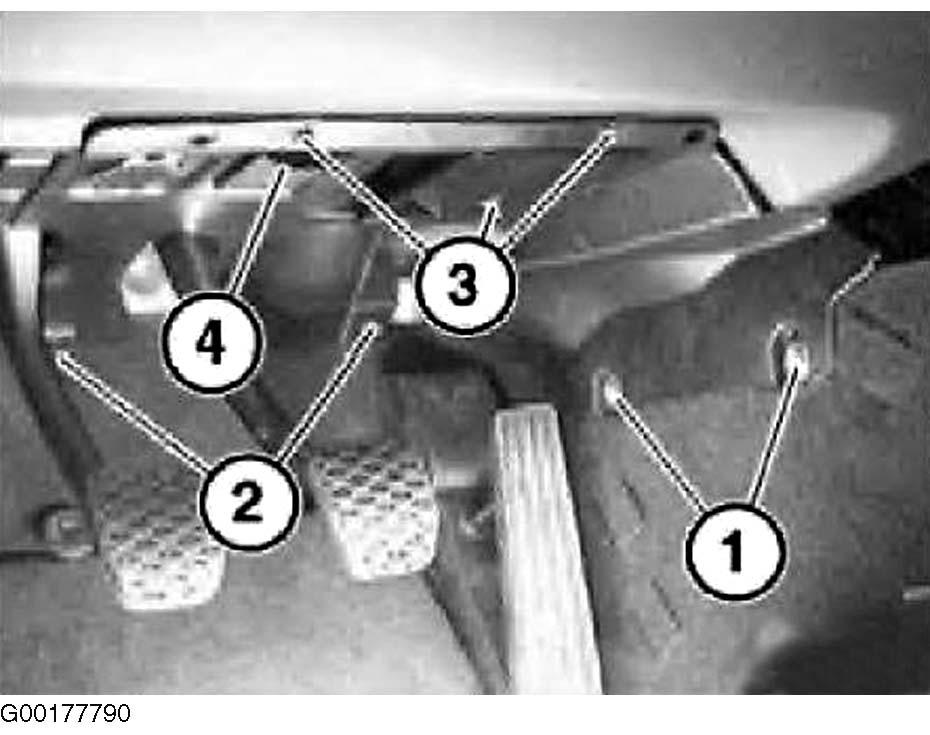

Fig 2: Removing Trim For Pedal Assembly
G00177790Courtesy of BMW OF NORTH AMERICA, INC.
