Steering Spindle Bearing (Upper): Removal

WARNING: This page is about a different car, the 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove steering wheel. See STEERING WHEEL .
Take off collar (1). See Figure .

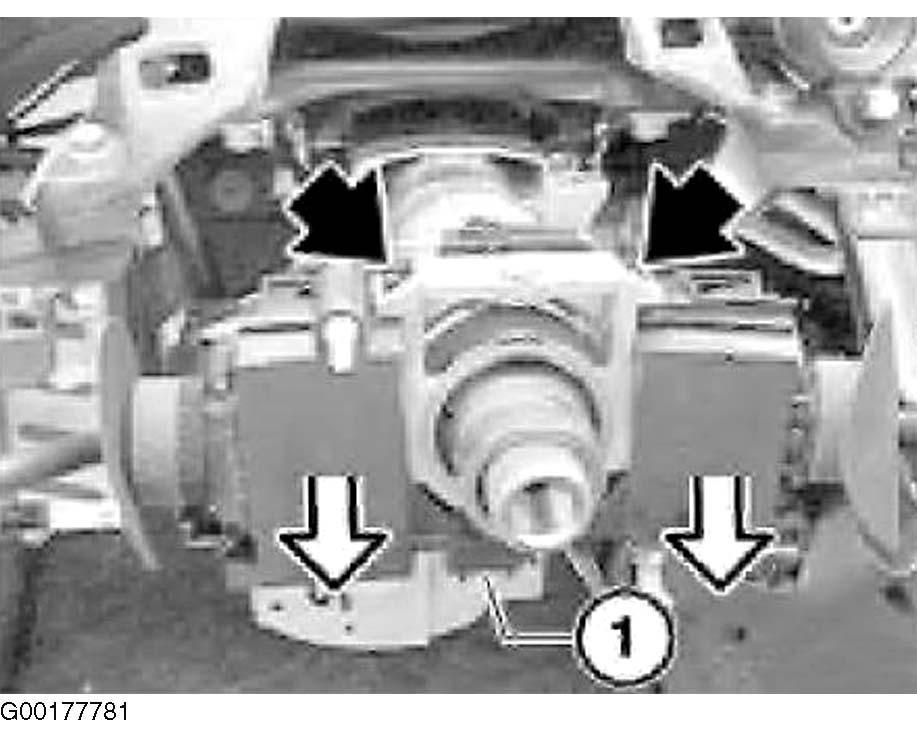

Unscrew bolt (1). Pull off connectors. Press lock inwards and remove switch unit towards bottom. See Figure .
Lever out snap ring (1) and remove sleeve (2). See Fig 1 .
Lift out steering spindle bearing (1). Remove bearing inner sleeve (2). See Fig 2 .
To install, reverse removal procedure. Insert bearing inner sleeve with bevelled end pointing to steering block. See Fig 3 .
Fit sleeve (1). Attach snap ring (2) with special tool (32 1 090) and steering wheel retaining screw (3) until it snaps into place in groove of steering spindle. See Fig 4 .

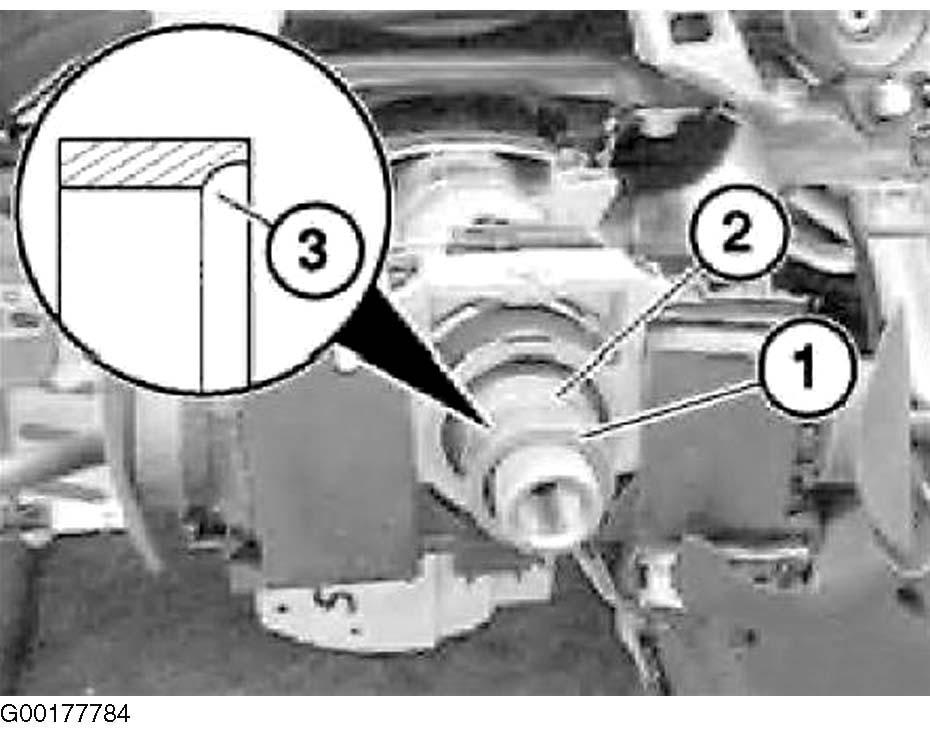

Point Recess (3) of collar ring (1) to snap ring (2). See Figure .

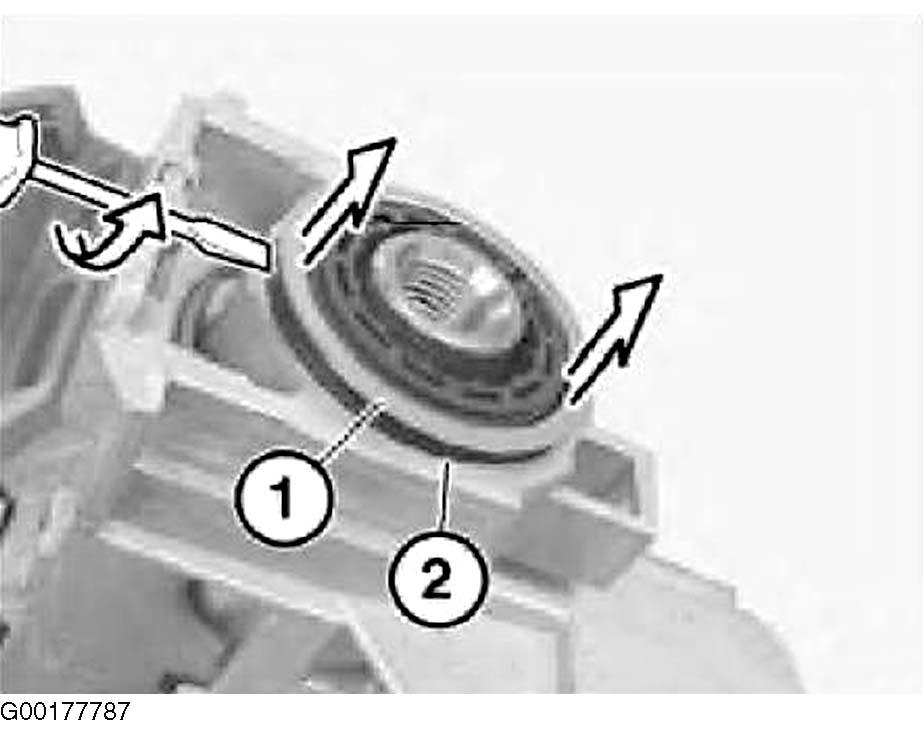

Fig 1: Removing Steering Spindle Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Removing Steering Spindle bearing

Courtesy of BMW OF NORTH AMERICA, INC.

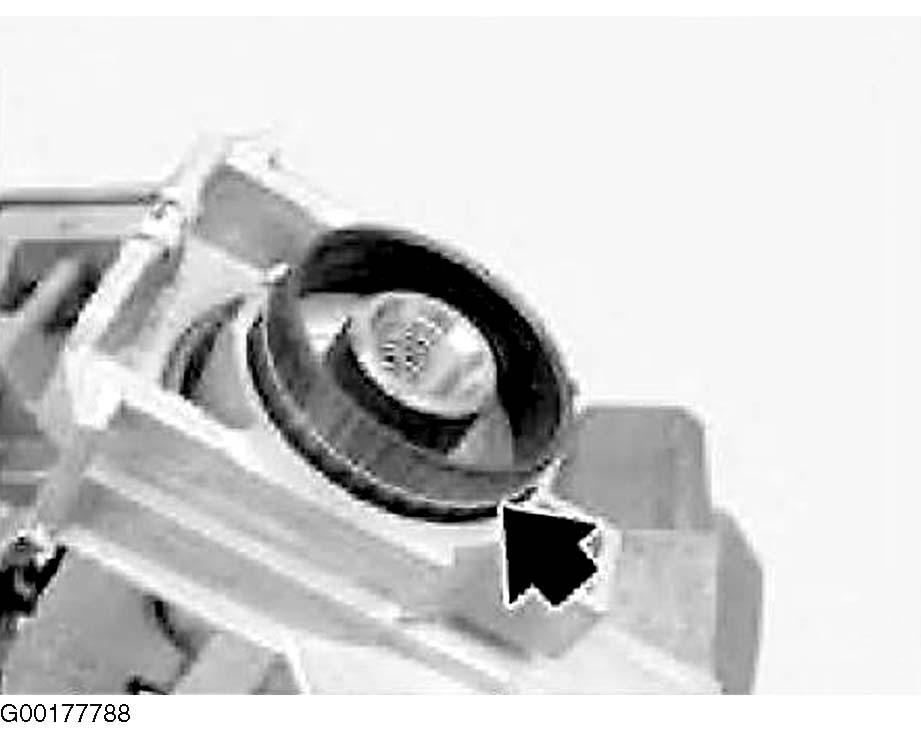

Fig 3: Installing Bearing Inner Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

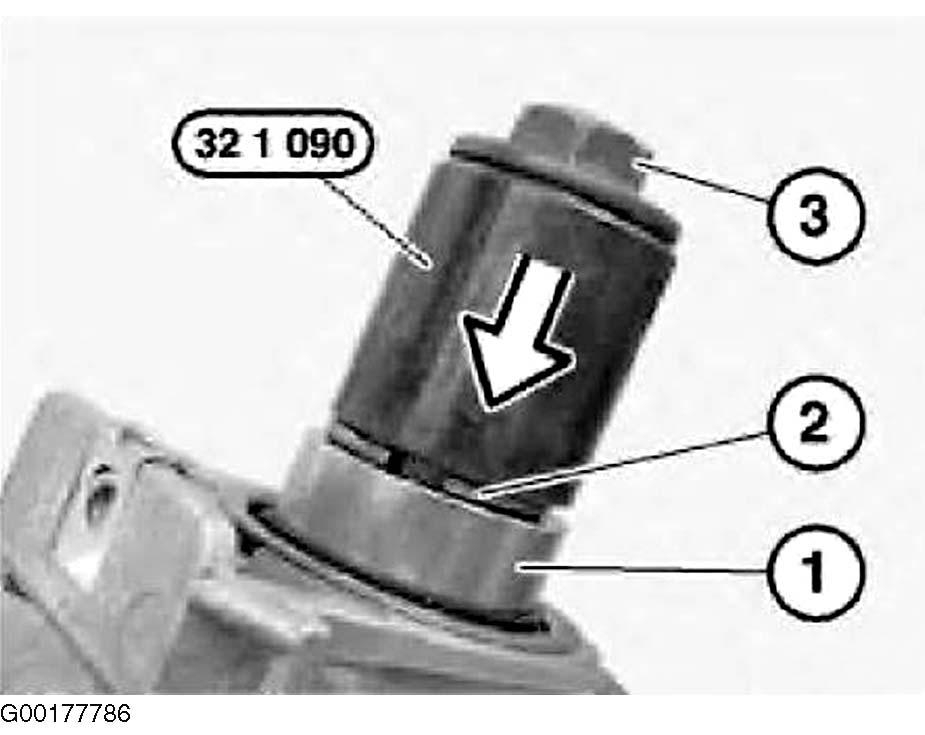

Fig 4: Installing Snap Ring

Courtesy of BMW OF NORTH AMERICA, INC.
