Instrument Panel Trim (Lower Section): Removal

WARNING: This page is about a different car, the 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Detach side padding in footwell from center console (dual-lock tape).
  2. Release screws (1) and remove trim (2) of glove box housing towards bottom. See Fig 1 .
  3. Remove footwell light (1) and disconnect plug connection. Release all 8 screws and remove speaker cover (2). See Fig 2 .
  4. Open glove box. Release screws (1) and lower glove box in direction of seat. See Fig 3 .
  5. Disconnect plug connection (1) from holder (2). See Fig 4 .
  6. Remove AIRBAG module on passenger side. See appropriate AIR BAG RESTRAINT SYSTEMS article.
  7. Lever out cover for instrument panel (1) with special tool (00 9 317) and remove. Disconnect plug connection. See Fig 5 .
  8. Remove knob for light switch (1). Release screws (2) and remove cover (3). See Fig 6 .
  9. Remove instrument cluster (2) by loosening screws (1). Disconnect plug connector. See Fig 7 .
  10. Unscrew bolt (1) for center fresh air grill. Turn adjusting wheels (2) in direction of arrow as far as they will go. Lever out fresh air grill center (3) with special tool (00 9 340) and remove. See Fig 8 .
    11. CAUTION: Cover trim with fabric adhesive tape (1) to prevent damage to instrument panel trim. See Fig 9 .
  11. Loosen heater control screws (2). Remove heating controls (3). Disconnect plug connection. See Fig 9 .
  12. Loosen screws (1) on left fresh air grill. Pull out fresh air grill (2). See Fig 10 . Repeat procedure on right fresh air grill.
  13. Remove trim for pedal assembly. See TRIM PANEL FOR PEDAL ASSEMBLY  .
  14. Release screws (1 & 2) on left. See Fig 11 .
  15. Release screws (1 & 2) in middle. See Fig 12 .
  16. Release screws (1 & 2) on right. See Fig 13 .
  17. Partially detach door rubber on A pillars. Pull panel approximately 3.9" (10cm) in direction of vehicle interior and disconnect plug connection on ENGINE START button. Remove panel towards bottom with assistance of a second person.

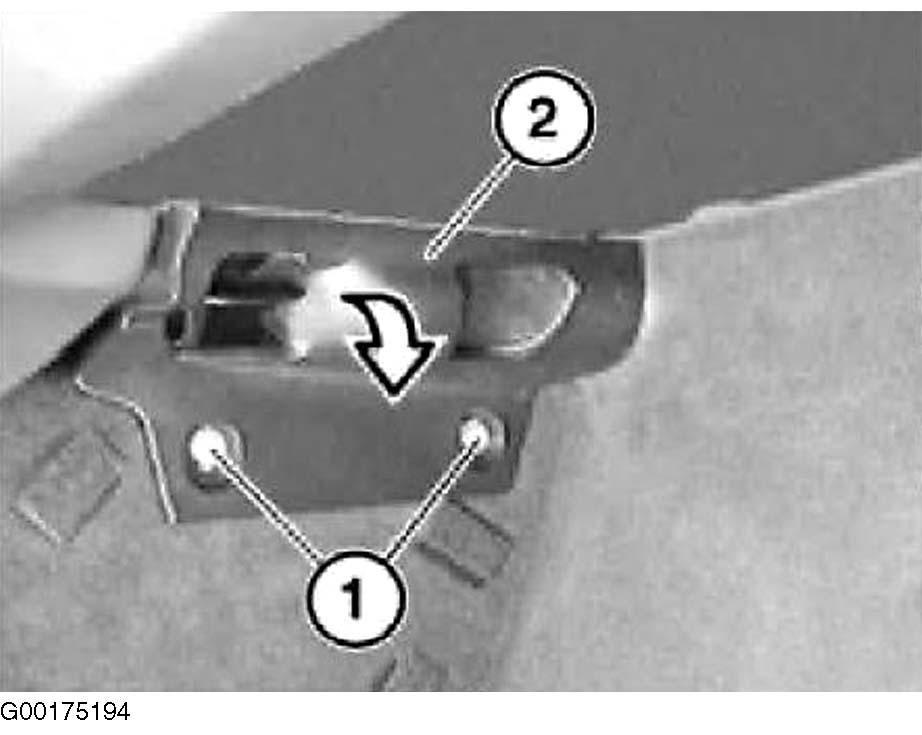

Fig 1: Removing Glove Box Trim
G00175194Courtesy of BMW OF NORTH AMERICA, INC.
Fig 2: Removing Speaker Cover
G00175195Courtesy of BMW OF NORTH AMERICA, INC.

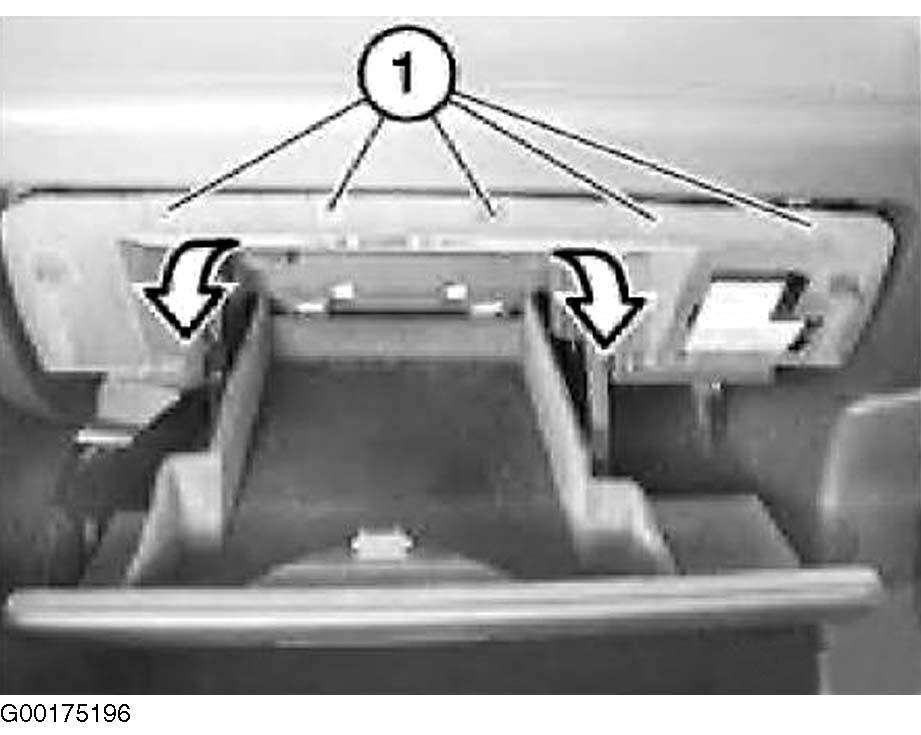

Fig 3: Removing Glove Box
G00175196Courtesy of BMW OF NORTH AMERICA, INC.

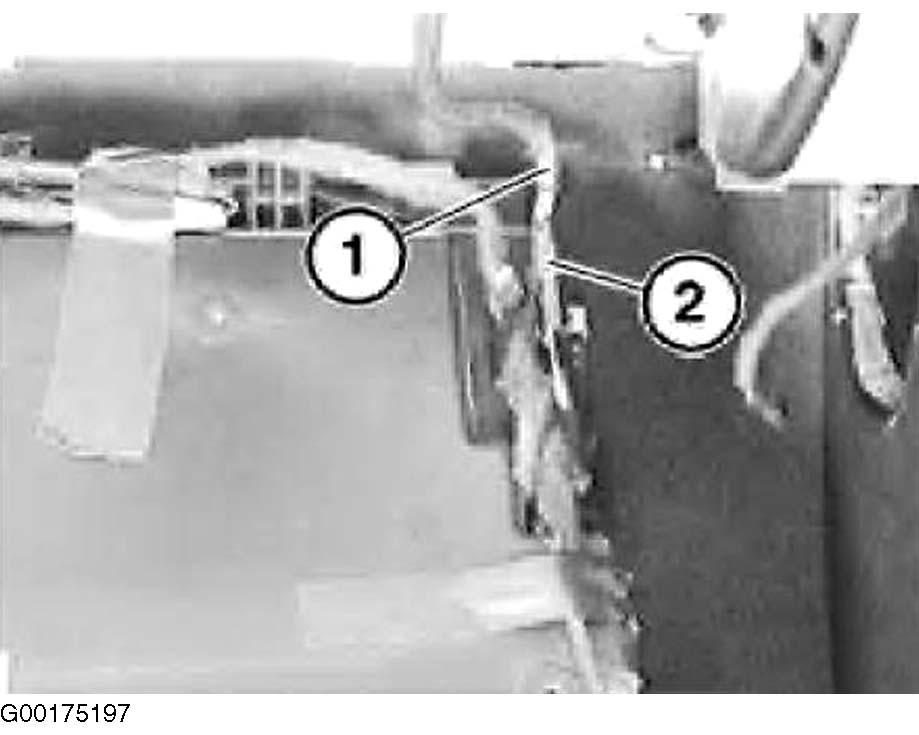

Fig 4: Locating Glove Box Plug Connection
G00175197Courtesy of BMW OF NORTH AMERICA, INC.

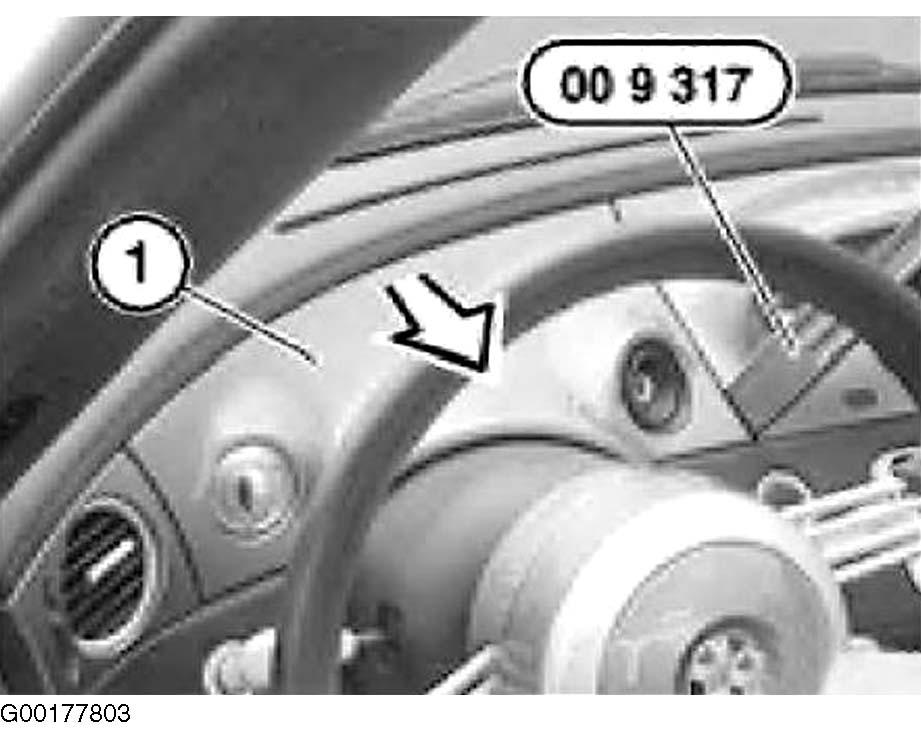

Fig 5: Removing Trim For Instrument Panel
G00177803Courtesy of BMW OF NORTH AMERICA, INC.

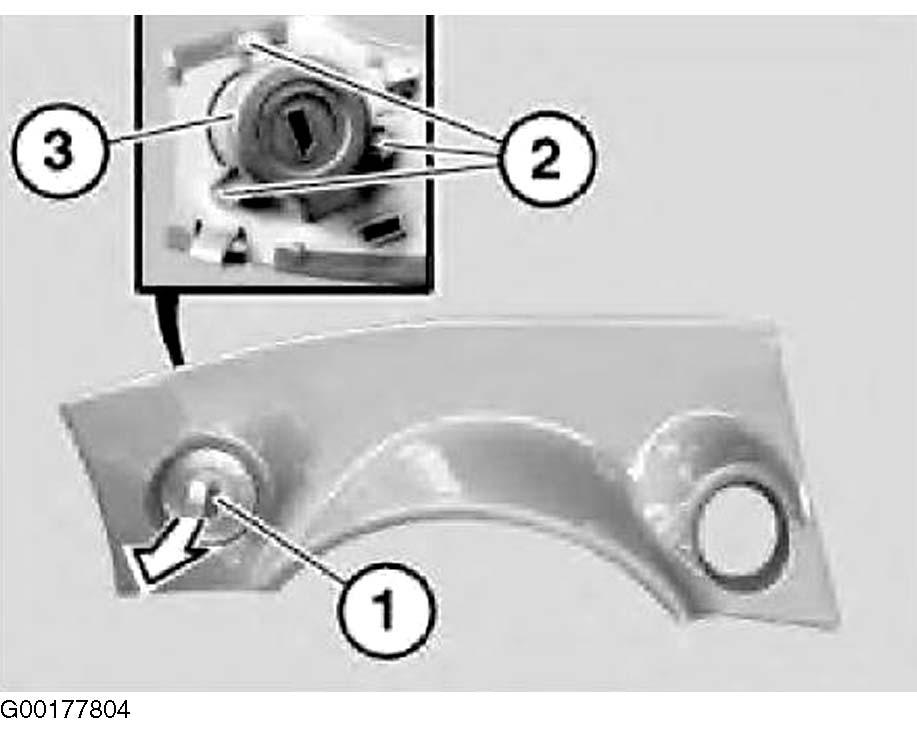

Fig 6: Removing Instrument Panel Cover
G00177804Courtesy of BMW OF NORTH AMERICA, INC.

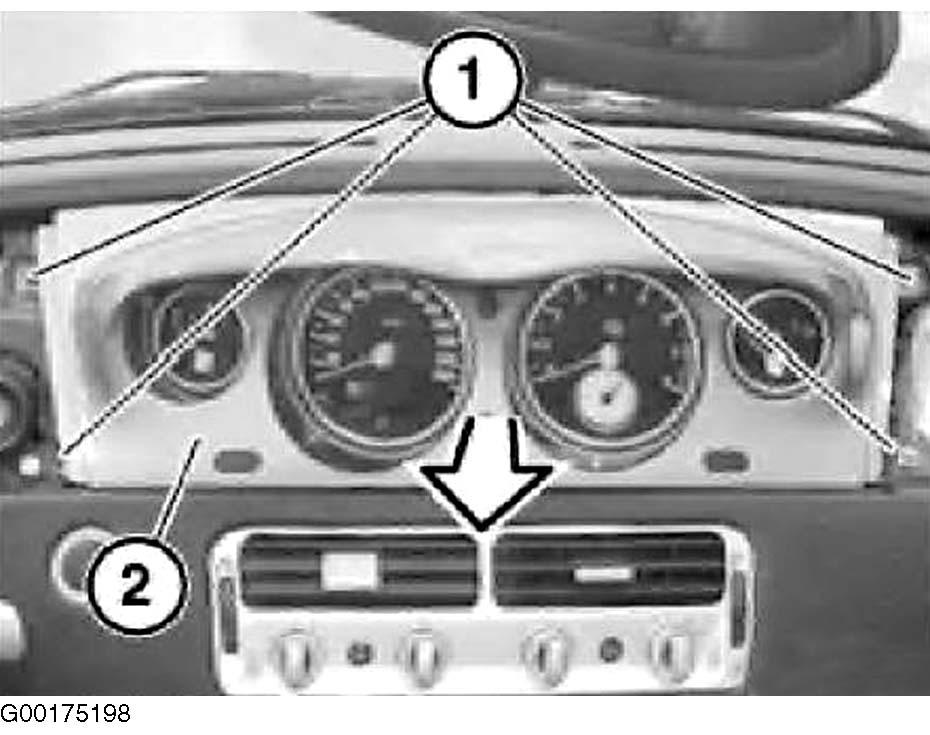

Fig 7: Removing Instrument Cluster
G00175198Courtesy of BMW OF NORTH AMERICA, INC.

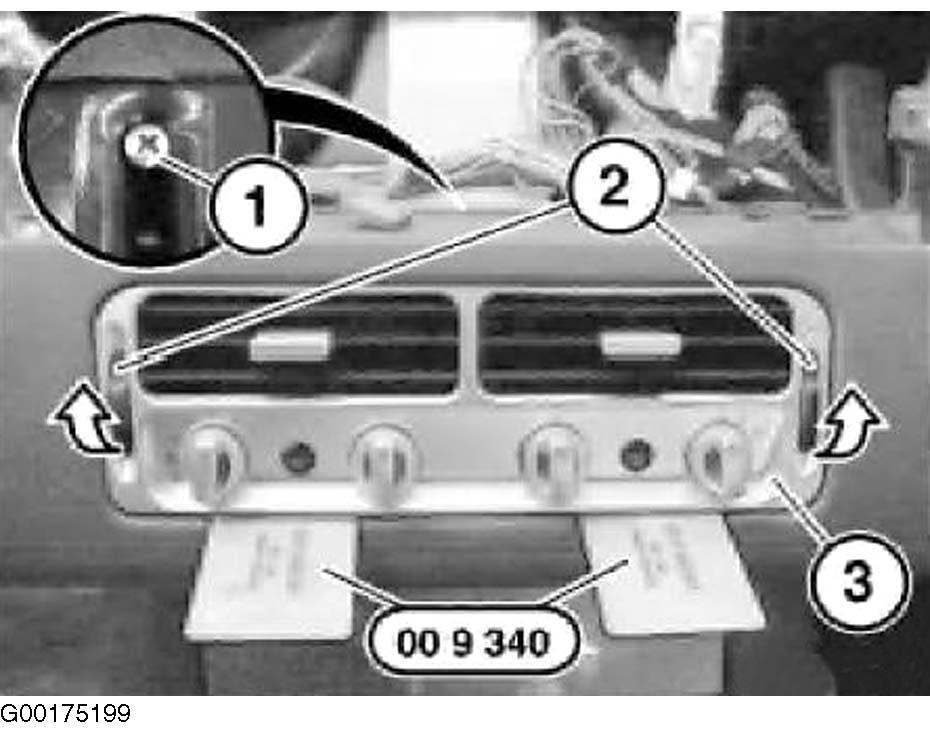

Fig 8: Removing Center Fresh Air Grill
G00175199Courtesy of BMW OF NORTH AMERICA, INC.

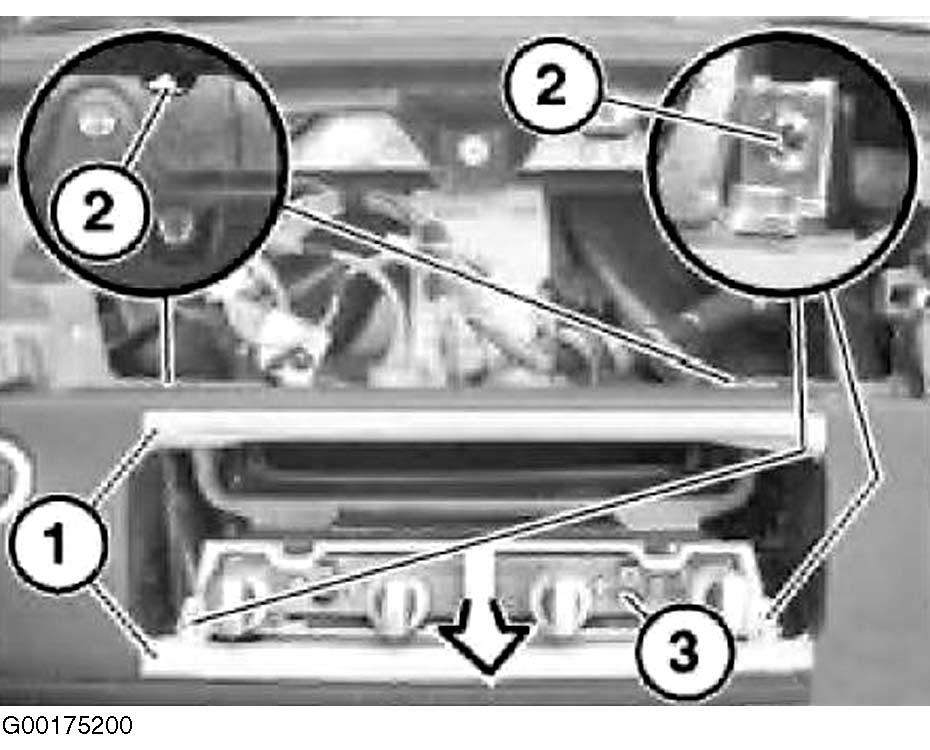

Fig 9: Removing Heater Controls
G00175200Courtesy of BMW OF NORTH AMERICA, INC.

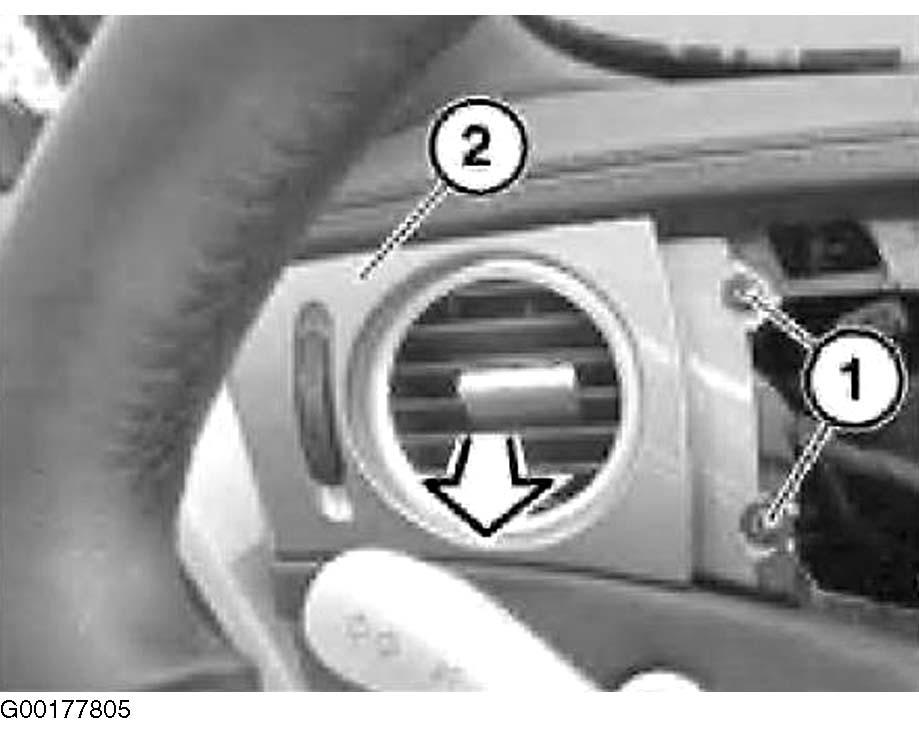

Fig 10: Removing Fresh Air Grill
G00177805Courtesy of BMW OF NORTH AMERICA, INC.

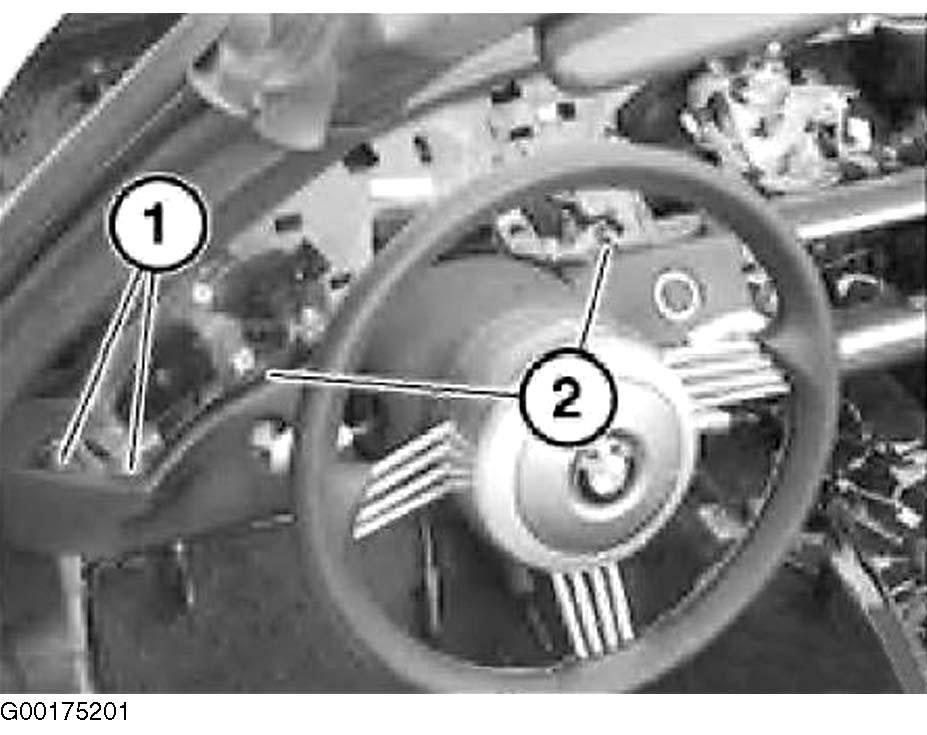

Fig 11: Releasing Instrument Panel Screws On Left
G00175201Courtesy of BMW OF NORTH AMERICA, INC.

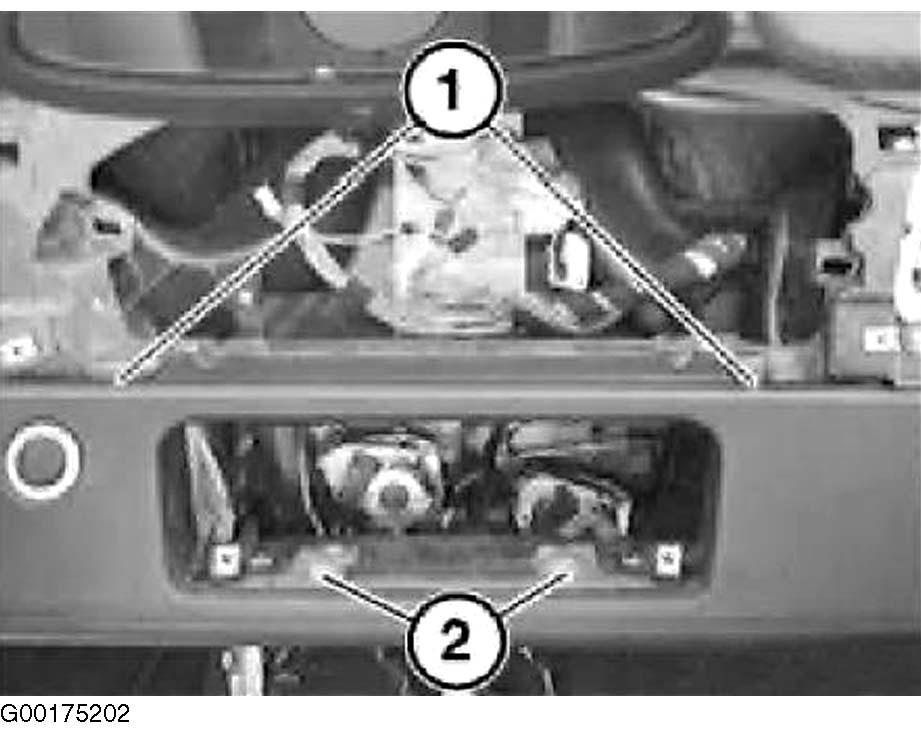

Fig 12: Releasing Instrument Panel Screws In Middle
G00175202Courtesy of BMW OF NORTH AMERICA, INC.

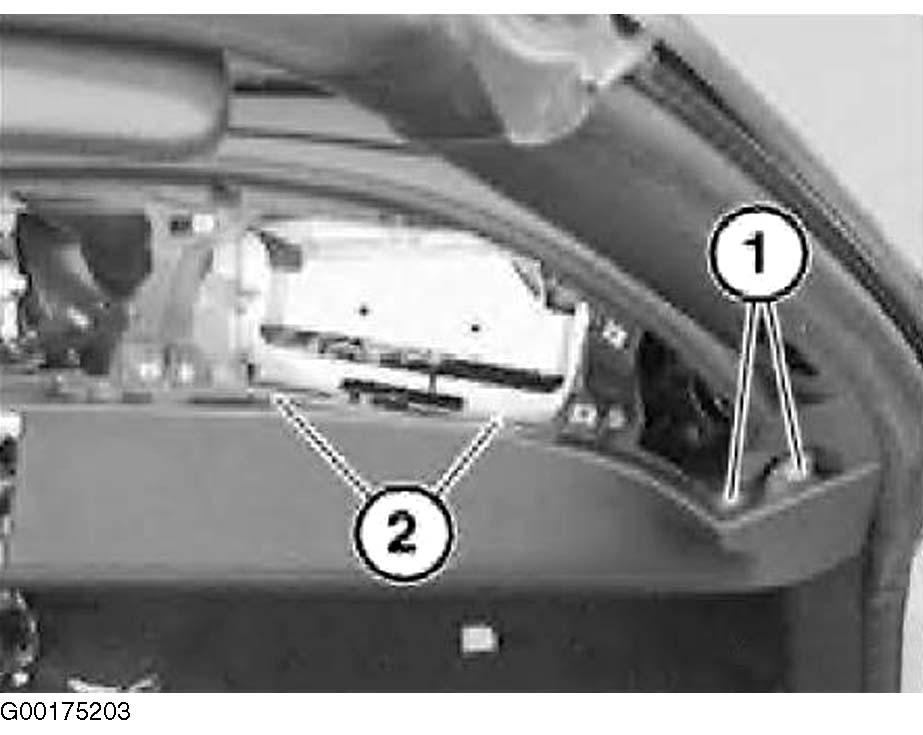

Fig 13: Releasing Instrument Panel Screws On Right
G00175203Courtesy of BMW OF NORTH AMERICA, INC.
