Instrument Panel Trim (Lower Section): Installation

WARNING: This page is about a different car, the 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

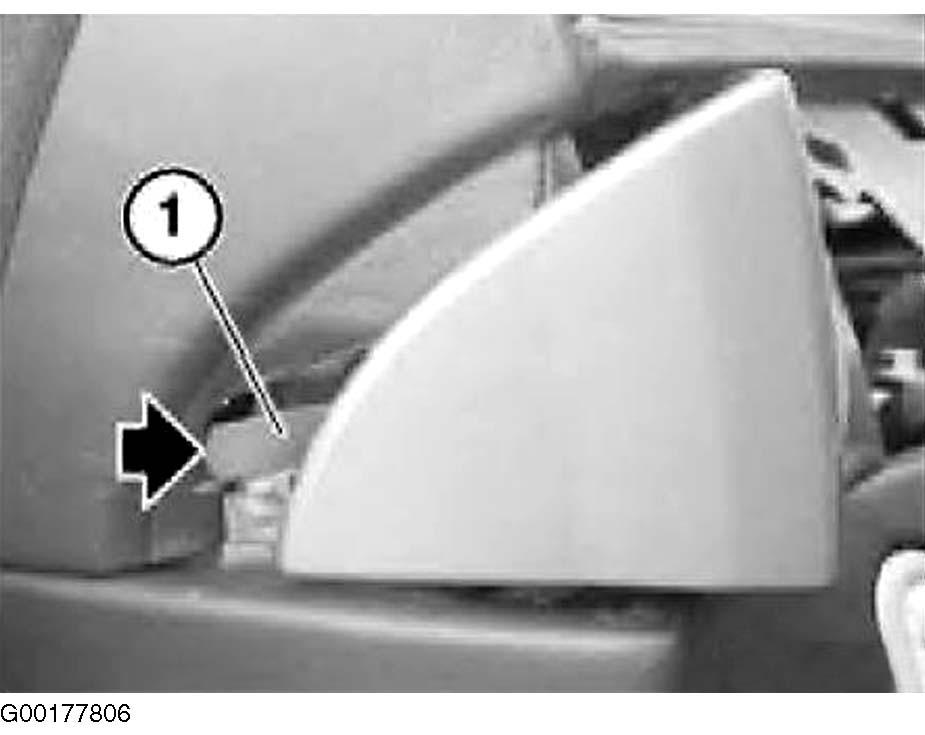

To install, reverse removal procedure. When installing speaker cover, install the longer screws at bottom. See Figure .
When installing fresh air grill, feed retainer (1) into instrument panel trim. See Fig 1 .

Fig 1: Feeding Retainer Into Instrument Panel Trim

Courtesy of BMW OF NORTH AMERICA, INC.
