Contact Ring
WARNING: This page is about a different car, the 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

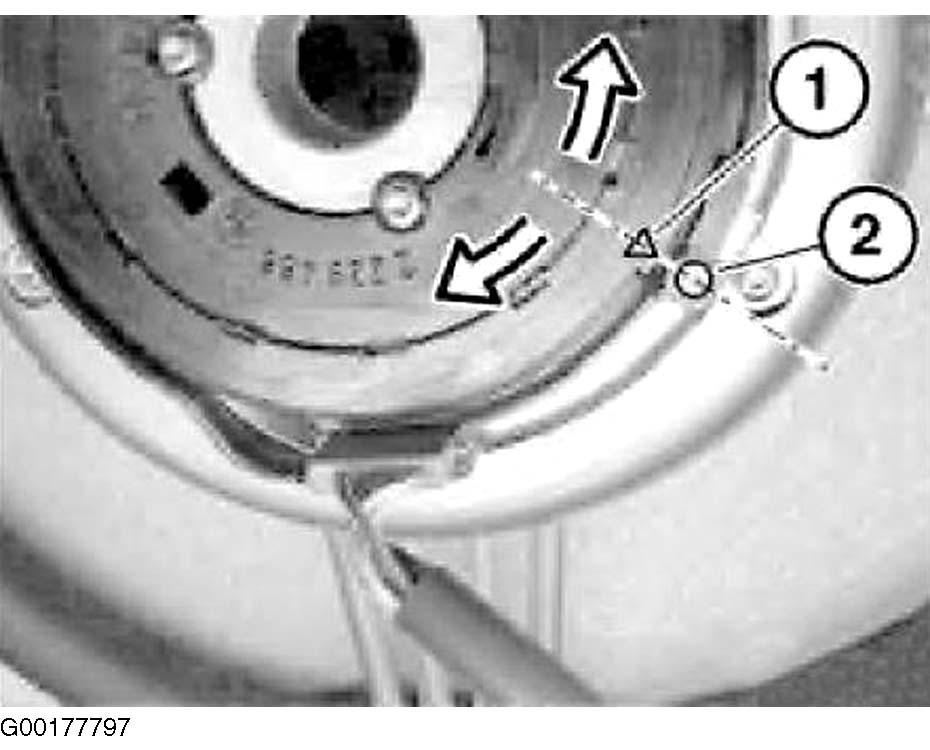

Determine center position of contact ring by halving the total number of turns. Make sure arrow (1) lines up with bore (2). See Fig 1 .
