33 4 420 Support

In conjunction with: 00 2 030

NOTE: For supporting rear differential during removal and installation.

Series: E31, E36, E38, E39, E46, E52, E53, E60, E61, E65, E66, E67, E83, E85, E87, E90, E91, RR1

Order number: 33 4 420

Support

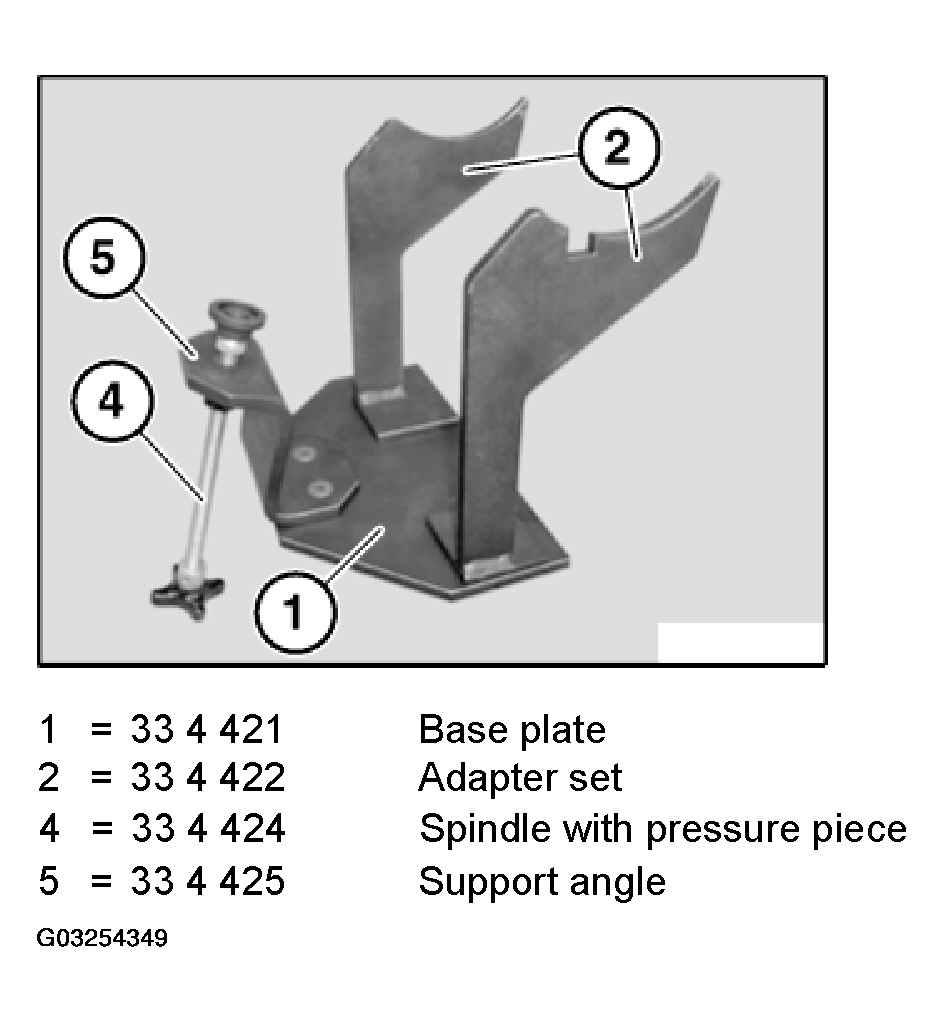

Fig 1: Identifying 33 4 420 Support

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 33 4 421 Base plate

2 = 33 4 422 Adapter set

4 = 33 4 424 Spindle with pressure piece

5 = 33 4 425 Support angle
