33 4 400 Puller fixture

NOTE: For removing inner wheel bearing races on rear axle

Series: E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E91, RR1

SI number: 1 05 99(426)

Order number: 33 4 400

Puller fixture

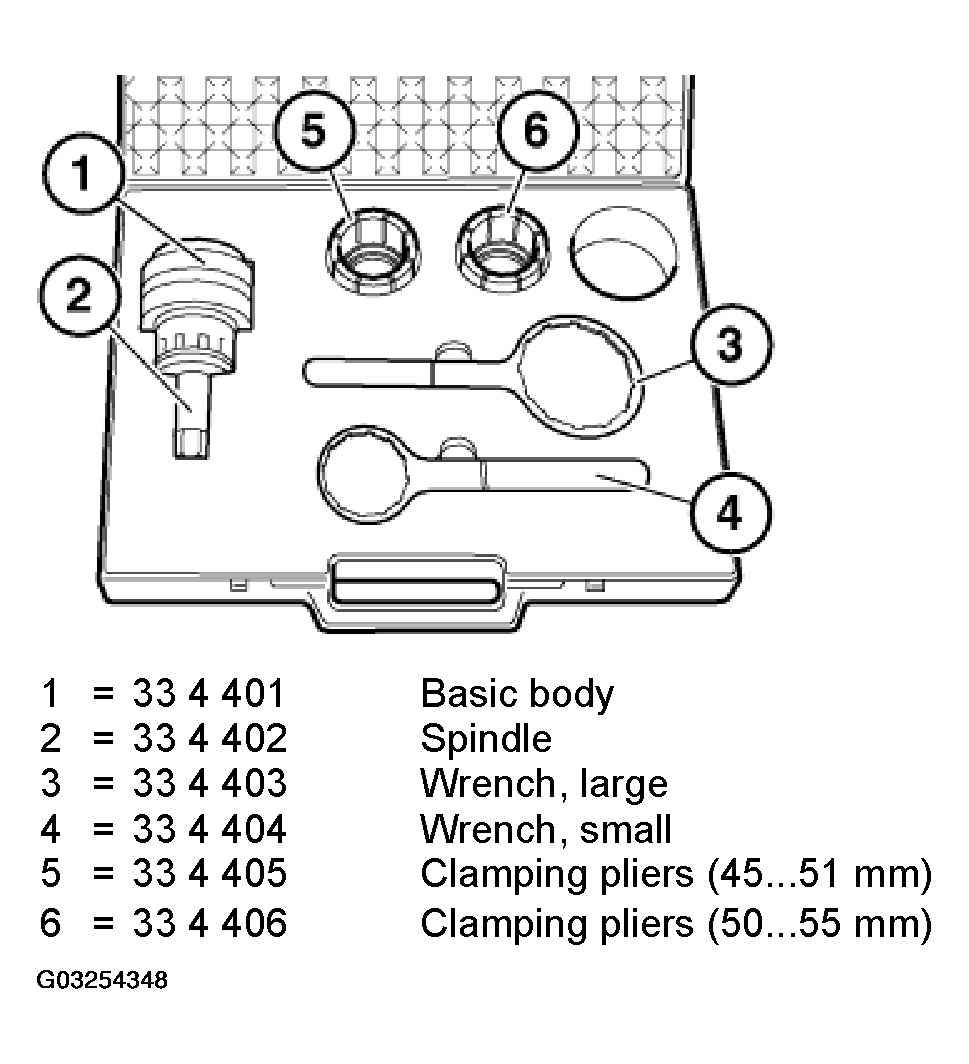

Fig 1: Identifying 33 4 400 Puller Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 33 4 401 Basic body

2 = 33 4 402 Spindle

3 = 33 4 403 Wrench, large

4 = 33 4 404 Wrench, small

5 = 33 4 405 Clamping pliers (45...51 mm)

6 = 33 4 406 Clamping pliers (50...55 mm)

7 = 33 4 407 Clamping pliers (55...61 mm)

NOTE: Model series: E67
