33 4 260 Set of tools

In conjunction with: 33 3 260

NOTE: For removing and installing front wheel bearings in wheel carrier

Series: E53, E67, E90, RR1

Storage location: C41

Order number: 33 4 260

Set of tools

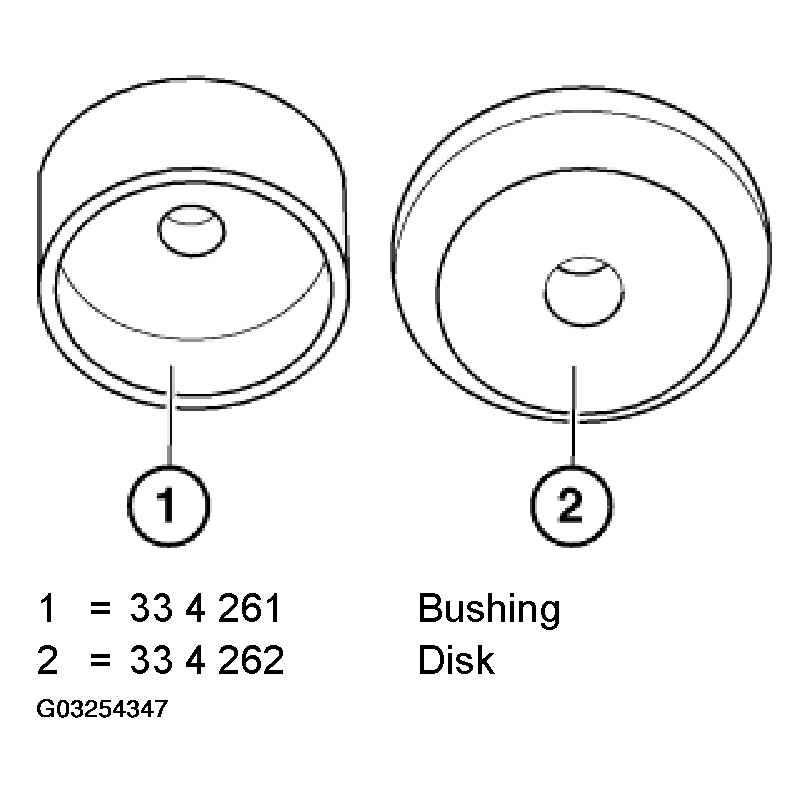

Fig 1: Identifying 33 4 260 Set Of Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 33 4 261 Bushing

NOTE: For extracting wheel bearing from wheel carrier

2 = 33 4 262 Disk

NOTE: For installing wheel bearing in wheel carrier
