Minimum set: Mechanical tools

In conjunction with: 33 2 116

NOTE: For removing rear wheel flange when replacing wheel bearings

Series: E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E38, E39, E46, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, E91, RR1

SI number: 1 06 94 (801)

Order number: 33 4 200

Tool kit / striker fixture

Consisting of:

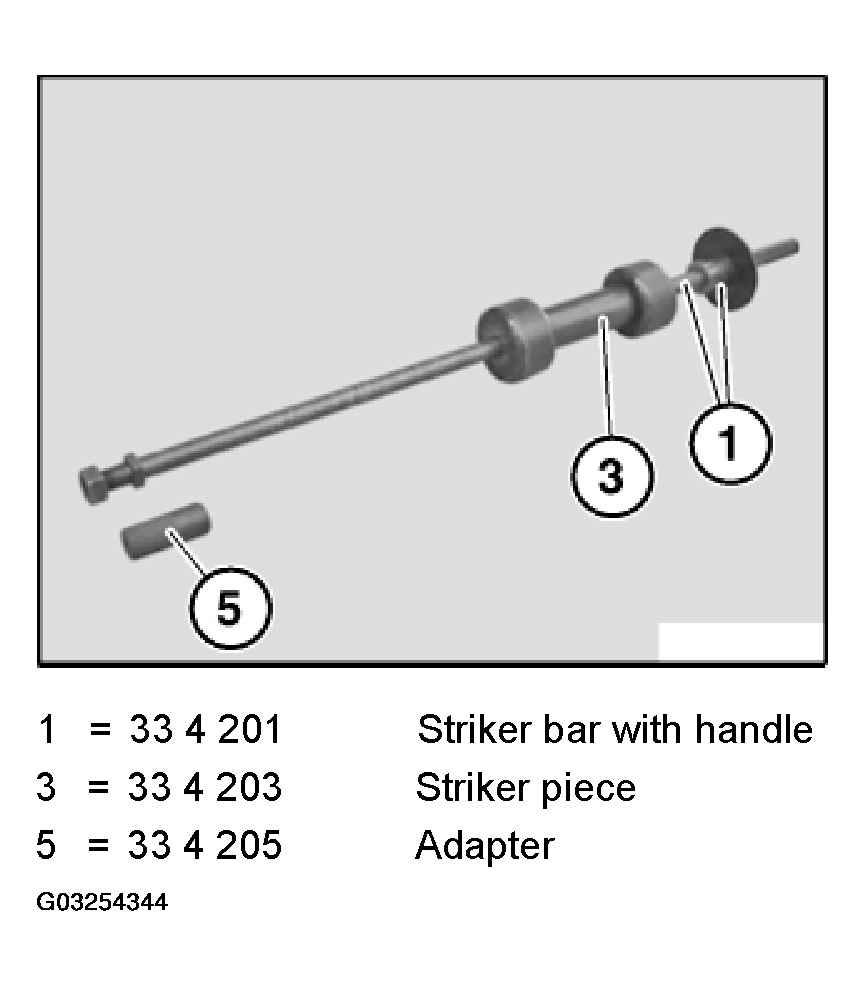

Fig 1: Identifying 33 4 200 Tool Kit / Striker Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

1 = 33 4 201 Striker bar with handle

3 = 33 4 203 Striker piece

5 = 33 4 205 Adapter

NOTE: For extracting wheel guide joint from E53, E83.

In conjunction with: Striker tool 33 4 200

33 4 204 M20 nut and flat M20 nut

NOTE: Nuts 33 4 204 are integrated in 33 4 201. 33 4 204 is only continued as a spare part number.
