Minimum set: Mechanical tools

NOTE: For removing and installing rear wheel bearings in wheel carrier and for fitting drive flange

Series: E31, E34, E38, E46/16, E52, E53, E60, E61, E67, E83, E87, E90, E91, RR1

Storage location: B7, B8

SI number: 1 05 90 (207)

Order number: 33 3 260

Set of tools

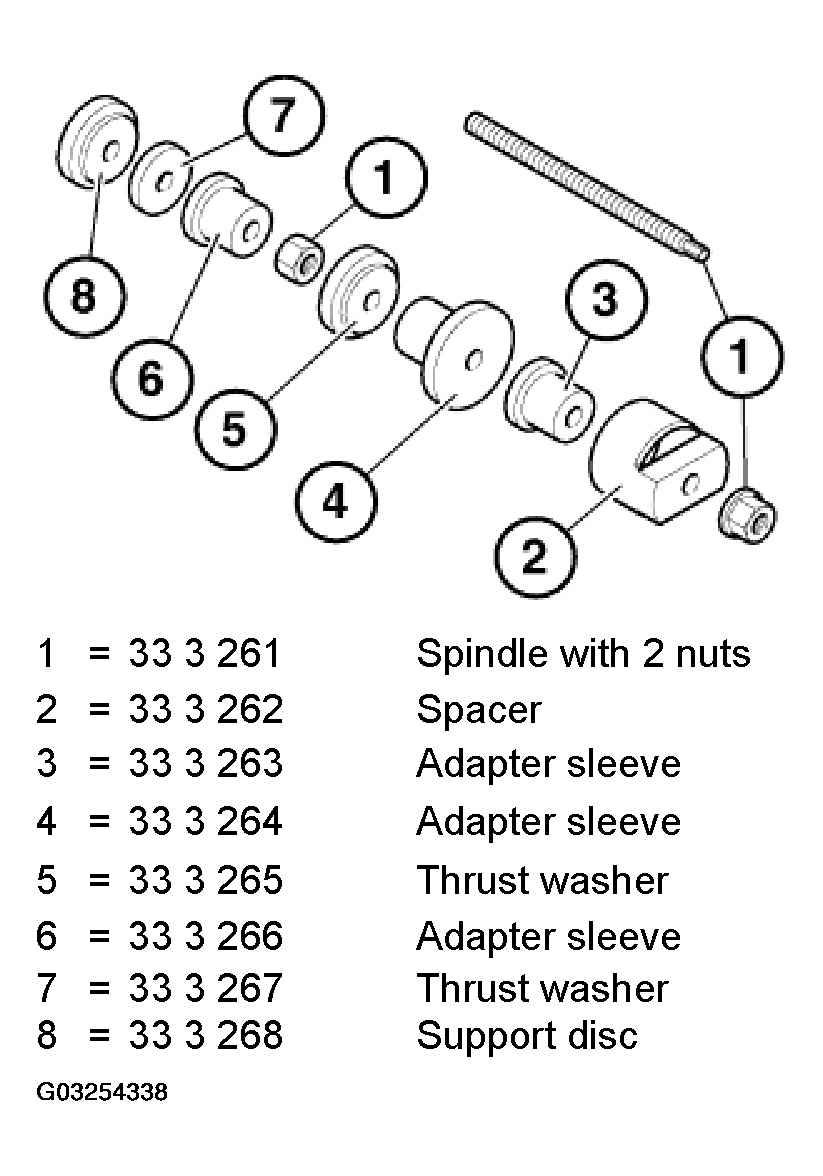

Fig 1: Identifying 33 3 260 Set Of Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 33 3 261 Spindle with 2 nuts

NOTE: Model series: E31, E34, E38, E46/16, E52, E53, E60, E61, E83, RR1

2 = 33 3 262 Spacer

NOTE: For extracting wheel bearing from wheel carrier and for drawing drive flange in Model series: E31, E34, E38, E46/16, E52, E53, E83

3 = 33 3 263 Adapter sleeve

NOTE: For extracting wheel bearing from wheel carrier - Model series: E31, RR1

4 = 33 3 264 Adapter sleeve

NOTE: For drawing wheel bearing into wheel carrier Model series: E31, E34, E38, E46/16, E52, E53, E83, RR1

5 = 33 3 265 Thrust washer

NOTE: For drawing wheel bearing into wheel carrier - Model series: E31

6 = 33 3 266 Adapter sleeve

NOTE: For drawing in drive flange and for extracting wheel bearing Model series: E38, E52, E53, E60, E61, E83, RR1

7 = 33 3 267 Thrust washer

NOTE: For drawing in drive flange Model series: E31, E34, E38, E46/16, E52, E53

8 = 33 3 268 Support disc

NOTE: For drawing in wheel bearing Model series: E38, E52, E53, E60, E61, E83, RR1
