33 2 100 Clamping fixture

NOTE: For gripping output shafts when pressfitting constant-velocity joint

Series: E12, E21, E23, E24, E28, E30, E31, E32, E34, E36, E36/7, E38, E39, E46, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, E91

Storage location: C23

SI number: 1 06 94(801)

Order number: 33 2 100

Clamping fixture

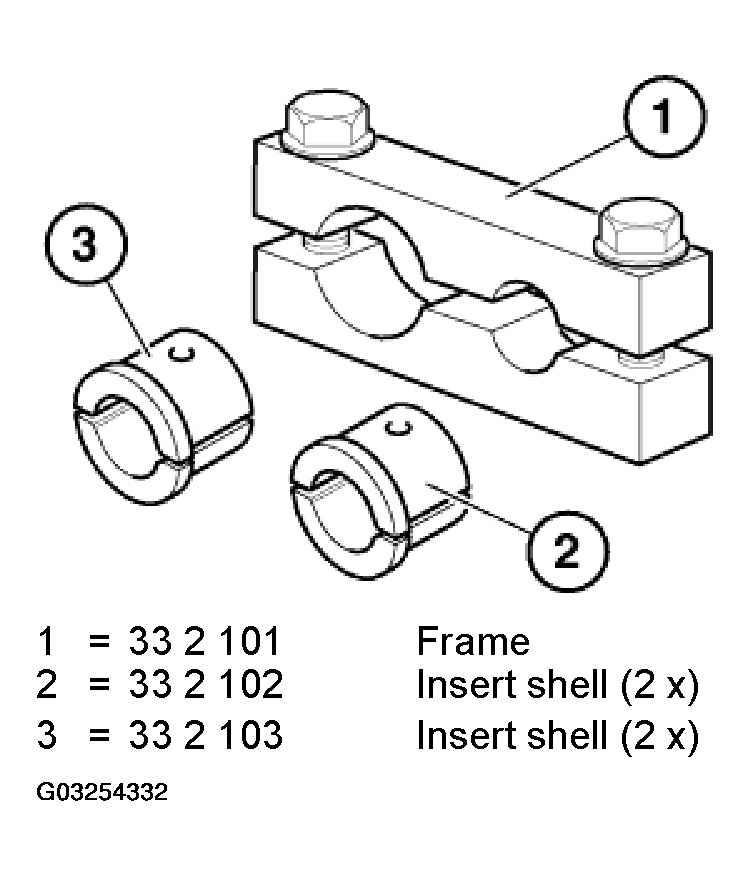

Fig 1: Identifying 33 2 100 Clamping Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 33 2 101 Frame

2 = 33 2 102 Insert shell (2 x)

NOTE: Diameter 30 mm - model series: E38 / model: 730i

3 = 33 2 103 Insert shell (2 x)

NOTE: Diameter 35 mm - model series: all, except E38
