Checking engine oil pressure with pressure gauge

WARNING: This page is about a different variant/trim than selected.

Install special tool 13 3 063 and special tool 13 3 061 (pressure gauge).

Start engine and check engine oil pressure.

Specified value.

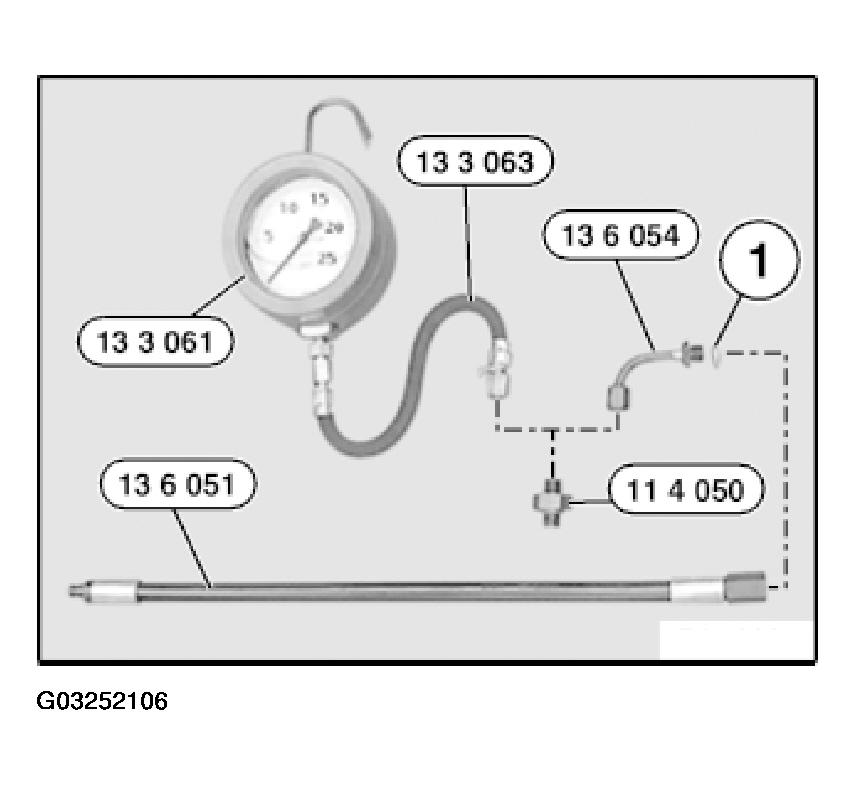

Fig 1: Checking Engine Oil Pressure With Pressure Gauge
G03252106Courtesy of BMW OF NORTH AMERICA, INC.
