84 11 620 Removing and installing transmit-receive unit

Remove luggage compartment floor trim panel, refer to 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL .

Remove flap in luggage compartment trim panel on left, refer to 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

Unscrew nuts (1).

Remove support for side member at rear left (2).

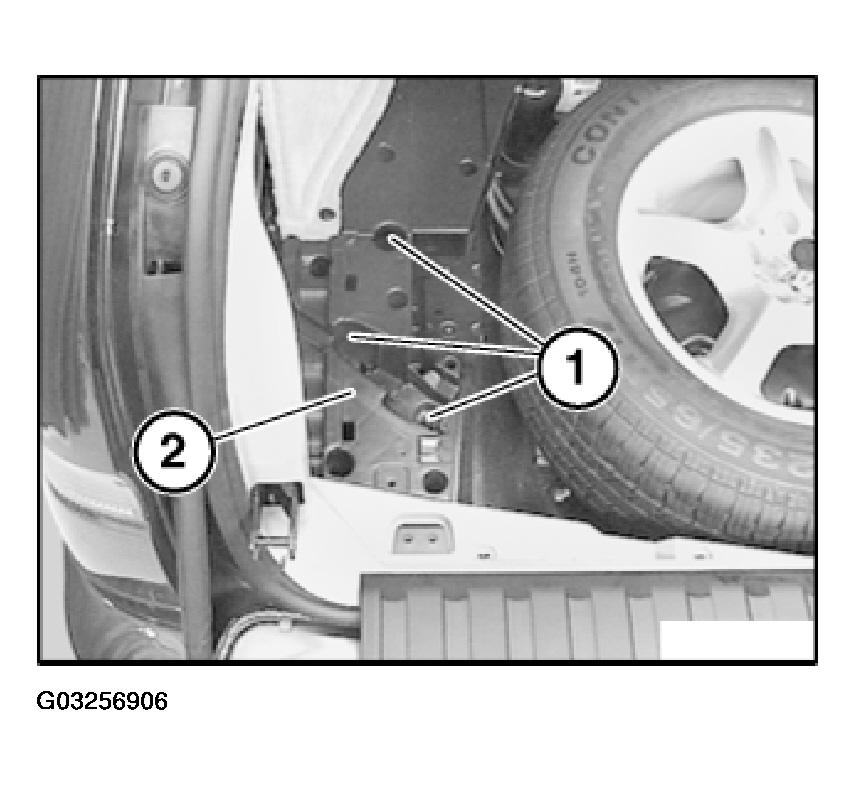

Fig 1: Removing Side Member Support (Rear Left)

Courtesy of BMW OF NORTH AMERICA, INC.

Release cap nuts (1).

Remove retaining bracket (2) and transmit-receive unit (3) in direction of arrow.

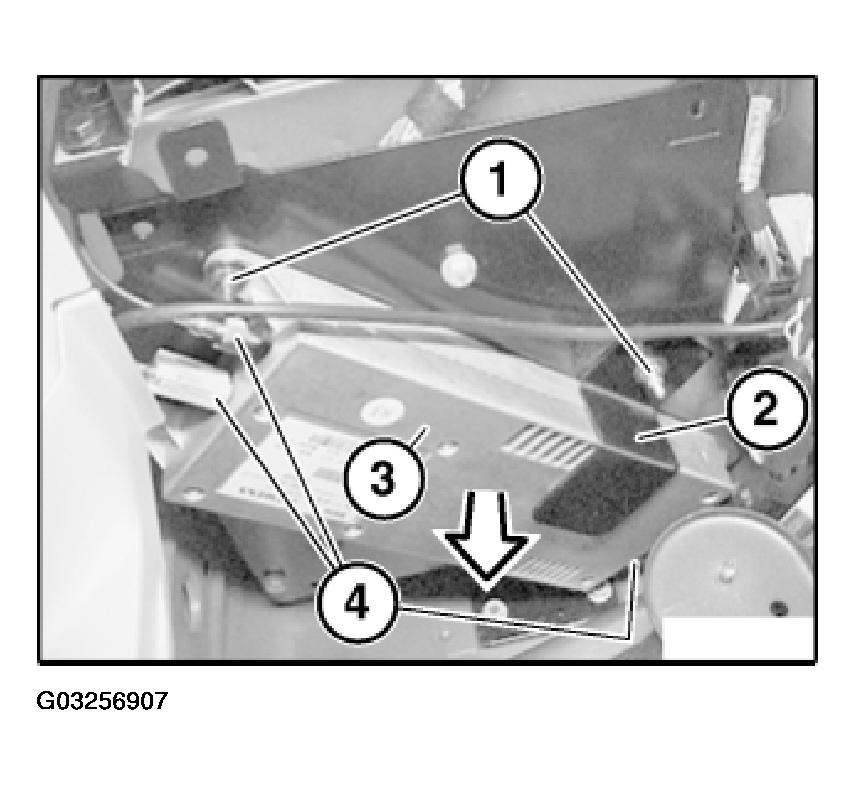

Fig 2: Removing Transmit-Receive Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (4).

Installation:

Replace cap nuts (1).
