Heated Steering Wheel: Operation

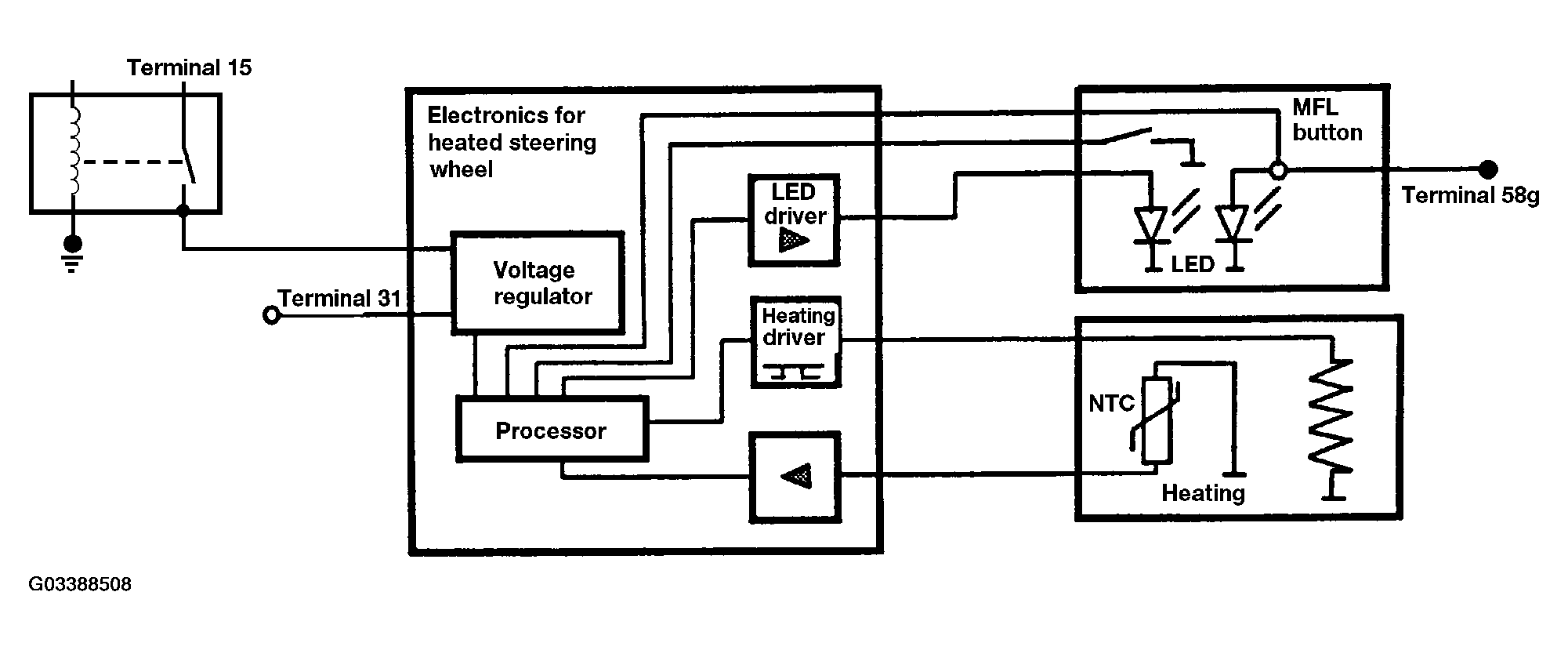

When KL 15 is switched ON, the heated wheel can be switched ON by pressing the button. A green LED illuminates to indicate system operation. Maximum current is supplied and heats the filament to its operating temperature (surface temperature of approximately 900°F). The NTC detects the temperature of the filament and causes the control module to cycle once the wheel is heated. Cycling is carried out with a pulse width modulated signal.
The system is not connected to the diagnostic link, however the control module does monitor operation of the system. If a fault occurs during operation, the system and green LED will switch OFF.
