36 11 520 Removing and installing/replacing RDC control module

Removing glovebox,

refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVEBOX .

Unfasten plug connection (1) and disconnect.

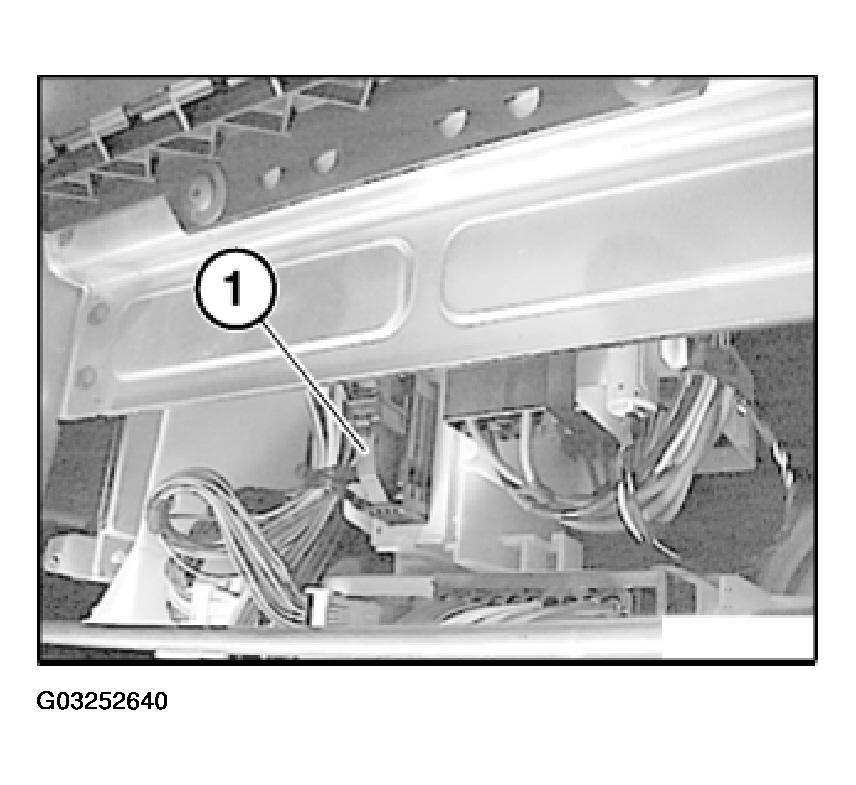

Fig 1: Unfastening Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock (1) downwards.

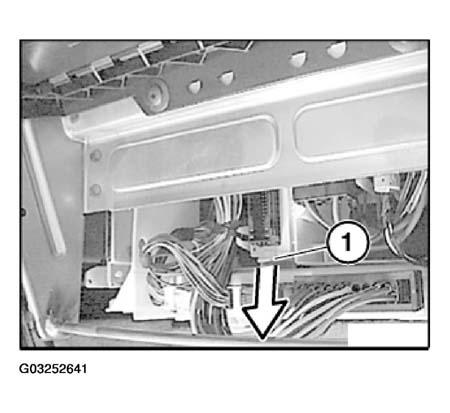

Fig 2: Pressing Lock Downwards

Courtesy of BMW OF NORTH AMERICA, INC.

Tilt RDC control module (1) upwards, turn through 90° and remove vertically towards bottom.

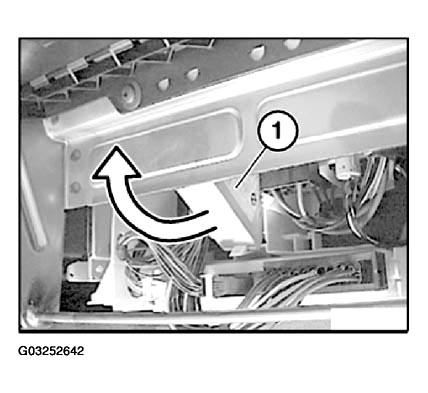

Fig 3: Removing Vertically Towards Bottom

Courtesy of BMW OF NORTH AMERICA, INC.
