Removing wheel electronics

Release Torx socket screw.

Remove wheel electronics.

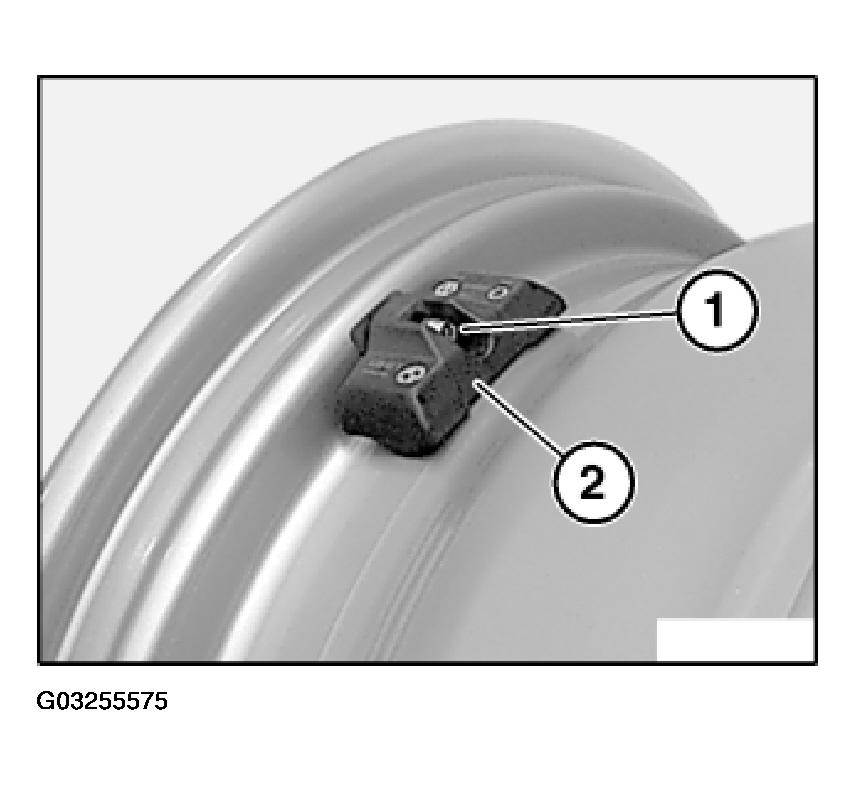

Fig 1: Removing Wheel Electronics

Courtesy of BMW OF NORTH AMERICA, INC.

Check filter surface (1) for pressure measurement for contamination.

NOTE: Wipe filter surface with a clean cloth only. If filter surface is dirty, replace wheel electronics.

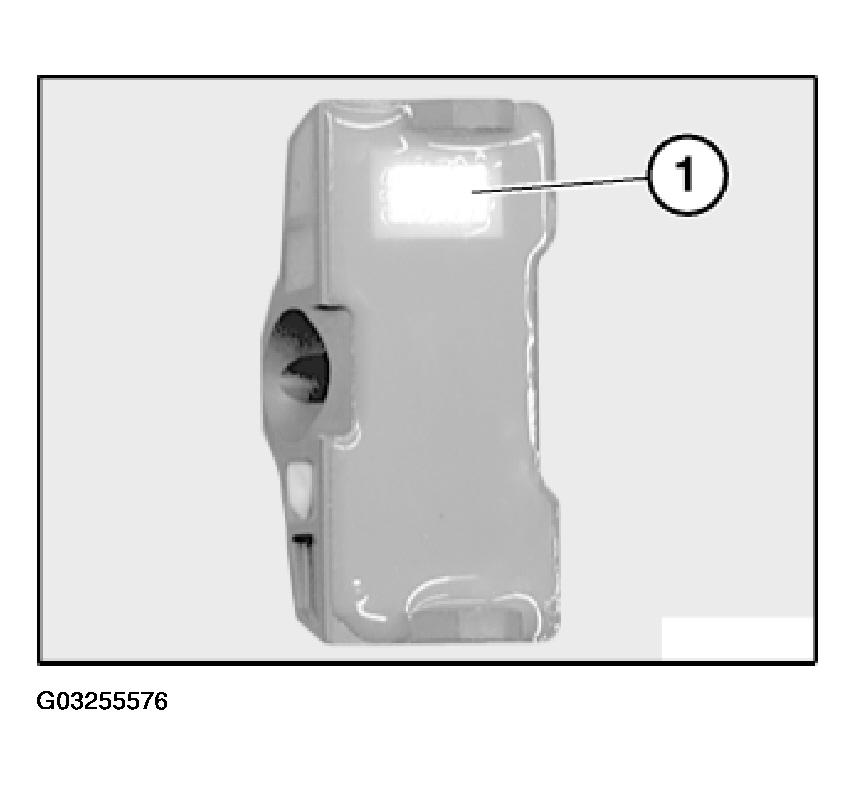

Fig 2: Identifying Filter Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Release union nut with special tool 00 2 190; if necessary, grip valve body (1) at cylindrical section of ball head.

Remove valve body from rim.

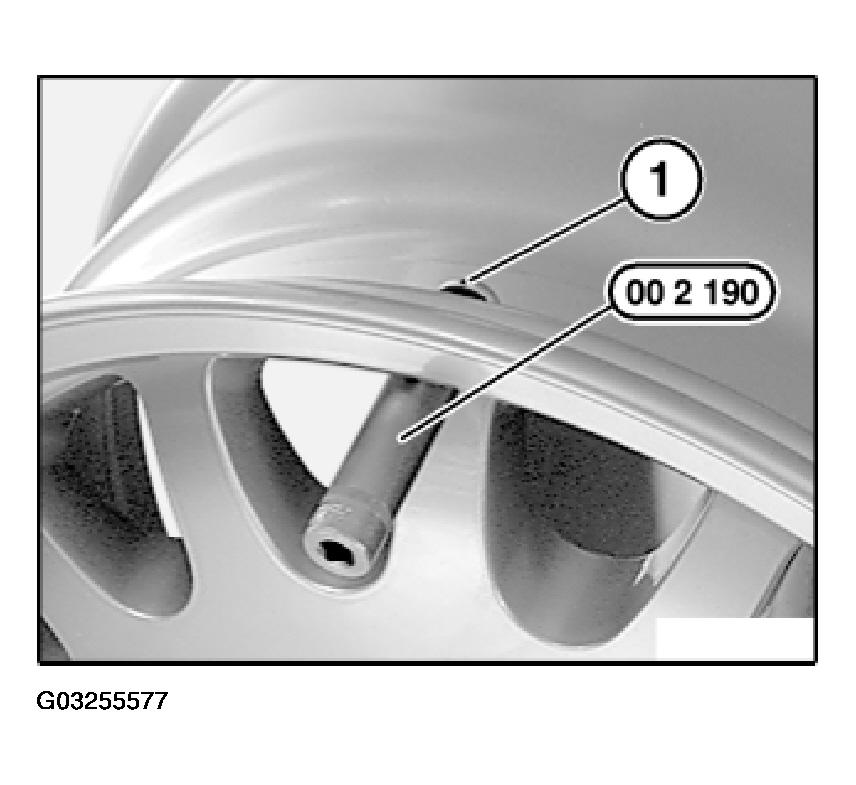

Fig 3: Removing Valve Body

Courtesy of BMW OF NORTH AMERICA, INC.

Remove washer.

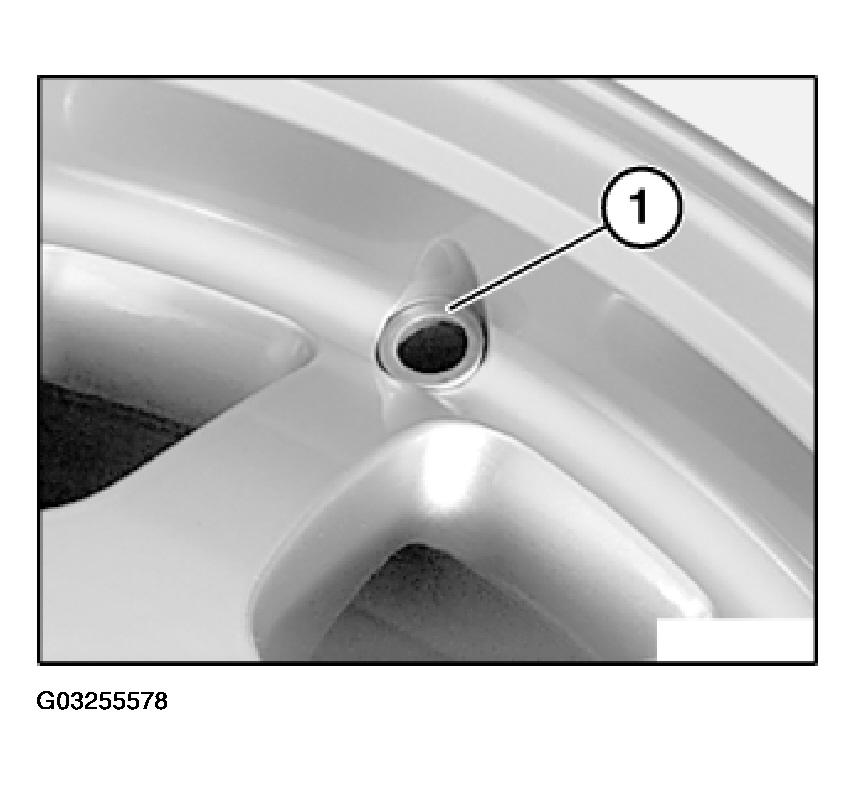

Fig 4: Removing Washer

Courtesy of BMW OF NORTH AMERICA, INC.
