36 11 520 Removing and installing/replacing RDC control module

Remove glovebox. Refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVEBOX .

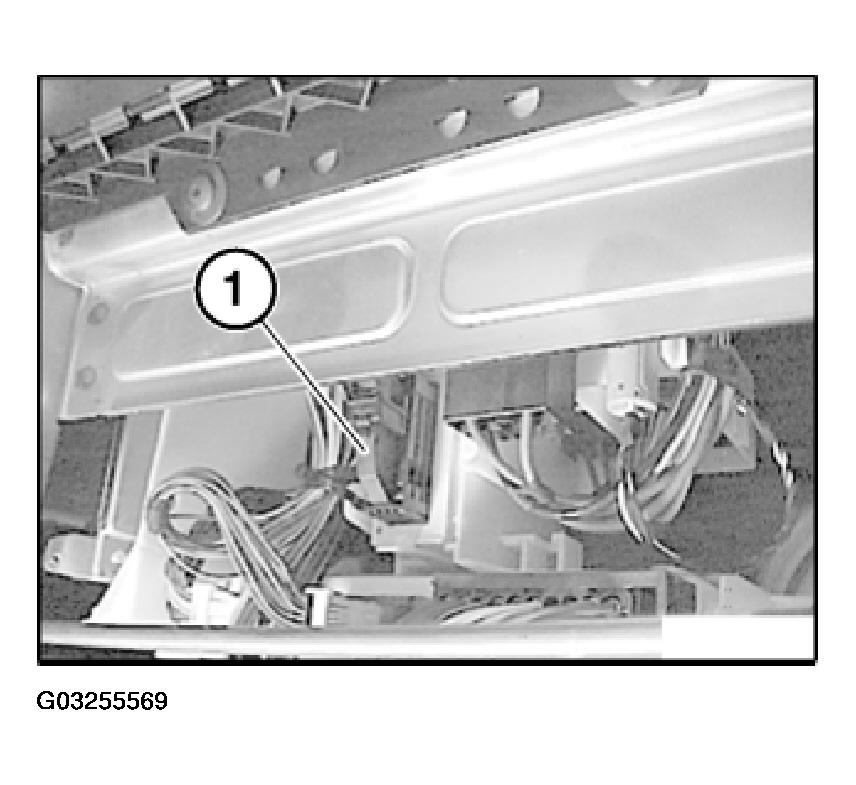

Unfasten plug connection (1) and disconnect.

Fig 1: Removing RDC Control Module Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

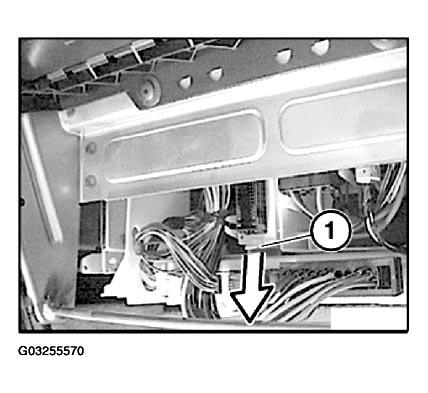

Press lock (1) downwards.

Fig 2: Removing RDC Control Module

Courtesy of BMW OF NORTH AMERICA, INC.

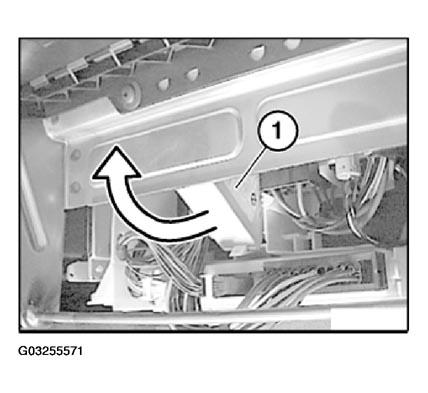

Tilt RDC control module (1) upwards, turn through 90° and remove vertically towards bottom.

Fig 3: Removing RDC Control Module

Courtesy of BMW OF NORTH AMERICA, INC.
