36 10 209 Checking front and rear wheel for face and radial runout: Procedure

Lift vehicle.

Check wheel with special tool 36 1 030 (measuring fixture) for lateral runout.

Check wheel with special tool 36 1 030 (measuring fixture) for radial runout.

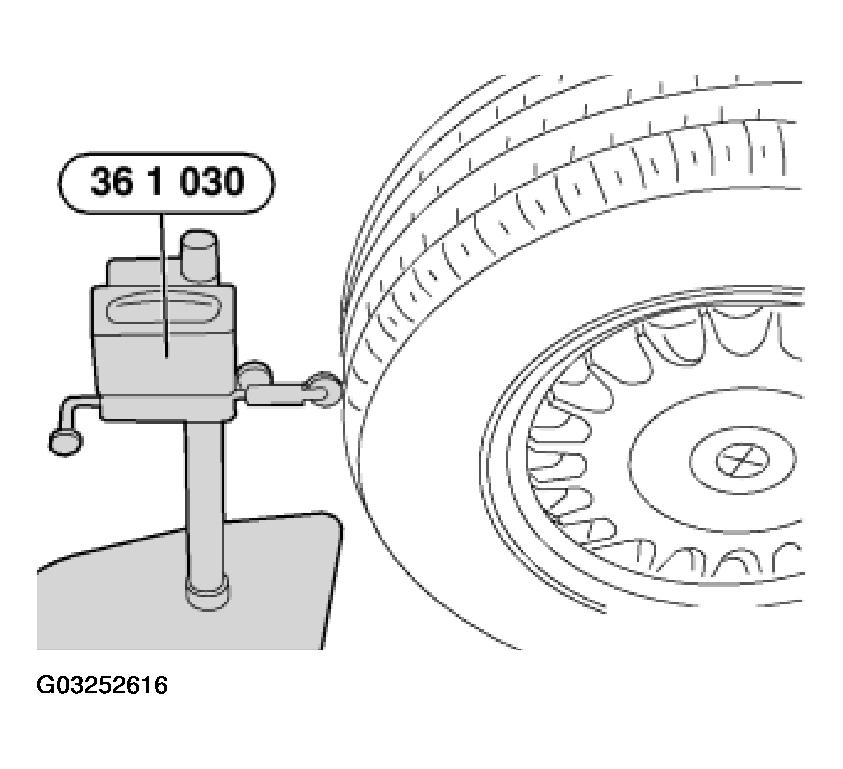

Fig 1: Checking Wheel With Special Tool 36 1 030 For Lateral Runout

Courtesy of BMW OF NORTH AMERICA, INC.

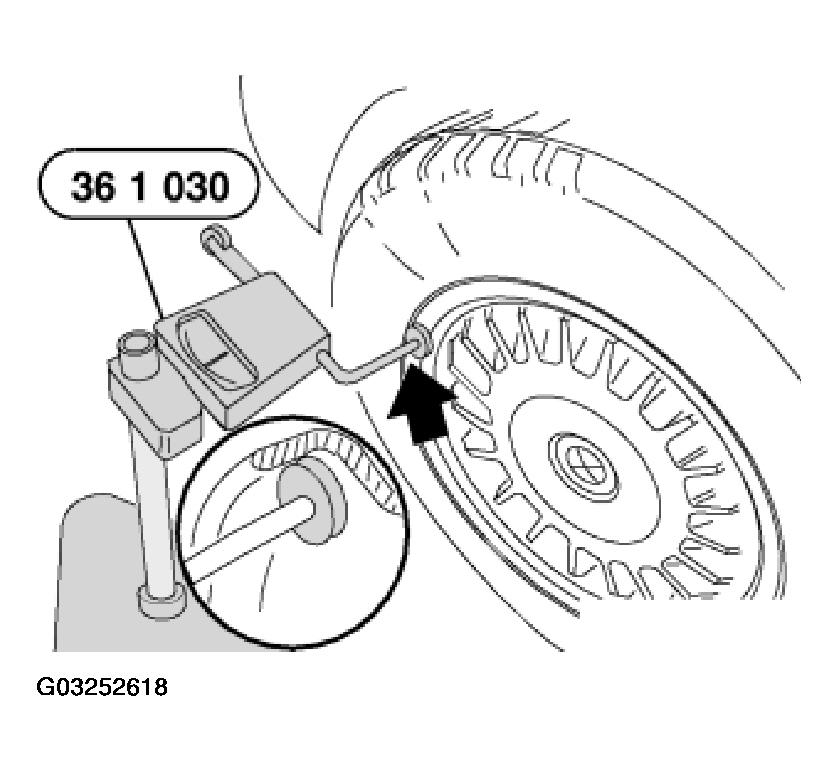

Fig 2: Checking Wheel With Special Tool 36 1 030 For Radial Runout

Courtesy of BMW OF NORTH AMERICA, INC.

If applicable, remove balance weights.

Check lateral runout of rim with special tool 36 1 030 (measuring fixture).

Check radial runout of rim with special tool 36 1 030 (measuring fixture).

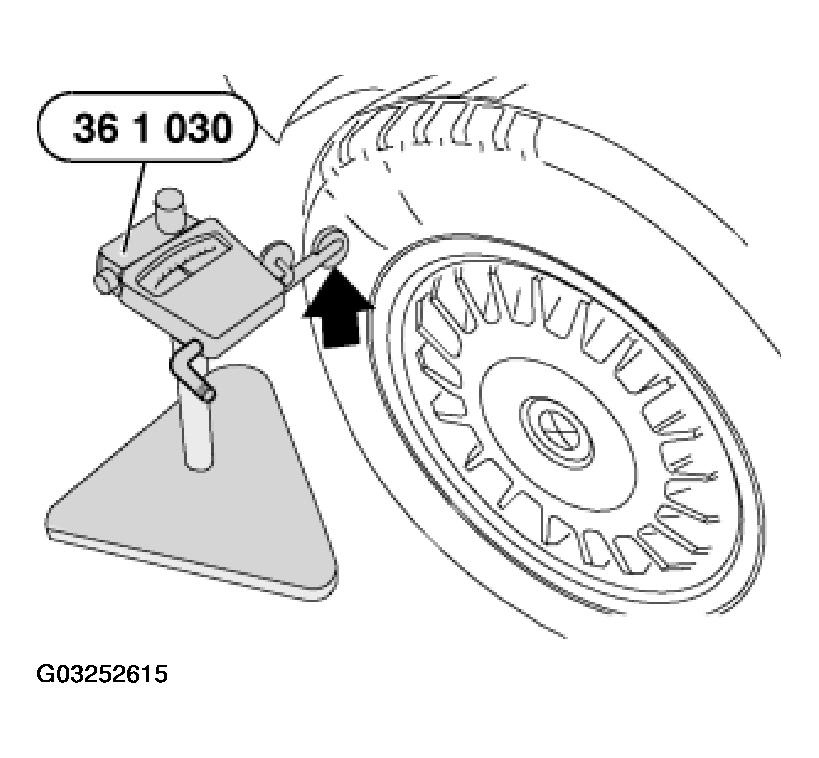

Fig 3: Checking Lateral Runout Of Rim With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

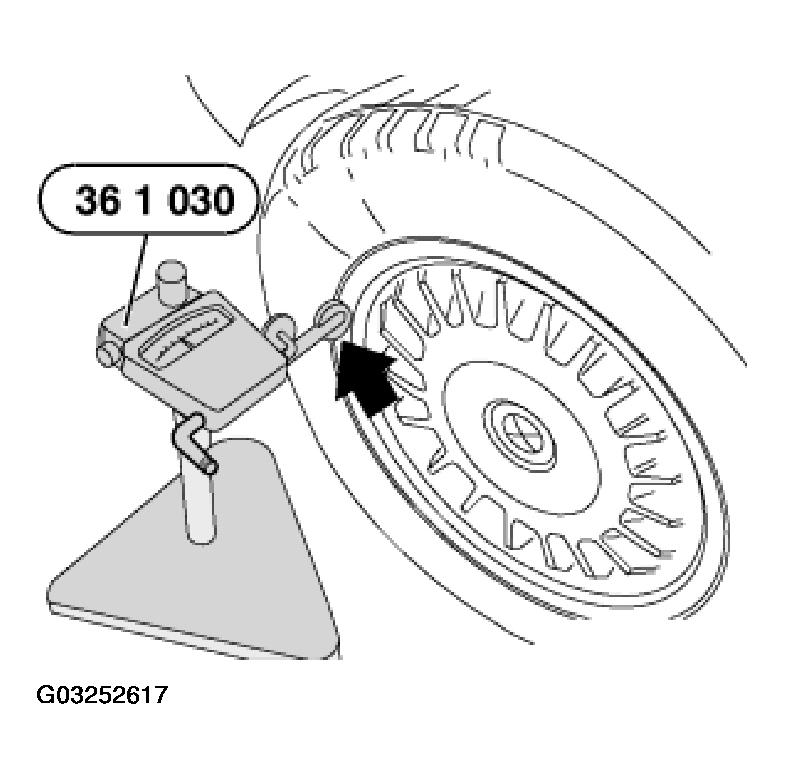

Fig 4: Checking Radial Runout Of Rim With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
