33 3 050 Fixture

NOTE: For removing and installing rubber mount in 20° semi-trailing arm

Series: E28, E30, E53, E83

Storage location: B6, C6

Order number: 33 3 050

Fixture

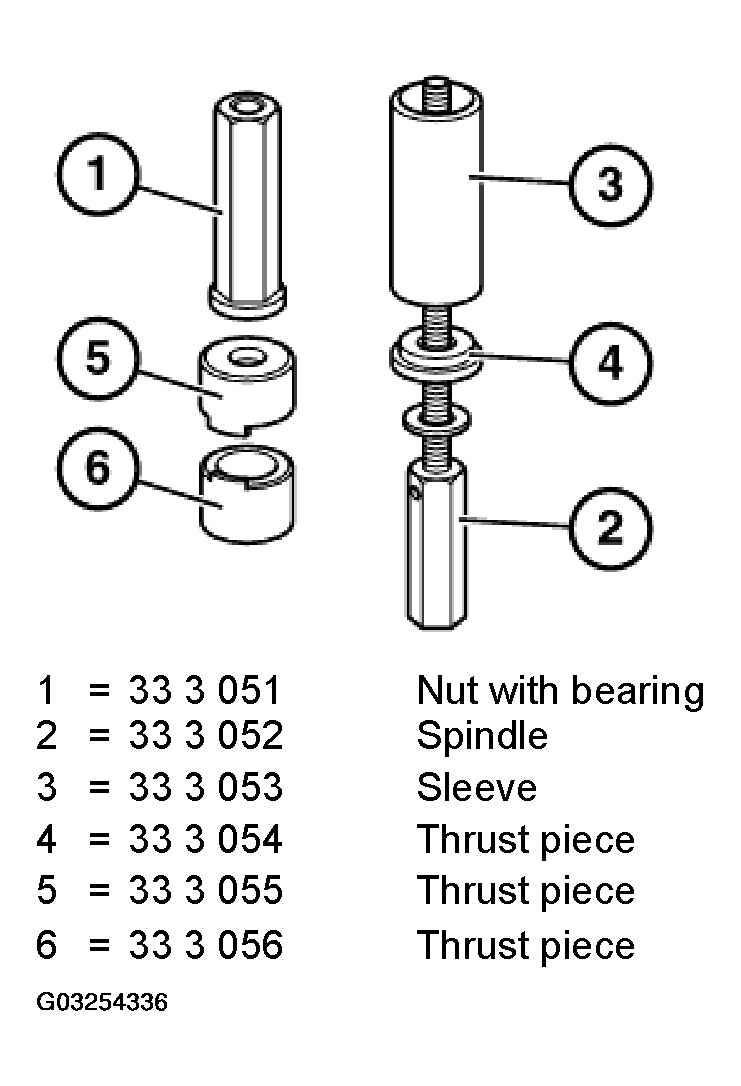

Fig 1: Identifying 33 3 050 Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 33 3 051 Nut with bearing

NOTE: Model series: E28, E30

2 = 33 3 052 Spindle

NOTE: Model series: E28, E30

3 = 33 3 053 Sleeve

NOTE: Model series: E28, E30

4 = 33 3 054 Thrust piece

5 = 33 3 055 Thrust piece

NOTE: Model series: E28, E30 - Model: 518...735

6 = 33 3 056 Thrust piece

NOTE: Model series: E28, E30 - Model: 316...323i
