Minimum set: Mechanical tools

In conjunction with: 33 2 150 (E53)

NOTE: For removing and installing output shaft in drive flange as well as for removing front wheel bearing unit.

Series: E30, E31, E32, E34, E36, E38, E39, E46, E52, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, E91, RR1

Storage location: C13, C14, C38

Order number: 33 2 110

Removal and installation tool

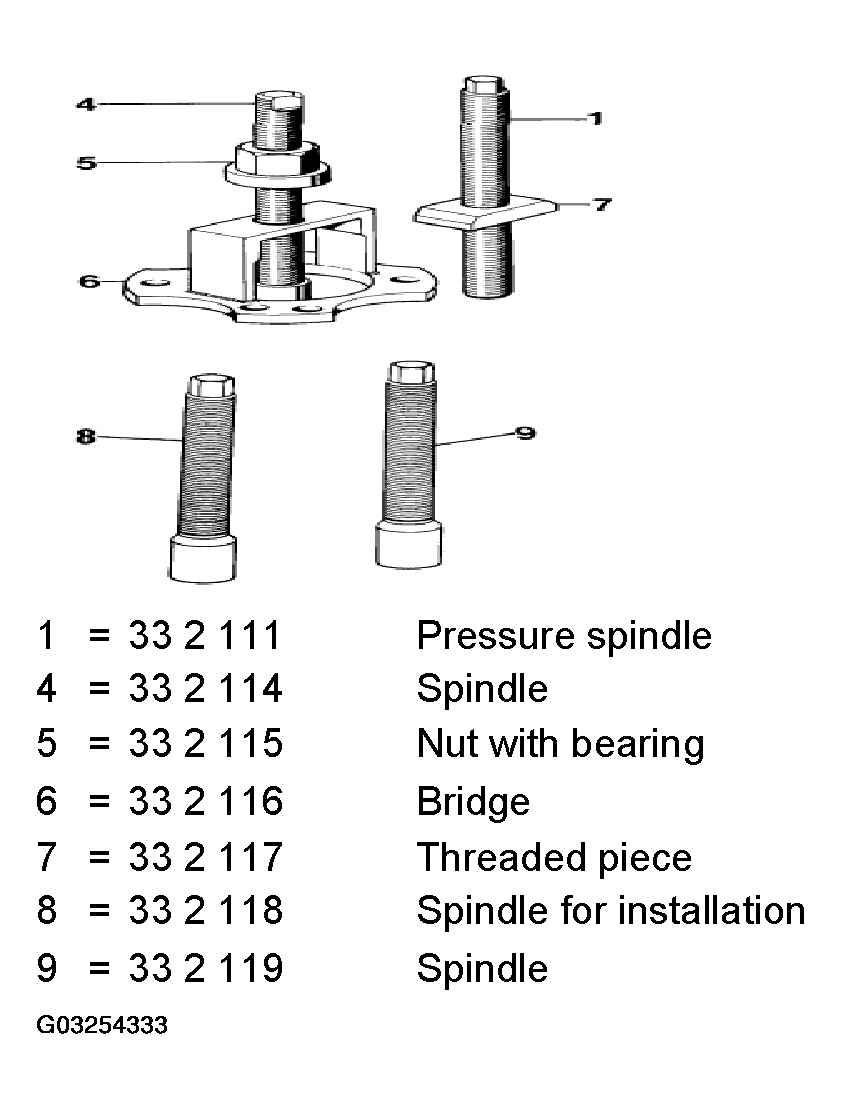

Fig 1: Identifying 33 2 110 Removal And Installation Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 33 2 111 Pressure spindle

NOTE: For pressing out. Model series: E30, E31, E32, E36, E38, E39, E46, E53, E65, E66, E67, E83, E85

4 = 33 2 114 Spindle

NOTE: For installation / model series: E30

5 = 33 2 115 Nut with bearing

NOTE: Model series: E30, E31, E32, E36, E38, E39, E46, E52, E53, E60, E61, E65, E66, E67, E83, E85, RR1

6 = 33 2 116 Bridge

NOTE: New version 09/98 Model series: E30, E31, E32, E36, E38, E39, E46,E52, E53, E60, E61, E65, E66, E67, E83, E85, E90, RR1

7 = 33 2 117 Threaded piece

NOTE: Model series: E30, E31, E32, E36, E38, E39, E46, E53, E65, E66, E67, E83, E85

8 = 33 2 118 Spindle for installation

NOTE: Model series: E31, E52, E53, E60, E61, E65, E66, E67, E83

9 = 33 2 119 Spindle

NOTE: For installation / model series: E36, E46
